CFH-AB

Hexagon Socket on Both Ends
Grease Nipple Built-In Type
(Stud Dia. 12 - 30 mm)
Product Preview

  • Roller

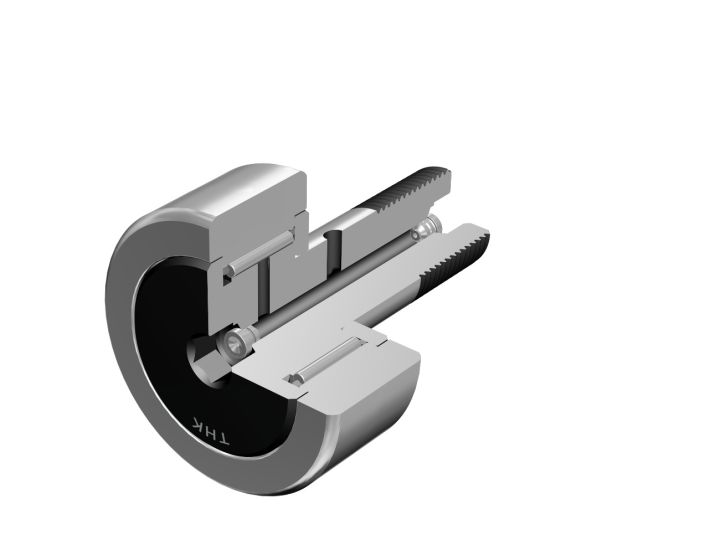

Since the mounting shaft of the stud and the stud head have the eccentricity of between 0.4 mm to 1.0 mm, the position of this Eccentric Cam Follower can easily be fine adjusted by turning the stud, achieving a compact, highly accurate integrated structure. A hexagon socket is provided on both ends of the stud, and a grease nipple is placed inside the stud from the each end.
View specifications and model number coding
Days to Ship
Stud Diameter (mm)
See more
Outer Diameter (mm)
See more
Dust Protection Seal
Outer Ring Shape
Please Log In to see pricing

Don't have an account? Sign up here.

Subtotal: $0.00
  • Stud diameter
    d
    Model No. Main dimensions Basic load rating Maximum
    permissible
    load
    F0
    Track load capacity Rotational speed1 Mass
    Outer diameter
    D
    Outer ring width
    C
    Threaded
    G
    G1 B Overall length
    B1
    B2 C1 Runout
    e
    H rsmin Shoulder height
    f
    (Min.)
    With cage Full rollers Cylindrical outer ring Spherical outer ring With cage Full rollers With cage Full rollers
    Dynamic
    C
    Static
    C0
    Dynamic
    C
    Static
    C0
    mm mm mm mm mm mm mm mm mm mm mm mm mm kN kN kN kN kN kN kN min-1 min-1 g g
    12CFH12‑AB3014M12×1.5131540250.60.460.6207.879.7913.419.89.377.062.45140005800105107
    12CFH12‑1‑AB3214M12×1.5131540250.60.460.6207.879.7913.419.89.377.452.74140005800115117
    16CFH16‑AB3518M16×1.51719.55232.50.80.560.6241218.320.637.617.311.23.14100004500205207
    18CFH18‑AB4020M18×1.51921.55836.50.80.6612614.725.225.251.326.114.43.7285003800295300
    20CFH20‑AB5224M20×1.52125.56640.50.80.7813620.734.833.264.832.123.28.2370003400525530
    20CFH20‑1‑AB4724M20×1.52125.56640.50.80.7813620.734.833.264.832.1217.1570003400450455
    24CFH24‑AB6229M24×1.52530.58049.50.80.8814030.653.246.792.949.534.210.565002900915925
    24CFH24‑1‑AB7229M24×1.52530.58049.50.80.8814030.653.246.792.949.539.812.96500290011501160
    30CFH30‑AB8035M30×1.532371006311814645.487.667.614573.752.614.95000230018801890
    30CFH30‑1‑AB8535M30×1.532371006311814645.487.667.614573.75616.15000230019501960
    30CFH30‑2‑AB9035M30×1.532371006311814645.487.667.614573.759.317.35000230020002010
    Note 1: The rotational speed limit value in the table applies to models that have no seal. With those attached with seals, up to 70% of this value is permitted.
    For more detailed specifications, please download the Product Catalog with the link in the Downloads section of this product page.
  • Model Size1 Material Seals Outer ring shape Type
    CFH 12     R - AB
    CFH 3~30-2 No symbol : Carbon steel No symbol : Without seals No symbol : Cylindrical No symbol : Driver groove on head of stud
      M : Stainless steel UU : With seals R : Spherical A : Hexagonal socket on head of stud
    AB : Hexagonal socket on both ends
    Note 1: Available sizes 12~30 for model CFH-AB, 12~20 for model CFH-M-AB, 5~10 for model CFH-A, 6~10 for model CFH-A-M, CFH, and CFH-M
