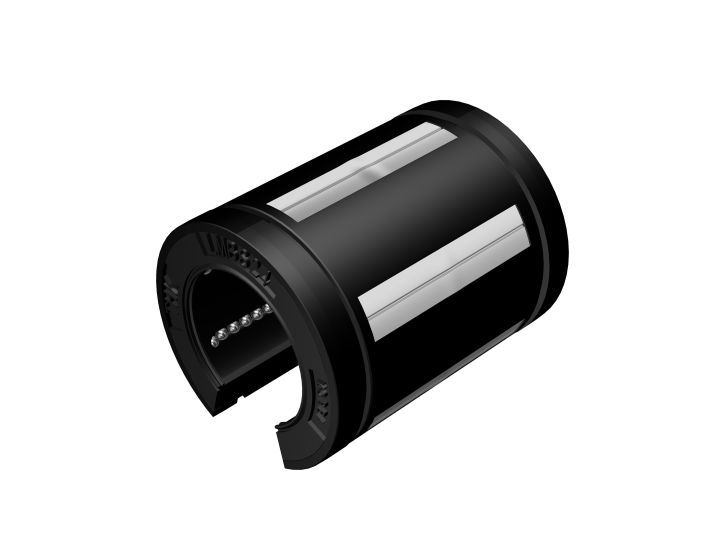

LMBS-OP

Open Type

  • Quick Ship ?
One ball circuit is removed from outer sleeve to be used with bottom supported shaft for deflection free movement. This open type also has self alignment and clearance adjustment.
View specifications and model number coding
Days to Ship
For Shaft O.D. (Inch)
See more
Dust Protection Seal
Please Log In to see pricing

Don't have an account? Sign up here.

Attributes Part Number Unit Price Quantity Days to Ship Include Shaft Item Total
For Shaft O.D. (Inch):1/2
Dust Protection Seal:No Seal
LMBS8-OP Days to Ship:1 - 3 days
For Shaft O.D. (Inch):1/2
Dust Protection Seal:With Seal
LMBS8UU-OP Days to Ship:1 - 3 days
For Shaft O.D. (Inch):5/8
Dust Protection Seal:No Seal
LMBS10-OP Days to Ship:1 - 3 days
For Shaft O.D. (Inch):5/8
Dust Protection Seal:With Seal
LMBS10UU-OP Days to Ship:1 - 3 days
For Shaft O.D. (Inch):3/4
Dust Protection Seal:No Seal
LMBS12-OP Days to Ship:1 - 3 days
For Shaft O.D. (Inch):3/4
Dust Protection Seal:With Seal
LMBS12UU-OP Days to Ship:1 - 3 days
For Shaft O.D. (Inch):1
Dust Protection Seal:No Seal
LMBS16-OP Days to Ship:1 - 3 days
For Shaft O.D. (Inch):1
Dust Protection Seal:With Seal
LMBS16UU-OP Days to Ship:1 - 3 days
For Shaft O.D. (Inch):1 1/4
Dust Protection Seal:No Seal
LMBS20-OP Days to Ship:1 - 3 days
For Shaft O.D. (Inch):1 1/4
Dust Protection Seal:With Seal
LMBS20UU-OP Days to Ship:1 - 3 days
For Shaft O.D. (Inch):1 1/2
Dust Protection Seal:No Seal
LMBS24-OP Days to Ship:1 - 3 days
For Shaft O.D. (Inch):1 1/2
Dust Protection Seal:With Seal
LMBS24UU-OP Days to Ship:1 - 3 days
For Shaft O.D. (Inch):2
Dust Protection Seal:No Seal
LMBS32-OP Days to Ship:1 - 3 days
For Shaft O.D. (Inch):2
Dust Protection Seal:With Seal
LMBS32UU-OP Days to Ship:1 - 3 days
Subtotal: $0.00

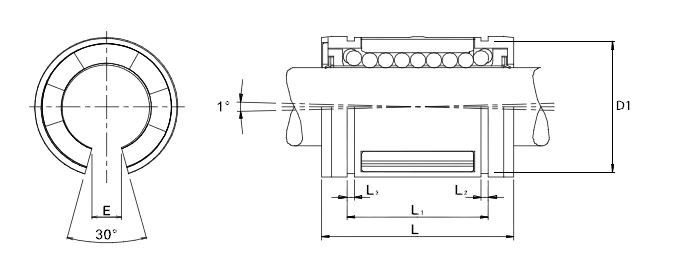

  • Model No. Ball rows Main dimensions Basic load rating Mass
    Inscribed bore diameter Outer diameter D1 L L1 L2 E Dynamic
    C
    Static
    C0
    in in in in in in in lbf lbf lbs
    LMBS8(UU)OP3 1/2 0.8755/0.8750 0.82091.250/1.2301.032/1.0120.0500.322101900.03
    LMBS10(UU)OP45/8 1.1255/1.12501.05911.500/1.4801.105/1.0950.0560.383203400.06
    LMBS12(UU)OP53/4 1.2505/1.25001.17601.625/1.6051.270/1.2500.0560.435104300.11
    LMBS16(UU)OP51 1.5630/1.56251.46892.250/2.2301.884/1.8640.0700.568307800.21
    LMBS20(UU)OP51 1/4 2.0008/2.00001.88582.625/2.6002.004/1.9840.0680.63124012700.35
    LMBS24(UU)OP51 1/2 2.3760/2.37502.23903.000/2.9702.410/2.3900.0860.75151015400.67
    LMBS32(UU)OP52 3.0010/3.00002.83824.000/3.9603.193/3.1630.1051.00223025801.10
    For more detailed specifications, please download the Product Catalog with the link in the Downloads section of this product page.
  • Model Size1 Seals Type
    LMBS 24 UU -OP
    LMBS 4 : for 1/4" dia. shaft UU No symbol : standard
      6 : for 3/8" dia. shaft   -OP : open
      8 : for 1/2" dia. shaft
      10 : for 5/8" dia. shaft
      12 : for 3/4" dia. shaft
      16 : for 1" dia. shaft
      20 : for 1 1/4" dia. shaft
      24 : for 1 1/2" dia. shaft
      32 : for 2" dia. shaft
    Note 1: Size 4 and 6 not available for open type
