    FTW

    Two Rows

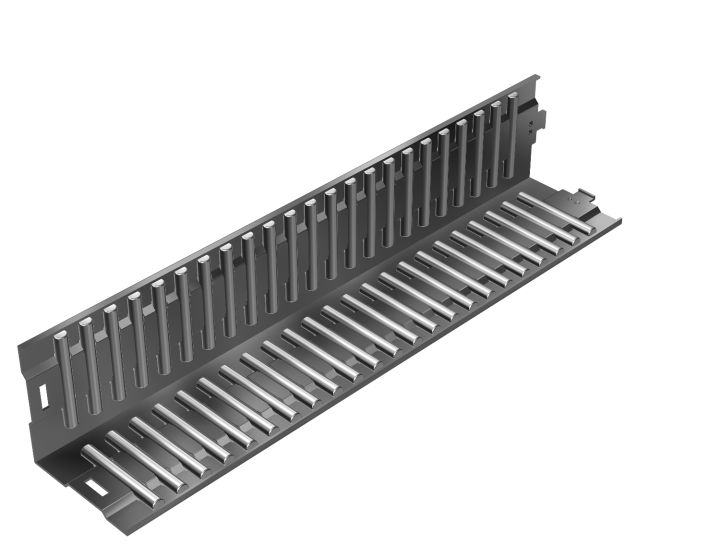

    main product photo
    Multiple rows of rollers are arranged at 90 degree

    Downloads - Log In required

    Hide Filters Show Filters
    Shopping Options
    Days to Ship Clear
    Width (mm) Clear
    9. show 3 more show less
    Don't have an account? Sign up here.
    In stock
    Loading...
    *Please contact THK if you need more than available quantity or out of stock items
    Attributes Part Number Online Store
    Unit Price (USD)    		 Quantity Days to Ship Item Total
    Width (mm): 30
    		FTW4030V-150L –
    		Days to Ship: 3 - 4 weeks
    Width (mm): 35
    		FTW5035V-250L –
    		Days to Ship: 3 - 4 weeks
    Width (mm): 45
    		FTW5045-250L –
    		Days to Ship: 3 - 4 weeks
    Width (mm): 50
    		FTW5050-250L –
    		Days to Ship: 3 - 4 weeks
    Width (mm): 22.4
    		FTW6022.4-320L –
    		Days to Ship: 3 - 4 weeks
    Width (mm): 36
    		FTW10036V-380L –
    		Days to Ship: 3 - 4 weeks
    Width (mm): 43.5
    		FTW10043.5V-380L –
    		Days to Ship: 3 - 4 weeks
    Width (mm): 70
    		FTW10070V-500L –
    		Days to Ship: 3 - 4 weeks
    Related Products
    1. FT
      FT
    Model No. Main dimensions Roller dimensions No.ofrollersZ Basic load rating Mass
    Widthb  b1 Lengthl LengthB DiameterDa PitchP DynamicC StaticC0
    mm mm mm mm mm mm kN kN g
    FTW4030V-150L3024.51502.82822.8622×25922094
    FTW5045-250L4535.5250532.811.121×2142548410
    FTW5050-250L5040.5250537.81023×2160634460
    FTW5035V-250L35292503.53526.8733×2102411220
    FTW6022.4-320L22.414.4320612.81916×253141180
    FTW10036V-380L3626.63807.071251623×2149507700
    FTW10043.5V-380L43.5343807.07131.81623×2182660845
    FTW10070V-500L7056.55007.07152.813.535×239418041790
    For more detailed specifications, please download the Product Catalog with the link in the Downloads section of this product page.
    Model Size*1 Length*1
    FTW 5050 - 250L
    FTW Various Length in millimeters then "L"
    Note 1: see the Specifications tab for standard sizes and lengths

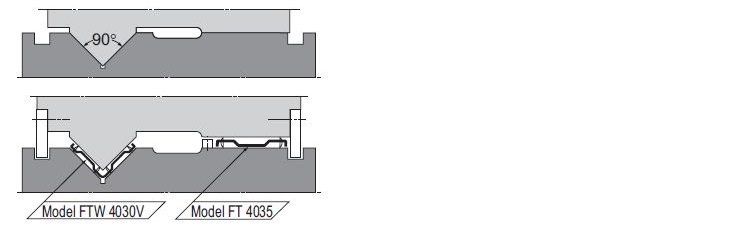

    Example of combinations

    90°V surface Flat surface
    Model No. Roller diameterDa Model No. Roller diameterDa
    FTW 4030V 2.828 FT 4030 4
    FTW 4030V 2.828 FT 4035 4
    FTW 5035V 3.535 FT 5038 5
    FTW 5035V 3.535 FT 5043 5
    FTW 5045 5 FT 10060V 7.071
    FTW 5050 5 FT 10060V 7.071
    FTW 10070V 7.071 FT 10080 10
     Note) The roller diameter (Da) for model numbers containing symbol V at the end represents the value 1/√2 times that of types for the same model number with no symbol. The diameter of the roller to be combined with 90°V surface will be 1/√2 times that of the roller on the flat surface. For example, when using model FT4035 (roller diameter: Ø4) on the flat surface, use model FTW4030V (roller diameter: Ø2.828) on the V surface. Performance of the Flat Roller is significantly affected by the contact state of the upper and lower raceways. You can check the fit before installing the Flat Roller by designing the raceways as indicated in the figure above.
