Toggle Nav

LMCK-L

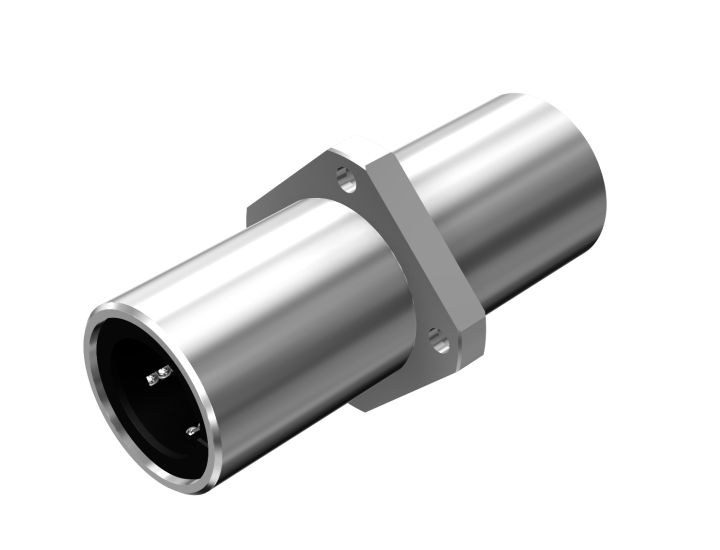

Center Flange, Long Type
Since a flange is installed in the center for this type and work can be attached close to the center of the linear bushing unit, both load and space are distributed on both sides of the flange in a balanced manner. This is a good solution for when you want to make the stroke equal on the left and right.

Downloads - Log In required

Hide Filters Show Filters
Shopping Options
Days to Ship Clear
For Shaft O.D. (mm) Clear
  1. show 3 more show less
Dust Protection Seal Clear
In stock
Loading...
*Please contact THK if you need more than available quantity or out of stock items
Attributes Part Number Online Store
Unit Price (USD)
Quantity Days to Ship Include Shaft Item Total
For Shaft O.D. (mm): 6
Dust Protection Seal: No Seal
LMCK6L
Days to Ship: 3 - 4 weeks
For Shaft O.D. (mm): 6
Dust Protection Seal: With Seal
LMCK6LUU
Days to Ship: 3 - 4 weeks
For Shaft O.D. (mm): 8
Dust Protection Seal: No Seal
LMCK8L
Days to Ship: 3 - 4 weeks
For Shaft O.D. (mm): 8
Dust Protection Seal: With Seal
LMCK8LUU
Days to Ship: 3 - 4 weeks
For Shaft O.D. (mm): 10
Dust Protection Seal: No Seal
LMCK10L
Days to Ship: 3 - 4 weeks
For Shaft O.D. (mm): 10
Dust Protection Seal: With Seal
LMCK10LUU
Days to Ship: 3 - 4 weeks
For Shaft O.D. (mm): 12
Dust Protection Seal: No Seal
LMCK12L
Days to Ship: 3 - 4 weeks
For Shaft O.D. (mm): 12
Dust Protection Seal: With Seal
LMCK12LUU
For Shaft O.D. (mm): 13
Dust Protection Seal: No Seal
LMCK13L
Days to Ship: 3 - 4 weeks
For Shaft O.D. (mm): 13
Dust Protection Seal: With Seal
LMCK13LUU
Days to Ship: 3 - 4 weeks
For Shaft O.D. (mm): 16
Dust Protection Seal: No Seal
LMCK16L
Days to Ship: 3 - 4 weeks
For Shaft O.D. (mm): 16
Dust Protection Seal: With Seal
LMCK16LUU
Days to Ship: 3 - 4 weeks
For Shaft O.D. (mm): 20
Dust Protection Seal: No Seal
LMCK20L
Days to Ship: 3 - 4 weeks
For Shaft O.D. (mm): 20
Dust Protection Seal: With Seal
LMCK20LUU
For Shaft O.D. (mm): 25
Dust Protection Seal: No Seal
LMCK25L
Days to Ship: 3 - 4 weeks
For Shaft O.D. (mm): 25
Dust Protection Seal: With Seal
LMCK25LUU
Days to Ship: 3 - 4 weeks
Model No. Ball rows Main dimensions Flange
perpen-dicularity
Eccentricity
(max)
Radial clearance
tolerance
Basic load rating Mass

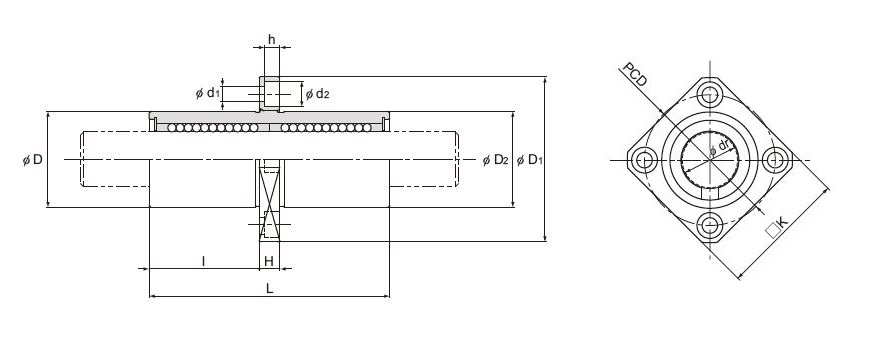

Inscribed bore diameter Outer diameter Overall length Flange diameter Pilot D2 H K PCD Mounting holed1×d2×h Dynamic
C
Static
C0
dr Tolerance D Tolerance L Tolerance D1 Tolerance I Tolerance
mm mm mm mm mm mm mm mm mm mm µm µm µm N N g
LMCK6L 4 6 0-0.010 12 0-0.013 35 ±0.3 28 0-0.2 15 ±0.2 12 15 22 20 3.4×6×3.3 12 12 -5 324 529 25
LMCK8L 4 8 15 45 32 20 15 20 25 24 3.4×6×3.3 12 12 -5 431 784 39
LMCK10L 4 10 19 0-0.016 55 39 24.5 19 24.5 30 29 4.5×7.5×4.4 12 12 -5 588 1100 69
LMCK12L 4 12 21 57 42 25.5 21 25.5 32 32 4.5×7.5×4.4 12 12 -5 657 1200 78
LMCK13L 4 13 23 61 43 27.5 23 27.5 34 33 4.5×7.5×4.4 12 12 -7 814 1570 101
LMCK16L 5 16 28 70 48 32 28 32 37 38 4.5×7.5×4.4 12 12 -7 1230 2350 174
LMCK20L 5 20 0-0.012 32 0-0.019 80 54 36 32 36 42 43 5.5×9×5.4 15 15 -9 1400 2750 210
LMCK25L 6 25 40 112 62 52 40 52 50 51 5.5×9×5.4 15 15 -9 1560 3140 461
For more detailed specifications, please download the Product Catalog with the link in the Downloads section of this product page.
Model Size Material Type Seals
LMCK 13     UU
LMF : Round flange 6 No symbol : Carbon steel case with resin retainers No symbol : Normal length No symbol : No seals
LMIF : Round reversed flange 8 M : Stainless steel case with resin retainers L : Long length UU : With seals
LMCF : Round center flange 10
LMK : Square flange 12
LMIK : Square reversed flange 13
LMCK : Square center flange 16
LMH : Cut flange 20
LMIH : Cut reversed flange 25
LMCH : Cut center flange
