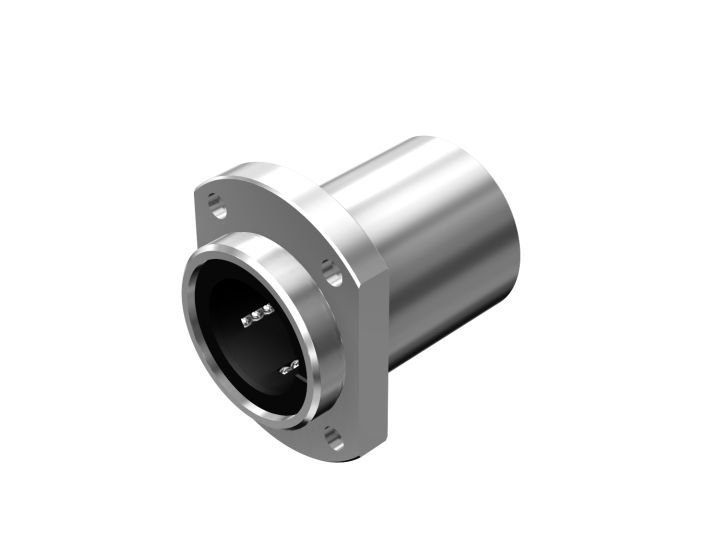

LMIH

With Pilot End
Since the fitted part is short, the linear bushing tends not to protrude into the other side, so space is saved on the side opposite the mounting.

Downloads - Log In required

Hide Filters Show Filters
Shopping Options
Days to Ship Clear
For Shaft O.D. (mm) Clear
  1. show 3 more show less
Dust Protection Seal Clear
In stock
Loading...
*Please contact THK if you need more than available quantity or out of stock items
Attributes Part Number Online Store
Unit Price (USD)
Quantity Days to Ship Include Shaft Item Total
For Shaft O.D. (mm): 6
Dust Protection Seal: No Seal
LMIH6
Days to Ship: 3 - 4 weeks
For Shaft O.D. (mm): 6
Dust Protection Seal: With Seal
LMIH6UU
Days to Ship: 3 - 4 weeks
For Shaft O.D. (mm): 8
Dust Protection Seal: No Seal
LMIH8
Days to Ship: 3 - 4 weeks
For Shaft O.D. (mm): 8
Dust Protection Seal: With Seal
LMIH8UU
Days to Ship: 3 - 4 weeks
For Shaft O.D. (mm): 10
Dust Protection Seal: No Seal
LMIH10
Days to Ship: 3 - 4 weeks
For Shaft O.D. (mm): 10
Dust Protection Seal: With Seal
LMIH10UU
Days to Ship: 3 - 4 weeks
For Shaft O.D. (mm): 12
Dust Protection Seal: No Seal
LMIH12
Days to Ship: 3 - 4 weeks
For Shaft O.D. (mm): 12
Dust Protection Seal: With Seal
LMIH12UU
Days to Ship: 3 - 4 weeks
For Shaft O.D. (mm): 13
Dust Protection Seal: No Seal
LMIH13
Days to Ship: 3 - 4 weeks
For Shaft O.D. (mm): 13
Dust Protection Seal: With Seal
LMIH13UU
Days to Ship: 3 - 4 weeks
For Shaft O.D. (mm): 16
Dust Protection Seal: No Seal
LMIH16
Days to Ship: 1 - 3 days
For Shaft O.D. (mm): 16
Dust Protection Seal: With Seal
LMIH16UU
Days to Ship: 3 - 4 weeks
For Shaft O.D. (mm): 20
Dust Protection Seal: No Seal
LMIH20
Days to Ship: 3 - 4 weeks
For Shaft O.D. (mm): 20
Dust Protection Seal: With Seal
LMIH20UU
Days to Ship: 3 - 4 weeks
For Shaft O.D. (mm): 25
Dust Protection Seal: No Seal
LMIH25
Days to Ship: 3 - 4 weeks
For Shaft O.D. (mm): 25
Dust Protection Seal: With Seal
LMIH25UU
Days to Ship: 3 - 4 weeks

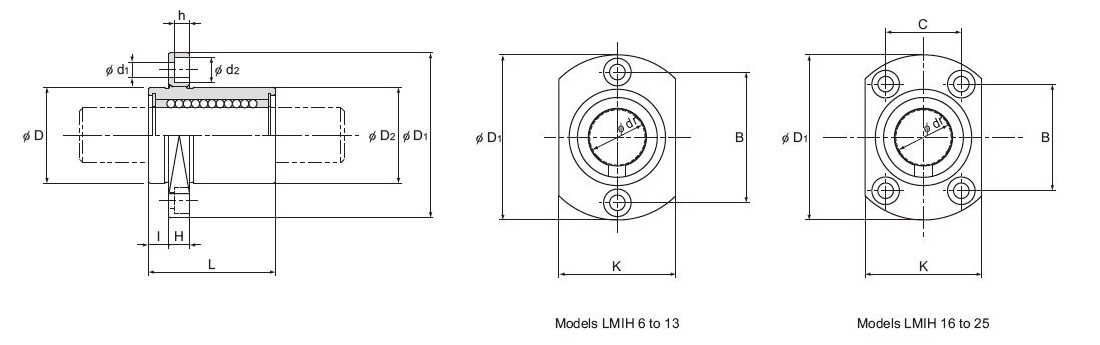

Model No. Ball rows Main dimensions Flange
perpen-dicularity
Eccentricity
(max)
Radial clearance
tolerance
Basic load rating Mass
Inscribed bore diameter Outer diameter Overall length Flange diameter Pilot D2 H K B C Mounting holed1×d2×h Dynamic
C
Static
C0
dr Tolerance D Tolerance L Tolerance D1 Tolerance I Tolerance
mm mm mm mm mm mm mm mm mm mm mm µm µm µm N N g
LMIH6 4 6 0-0.009 12 0-0.011 19 ±0.3 28 0-0.2 5 ±0.2 12 5 18 20 — 3.4×6×3.3 12 12 -5 206 265 20
LMIH8 4 8 15 24 32 5 15 5 21 24 — 3.4×6×3.3 12 12 -5 265 402 29
LMIH10 4 10 19 0-0.013 29 39 6 19 6 25 29 — 4.5×7.5×4.4 12 12 -5 373 549 50
LMIH12 4 12 21 30 42 6 21 6 27 32 — 4.5×7.5×4.4 12 12 -5 412 598 57
LMIH13 4 13 23 32 43 6 23 6 29 33 — 4.5×7.5×4.4 12 12 -7 510 775 70
LMIH16 5 16 28 37 48 6 28 6 34 31 22 4.5×7.5×4.4 12 12 -7 775 1180 111
LMIH20 5 20 0-0.010 32 0-0.016 42 54 8 32 8 38 36 24 5.5×9×5.4 15 15 -9 863 1370 140
LMIH25 6 25 40 59 62 8 40 8 46 40 32 5.5×9×5.4 15 15 -9 980 1570 276
For more detailed specifications, please download the Product Catalog with the link in the Downloads section of this product page.
Model Size Material Type Seals
LMIH 13     UU
LMF : Round flange 6 No symbol : Carbon steel case with resin retainers No symbol : Normal length No symbol : No seals
LMIF : Round reversed flange 8 M : Stainless steel case with resin retainers L : Long length UU : With seals
LMCF : Round center flange 10
LMK : Square flange 12
LMIK : Square reversed flange 13
LMCK : Square center flange 16
LMH : Cut flange 20
LMIH : Cut reversed flange 25
LMCH : Cut center flange
