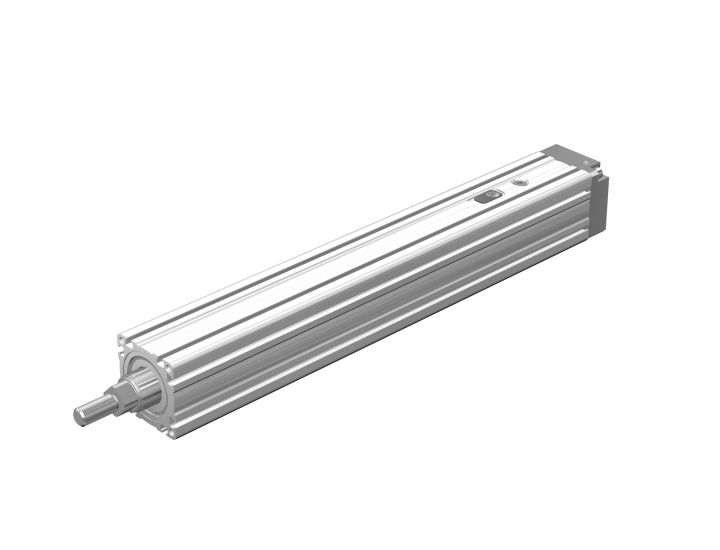

Cylinder Type of light-weight and cost effective actuator
Hide Filters Show Filters
Shopping Options
Days to Ship Clear
Size Clear
Ball Screw Lead (mm) Clear
Stroke (mm) Clear
  1. show 1 more show less
In stock
Loading...
Page
*Please contact THK if you need more than available quantity or out of stock items
Attributes Part Number Online Store
Unit Price (USD)
Quantity Days to Ship Item Total
Size: 35
Ball Screw Lead (mm): 6
Stroke (mm): 50
VLACT35-06-0050-0-0N
Days to Ship: 3 - 4 weeks
Size: 35
Ball Screw Lead (mm): 6
Stroke (mm): 100
VLACT35-06-0100-0-0N
Days to Ship: 3 - 4 weeks
Size: 35
Ball Screw Lead (mm): 6
Stroke (mm): 150
VLACT35-06-0150-0-0N
Days to Ship: 3 - 4 weeks
Size: 35
Ball Screw Lead (mm): 12
Stroke (mm): 50
VLACT35-12-0050-0-0N
Days to Ship: 3 - 4 weeks
Size: 35
Ball Screw Lead (mm): 12
Stroke (mm): 100
VLACT35-12-0100-0-0N
Days to Ship: 3 - 4 weeks
Size: 35
Ball Screw Lead (mm): 12
Stroke (mm): 150
VLACT35-12-0150-0-0N
Days to Ship: 3 - 4 weeks
Size: 45
Ball Screw Lead (mm): 6
Stroke (mm): 50
VLACT45-06-0050-0-0N
Days to Ship: 3 - 4 weeks
Size: 45
Ball Screw Lead (mm): 6
Stroke (mm): 100
VLACT45-06-0100-0-0N
Days to Ship: 3 - 4 weeks
Size: 45
Ball Screw Lead (mm): 6
Stroke (mm): 150
VLACT45-06-0150-0-0N
Days to Ship: 3 - 4 weeks
Size: 45
Ball Screw Lead (mm): 6
Stroke (mm): 200
VLACT45-06-0200-0-0N
Days to Ship: 3 - 4 weeks
Size: 45
Ball Screw Lead (mm): 12
Stroke (mm): 50
VLACT45-12-0050-0-0N
Days to Ship: 3 - 4 weeks
Size: 45
Ball Screw Lead (mm): 12
Stroke (mm): 100
VLACT45-12-0100-0-0N
Days to Ship: 3 - 4 weeks
Size: 45
Ball Screw Lead (mm): 12
Stroke (mm): 150
VLACT45-12-0150-0-0N
Days to Ship: 3 - 4 weeks
Size: 45
Ball Screw Lead (mm): 12
Stroke (mm): 200
VLACT45-12-0200-0-0N
Days to Ship: 3 - 4 weeks
Size: 55
Ball Screw Lead (mm): 6
Stroke (mm): 50
VLACT55-06-0050-0-0N
Days to Ship: 3 - 4 weeks
Size: 55
Ball Screw Lead (mm): 6
Stroke (mm): 100
VLACT55-06-0100-0-0N
Days to Ship: 3 - 4 weeks
Size: 55
Ball Screw Lead (mm): 6
Stroke (mm): 150
VLACT55-06-0150-0-0N
Days to Ship: 3 - 4 weeks
Size: 55
Ball Screw Lead (mm): 6
Stroke (mm): 200
VLACT55-06-0200-0-0N
Days to Ship: 3 - 4 weeks
Size: 55
Ball Screw Lead (mm): 6
Stroke (mm): 250
VLACT55-06-0250-0-0N
Days to Ship: 3 - 4 weeks
Size: 55
Ball Screw Lead (mm): 6
Stroke (mm): 300
VLACT55-06-0300-0-0N
Days to Ship: 3 - 4 weeks
Page
Model No. VLACT35 (30W) VLACT45 (50W) VLACT55 (100W)
Ball screw lead mm 12 6 12 6 12 6
Ball screw shaft diameter mm 8 12
Rated speed1 mm/s 600 300 600 300 600 300
Rated thrust N 40 80 67 134 134 267
Maximum thrust N 120 240 201 402 402 804
Maximum acceleration G 0.3
Horizontal mass capacity2,3 kg 4 8 7 14 25 40
Vertical mass capacity3 kg 1.9 3.8 3 6 6 10
Positioning repeatability mm ±0.02
Motor wattage5 W 30 50 100
Motor rated torque5 N-m 0.095 0.158 0.318
Rod diameter mm Ø16 Ø20 Ø25
Available stroke mm 50/100/150 50/100/150/200 50/100/150/200/250/300
Service life in distance traveled4 km 5000

Note 1: The rated speed is 470mm/s for the high-speed type and 235mm/s for the medium-speed type of model CT55 with a 300mm stroke, according to the critical speed of the Ball Screw. With shorter strokes, model CT55 can operate at up to 500mm/s for the medium-speed type or up to 1,000mm/s for the high-speed type. However, the service life may be shortened. Note 2: Model CT is capable of receiving only an axial load. The horizontal mass capacity is the value when an LM Guide is also used and no axial load is applied to the rod. When making a selection, take into account the sliding resistance of the LM Guide. For specific sliding resistances of LM Guides, see the general catalog. Note 3: The values apply at acceleration of 0.3G. Note 4: The specifications apply to the actuator mounted with each size of a standard motor in page 14. If a different motor is used, the actuator's specifications are different. Also note that the rated values of the actuator unit must not be exceeded. Note 5: The value applies when the actuator receives a load and operates at the rated speed and acceleration of 0.3G.

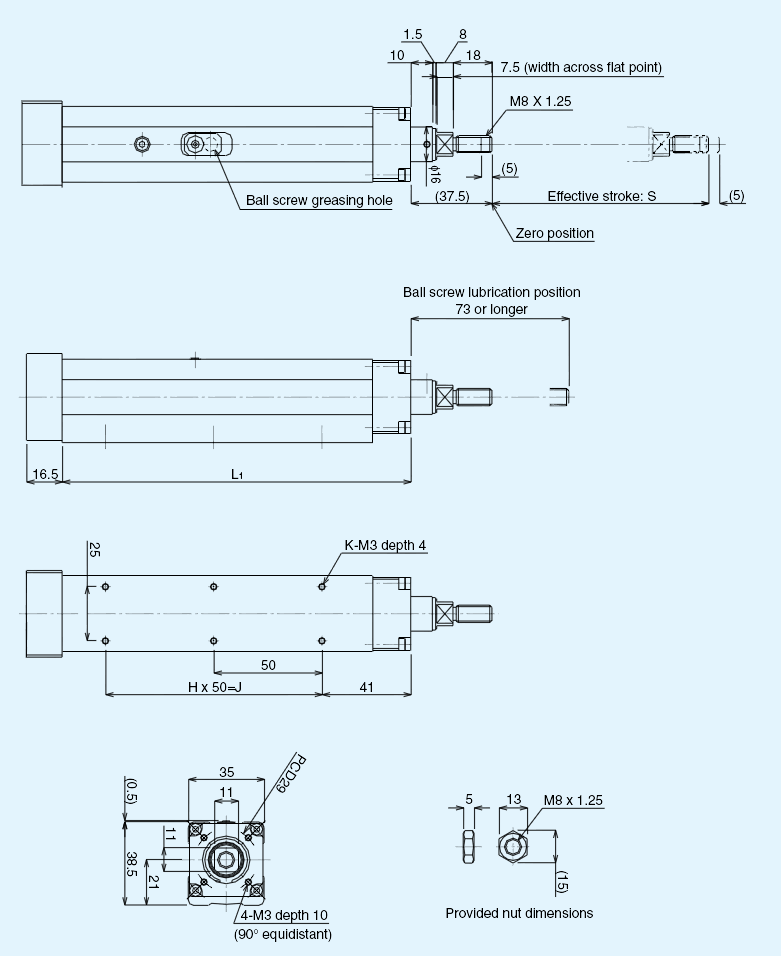

Unit: mm
VLACT35 Stroke Effective stroke L L1 C n Mass : kg
0050 50 177.5 161 100 6 0.7
0100 100 277.5 211 150 8 0.9
0150 150 277.5 261 200 10 1.0
Unit: mm

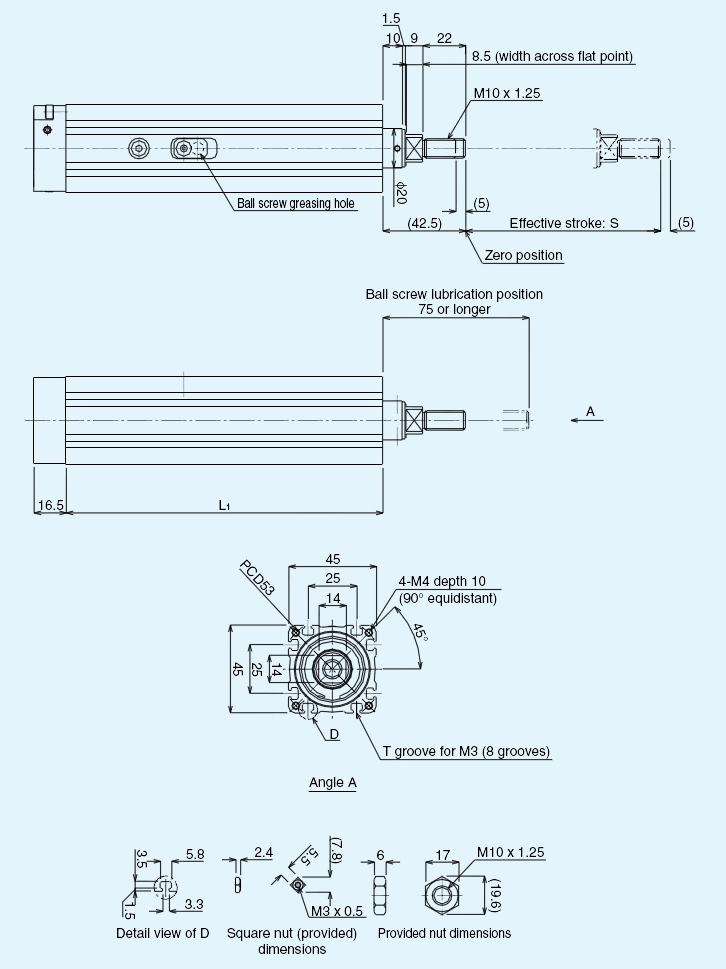

VLACT45 Stroke Effective stroke L L1 Mass : kg
0050 50 179 162.5 1.1
0100 100 229 212.5 1.4
0150 150 279 262.5 1.6
0200 200 329 312.5 1.9
Unit: mm

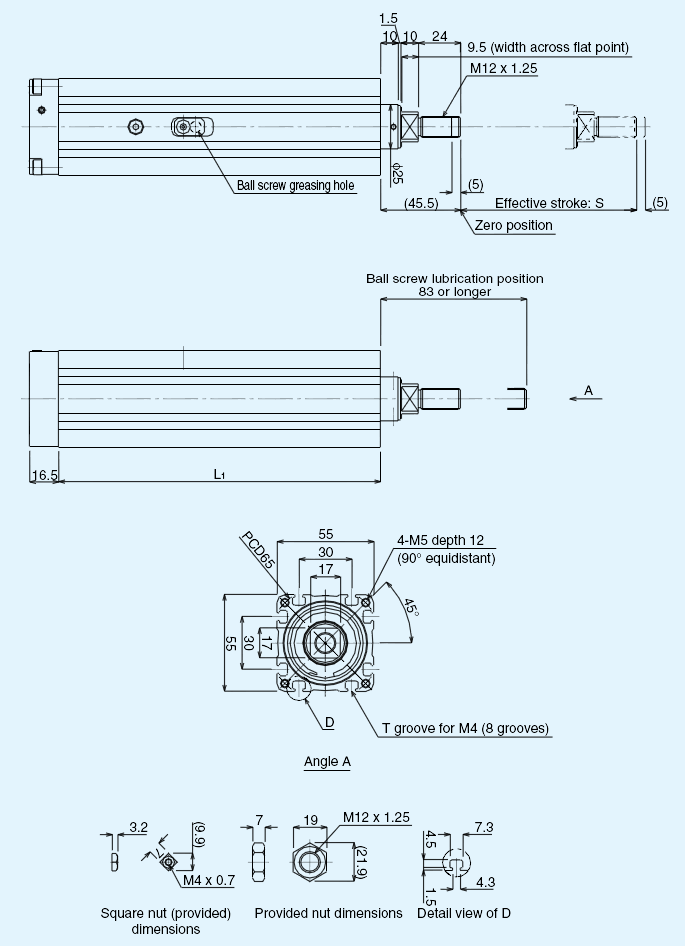

VLACT55 Stroke Effective stroke L L1 Mass : kg
0050 50 199.5 183 1.7
0100 100 249 233 2.1
0150 150 299.5 283 2.5
0200 200 349.5 333 2.8
0250 250 399.5 383 3.2
0300 300 449.5 433 3.6
For more detailed specifications, please download the Product Catalog with the link in the Downloads section of this product page.
Model Size Ball screw lead Stroke Motor Sensor and options
VLACT 35 - 06 - 0050 - 0 - 0N
VLACT 35 : 35mm width 06 : 6mm 0050 Stroke : 50mm N : No motor 0N : No sensor or flange
45 : 45mm width 12 : 12mm 0100 Stroke : 100mm
55 : 55mm width 0150 Stroke : 150mm
0200 Stroke : 200mm
0250 Stroke : 250mm
0300 Stroke : 300mm

The above selections are Online Store standards. If you need a selection that differs from the standard, please contact us at [email protected]
