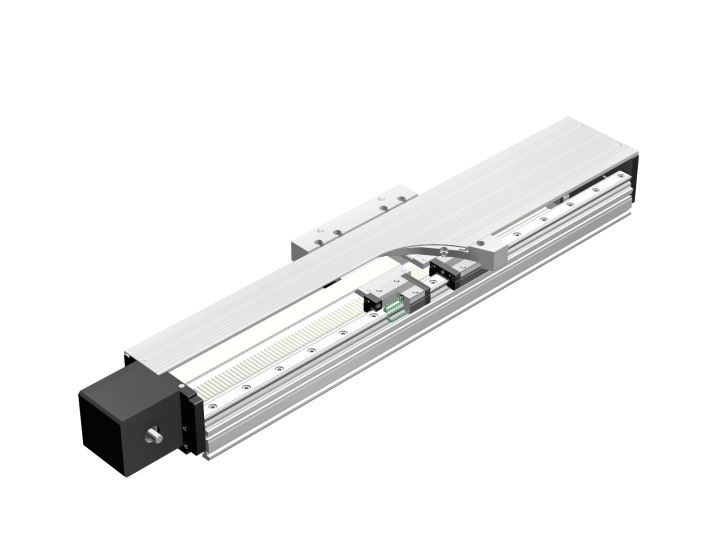

GL-N-B

Belt Drive
Lightweight, high rigidity aluminum base with Caged Ball LM Guides has been utilized for the guide portion.
Hide Filters Show Filters
Shopping Options
Days to Ship Clear
Size Clear
Stroke (mm) Clear
  1. show 11 more show less
Motor Bracket Symbol Clear
In stock
Loading...
Page
*Please contact THK if you need more than available quantity or out of stock items
Attributes Part Number Online Store
Unit Price (USD)
Quantity Days to Ship Item Total
Size: 15
Stroke (mm): 426
GL15N-070-HV-EH-B1-C-N-N-Y
Days to Ship: Contact Us
Size: 15
Stroke (mm): 426
GL15N-070-HV-EH-B2-C-N-N-Y
Days to Ship: Contact Us
Size: 15
Stroke (mm): 426
GL15N-070-HV-EH-U1-C-N-N-Y
Days to Ship: Contact Us
Size: 15
Stroke (mm): 546
GL15N-082-HV-EH-B1-C-N-N-Y
Days to Ship: Contact Us
Size: 15
Stroke (mm): 546
GL15N-082-HV-EH-B2-C-N-N-Y
Days to Ship: Contact Us
Size: 15
Stroke (mm): 546
GL15N-082-HV-EH-U1-C-N-N-Y
Days to Ship: Contact Us
Size: 15
Stroke (mm): 786
GL15N-106-HV-EH-B1-C-N-N-Y
Days to Ship: Contact Us
Size: 15
Stroke (mm): 786
GL15N-106-HV-EH-B2-C-N-N-Y
Days to Ship: Contact Us
Size: 15
Stroke (mm): 786
GL15N-106-HV-EH-U1-C-N-N-Y
Days to Ship: Contact Us
Size: 15
Stroke (mm): 966
GL15N-124-HV-EH-B1-C-N-N-Y
Days to Ship: Contact Us
Size: 15
Stroke (mm): 966
GL15N-124-HV-EH-B2-C-N-N-Y
Days to Ship: Contact Us
Size: 15
Stroke (mm): 966
GL15N-124-HV-EH-U1-C-N-N-Y
Days to Ship: Contact Us
Size: 15
Stroke (mm): 1146
GL15N-142-HV-EH-B1-C-N-N-Y
Days to Ship: Contact Us
Size: 15
Stroke (mm): 1146
GL15N-142-HV-EH-B2-C-N-N-Y
Days to Ship: Contact Us
Size: 15
Stroke (mm): 1146
GL15N-142-HV-EH-U1-C-N-N-Y
Days to Ship: Contact Us
Size: 15
Stroke (mm): 1326
GL15N-160-HV-EH-B1-C-N-N-Y
Days to Ship: Contact Us
Size: 15
Stroke (mm): 1326
GL15N-160-HV-EH-B2-C-N-N-Y
Days to Ship: Contact Us
Size: 15
Stroke (mm): 1326
GL15N-160-HV-EH-U1-C-N-N-Y
Days to Ship: Contact Us
Size: 15
Stroke (mm): 1506
GL15N-178-HV-EH-B1-C-N-N-Y
Days to Ship: Contact Us
Size: 15
Stroke (mm): 1506
GL15N-178-HV-EH-B2-C-N-N-Y
Days to Ship: Contact Us
Page

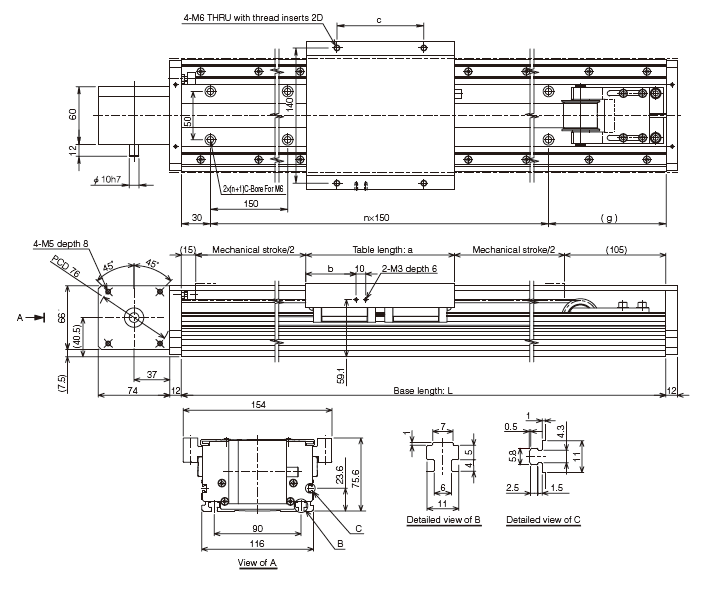

G15N Base length (mm) 340 460 580 700 820 1060 1240 1420 1600 1780 1960
Mechanical stroke (mm) L type 66 186 306 426 546 786 966 1146 1326 1506 1686
Table dimensions Table length: a 180
b 65
c 120
Base mounting hole n 1 2 3 3 4 5 6 7 9 11 12
g (mm) 160 130 100 220 190 130 160 190 220 100 130

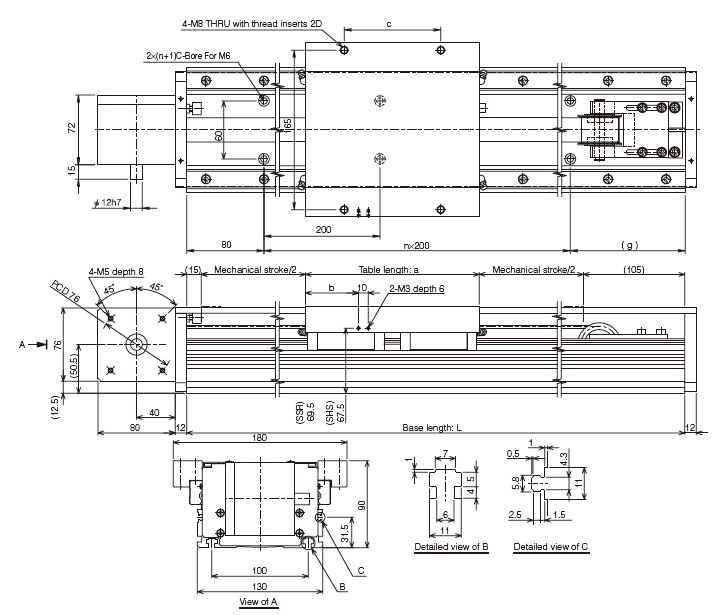

G20N Base length (mm) 460 580 700 820 1060 1240 1420 1600 1780 1960 2200 2320 2500 3000
Mechanical stroke (mm) L type 160 280 400 520 760 940 1120 1300 1480 1660 1900 2020 2200 2720
Table dimensions (mm) Table length: a 180
b 55
c 100
Base mounting hole n 1 1 2 3 4 5 6 7 8 8 10 10 11 14
g (mm) 180 300 220 140 180 160 140 120 100 280 120 240 220 120
Model number GL15N GL20N
Pulley pitch diameter mm 35.01 38.20
Repeatability1 mm ±0.08
Maximum load capacity guildeline2 200W Horizontal kg 30 -
400W Horizontal - 50
Static permissible load3 Reverse radial direction N 9600 14300
Horizontal direction 2900 4500
Static permissible moment4 MA N-m 430 710
MB 240 430
MC 610 1020

Note 1: This repeatability is ensured at an ambient temperature of 20°C. Note 2: Maximum load capacity guideline is determined based on rated revolution of the motor at the acceleration of 0.3G. The motor capacity assumes the use of an AC servomotor. Values are guidelines when using 1/5 reducers. Note 3: The static permissible load is determined by the bolt joint strength, and the static rated load of the LM guide unit, ball screw unit and the support bearing. For safety purposes, please take into consideration that the strength of the actuator mounting unit is not included. Note 4: The static permissible moment is the maximum value of the moment in each direction.

Maximum travel speed
mm/s
Model number GL15N GL20N
Reduction ratio 1/3 1/5 1/9 1/3 1/5 1/9
Max speed 1833 1100 611 2000 1200 667
Model Base length LM guide type  Belt driven End plate type (for motor mount) Cover Sensor*1 Cable carrier Mounting hole
GL15N - 070 - HV - EH - B1 - C - N - N - Y
GL15N 070:   700 mm(Stroke: 426 mm) HV:Model SHS-V EH: Belt driven B1: inner dia 50 mm, 5.5 thru, PCD60 mm C: With cover N: None N: None Y: Standard counterbore holes
082:   820 mm(Stroke: 546 mm) B2: inner dia 60 mm, 6.5 thru, PCD90 mm
106:   1060 mm(Stroke: 786 mm) U1: inner dia 38.1 mm, M4 depth 8, mounting pitch 47.14 mm(NEMA23 Standard)
124:   1240 mm(Stroke: 966 mm)
142:   1420 mm(Stroke:1146 mm)
160: 1600 mm(Stroke: 1326 mm)
178: 1780 mm(Stroke: 1506 mm)
196: 1960 mm(Stroke: 1686 mm)
Model Base length LM guide type  Belt driven End plate type (for motor mount) Cover Sensor*1 Cable carrier Mounting hole
GL20N - 124 - HV - EH - V1 - C - N - N - Y
GL20N 070:   70 mm(Stroke: 400 mm) HV:Model SHS-V EH: Belt driven B1: inner dia 50 mm, 5.5 thru, PCD60 mm C: With cover N: None N: None Y: Standard counterbore holes
082:   820 mm(Stroke: 520 mm) B2: inner dia 60 mm, 6.5 thru, PCD90 mm
106:   1060 mm(Stroke: 760 mm) U1: inner dia 38.1 mm, M4 depth 8, mounting pitch 47.14 mm(NEMA23 Standard)
124:   1240 mm(Stroke: 940 mm) V1: inner dia 73.03 mm, M5 depth 10, mounting pitch 69.6 mm(NEMA34 Standard)
142:   1420 mm(Stroke:1120 mm)
160: 1600 mm(Stroke: 1270 mm)
178: 1780 mm(Stroke:1450mm)
196: 1960 mm(Stroke: 1630 mm)

Note 1: Sensors can be purchased separately here The above selections are Online Store standards.  If you need a selection that differs from the standard, please contact us at [email protected]
