CFH-M-AB

Stainless Steel CFH-A Type
(Stud Dia. 12 - 20 mm)

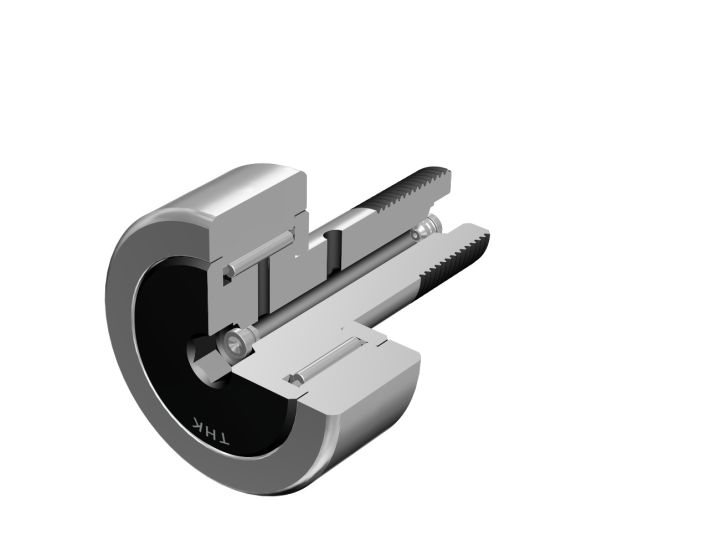

Since the mounting shaft of the stud and the stud head have the eccentricity of between 0.4 mm to 1.0 mm, the position of this Eccentric Cam Follower can easily be fine adjusted by turning the stud, achieving a compact, highly accurate integrated structure. A hexagon socket is provided on both ends of the stud, and a grease nipple is placed inside the stud from the each end.
Hide Filters Show Filters
Shopping Options
Days to Ship Clear
Stud Diameter (mm) Clear
Outer Diameter (mm) Clear
Outer Ring Shape Clear
Dust Protection Seal Clear
In stock
Loading...
*Please contact THK if you need more than available quantity or out of stock items
Attributes Part Number Unit Price Quantity Days to Ship Item Total
Stud Diameter (mm): 12
Outer Diameter (mm): 30
Outer Ring Shape: Cylindrical
Dust Protection Seal: No Seal
CFH12M-AB
Days to Ship: 2 - 3 weeks*
Stud Diameter (mm): 12
Outer Diameter (mm): 30
Outer Ring Shape: Spherical
Dust Protection Seal: No Seal
CFH12MR-AB
Days to Ship: 2 - 3 weeks*
Stud Diameter (mm): 12
Outer Diameter (mm): 30
Outer Ring Shape: Cylindrical
Dust Protection Seal: With Seal
CFH12MUU-AB
Days to Ship: 2 - 3 weeks*
Stud Diameter (mm): 12
Outer Diameter (mm): 30
Outer Ring Shape: Spherical
Dust Protection Seal: With Seal
CFH12MUUR-AB
Days to Ship: 2 - 3 weeks*
Stud Diameter (mm): 12
Outer Diameter (mm): 32
Outer Ring Shape: Cylindrical
Dust Protection Seal: No Seal
CFH12-1M-AB
Days to Ship: 2 - 3 weeks*
Stud Diameter (mm): 12
Outer Diameter (mm): 32
Outer Ring Shape: Spherical
Dust Protection Seal: No Seal
CFH12-1MR-AB
Days to Ship: 2 - 3 weeks*
CFH12-1MUU-AB
Out of stock
Out of stock ? Contact us to place an order
Stud Diameter (mm): 12
Outer Diameter (mm): 32
Outer Ring Shape: Spherical
Dust Protection Seal: With Seal
CFH12-1MUUR-AB
Days to Ship: 2 - 3 weeks*
Stud Diameter (mm): 16
Outer Diameter (mm): 35
Outer Ring Shape: Cylindrical
Dust Protection Seal: With Seal
CFH16MUU-AB
Days to Ship: 2 - 3 weeks*
Stud Diameter (mm): 16
Outer Diameter (mm): 35
Outer Ring Shape: Spherical
Dust Protection Seal: With Seal
CFH16MUUR-AB
Days to Ship: 2 - 3 weeks*
Stud Diameter (mm): 18
Outer Diameter (mm): 40
Outer Ring Shape: Cylindrical
Dust Protection Seal: With Seal
CFH18MUU-AB
Days to Ship: 2 - 3 weeks*
Stud Diameter (mm): 18
Outer Diameter (mm): 40
Outer Ring Shape: Spherical
Dust Protection Seal: With Seal
CFH18MUUR-AB
Days to Ship: 2 - 3 weeks*
CFH20MUU-AB
Out of stock
Out of stock ? Contact us to place an order
CFH20MUUR-AB
Out of stock
Out of stock ? Contact us to place an order

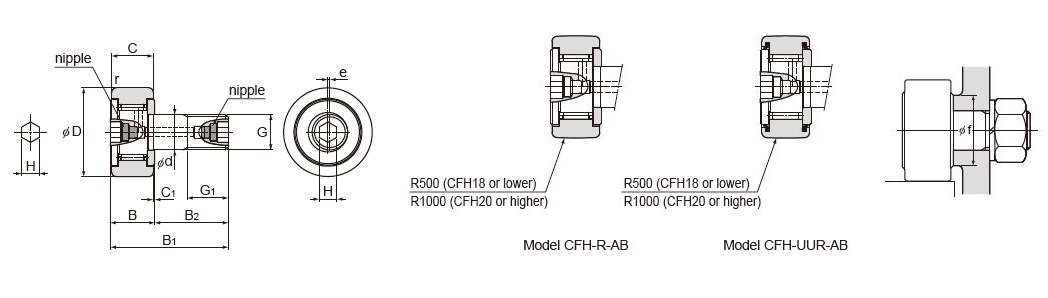

Stud diameterd Model No. Main dimensions Basic load rating MaximumpermissibleloadF0 Track load capacity Rotational speed1 Mass
Outer diameterD Outer ring widthC ThreadedG G1 B Overall lengthB1 B2 C1 Runoute H rsmin Shoulder heightf(Min.) With cage Full rollers Cylindrical outer ring Spherical outer ring With cage Full rollers With cage Full rollers
Dynamic
C
Static
C0
Dynamic
C
Static
C0
mm mm mm mm mm mm mm mm mm mm mm mm mm kN kN kN kN kN kN kN min-1 min-1 g g
12CFH12M‑AB3014M12×1.5131540250.60.460.6207.879.7913.419.89.377.062.45140005800105107
12CFH12‑1M‑AB3214M12×1.5131540250.60.460.6207.879.7913.419.89.377.452.74140005800115117
16CFH16M‑AB3518M16×1.51719.55232.50.80.560.6241218.320.637.617.311.23.14100004500205207
18CFH18M‑AB4020M18×1.51921.55836.50.80.6612614.725.225.251.326.114.43.7285003800295300
20CFH20M‑AB5224M20×1.52125.56640.50.80.7813620.734.833.264.832.123.28.2370003400525530
20CFH20‑1M‑AB4724M20×1.52125.56640.50.80.7813620.734.833.264.832.1217.1570003400450455
Note 1: The rotational speed limit value in the table applies to models that have no seal. With those attached with seals, up to 70% of this value is permitted.For more detailed specifications, please download the Product Catalog with the link in the Downloads section of this product page.
Model Size1 Material Seals Outer ring shape Type
CFH 12 M   R - AB
CFH 3~30-2 No symbol : Carbon steel No symbol : Without seals No symbol : Cylindrical No symbol : Driver groove on head of stud
  M : Stainless steel UU : With seals R : Spherical A : Hexagonal socket on head of stud
AB : Hexagonal socket on both ends
Note 1: Available sizes 12~30 for model CFH-AB, 12~20 for model CFH-M-AB, 5~10 for model CFH-A, 6~10 for model CFH-A-M, CFH, and CFH-M
