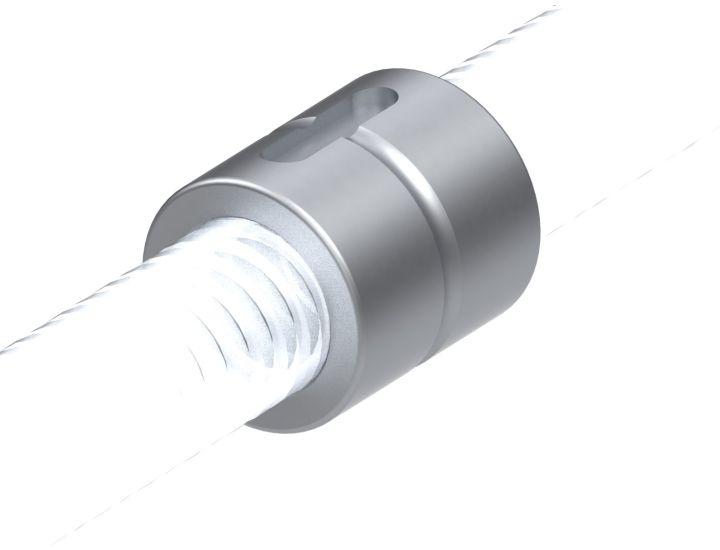

DC Nut

Cylindrical Nut

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Manufactured to meet the standards for the 30 degree trapezoidal threads.

Downloads - Log In required

Don't have an account?

In stock

*Please contact THK if you need more than available quantity or out of stock items

Attributes	Part Number	CAD	Online Store Unit Price (USD)	Days to Ship	For Shaft O.D. (mm)	Lead (mm)	Include Shaft
For Shaft O.D. (mm): 12 Lead (mm): 2	DC12	CAD	–	Back Order ? Contact us to get an ETA on shipping Contact Us	For Shaft O.D. (mm): 12	Lead (mm): 2	Include
For Shaft O.D. (mm): 14 Lead (mm): 3	DC14	CAD	–	Days to Ship: 3 - 4 weeks	For Shaft O.D. (mm): 14	Lead (mm): 3	Include
For Shaft O.D. (mm): 16 Lead (mm): 3	DC16	CAD	–	Days to Ship: 3 - 4 weeks	For Shaft O.D. (mm): 16	Lead (mm): 3	Include
For Shaft O.D. (mm): 18 Lead (mm): 4	DC18	CAD	–	Days to Ship: 3 - 4 weeks	For Shaft O.D. (mm): 18	Lead (mm): 4	Include
For Shaft O.D. (mm): 20 Lead (mm): 4	DC20	CAD	–	Back Order ? Contact us to get an ETA on shipping Contact Us	For Shaft O.D. (mm): 20	Lead (mm): 4	Include
For Shaft O.D. (mm): 22 Lead (mm): 5	DC22	CAD	–	Days to Ship: 3 - 4 weeks	For Shaft O.D. (mm): 22	Lead (mm): 5	Include
For Shaft O.D. (mm): 25 Lead (mm): 5	DC25	CAD	–	Days to Ship: 3 - 4 weeks	For Shaft O.D. (mm): 25	Lead (mm): 5	Include
For Shaft O.D. (mm): 28 Lead (mm): 5	DC28	CAD	–	Days to Ship: 3 - 4 weeks	For Shaft O.D. (mm): 28	Lead (mm): 5	Include
For Shaft O.D. (mm): 32 Lead (mm): 6	DC32	CAD	–	Days to Ship: 3 - 4 weeks	For Shaft O.D. (mm): 32	Lead (mm): 6	Include
For Shaft O.D. (mm): 36 Lead (mm): 6	DC36	CAD	–	Days to Ship: 3 - 4 weeks	For Shaft O.D. (mm): 36	Lead (mm): 6	Include
For Shaft O.D. (mm): 40 Lead (mm): 6	DC40	CAD	–	Days to Ship: 3 - 4 weeks	For Shaft O.D. (mm): 40	Lead (mm): 6	Include
For Shaft O.D. (mm): 45 Lead (mm): 8	DC45	CAD	–	Days to Ship: 3 - 4 weeks	For Shaft O.D. (mm): 45	Lead (mm): 8	Include
For Shaft O.D. (mm): 50 Lead (mm): 8	DC50	CAD	–	Days to Ship: 3 - 4 weeks	For Shaft O.D. (mm): 50	Lead (mm): 8	Include

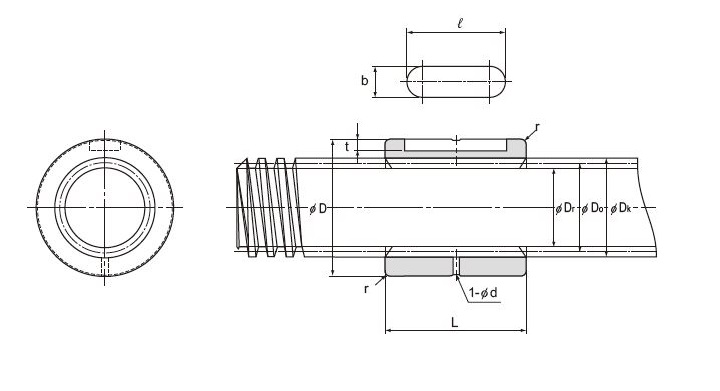

Specifications


Model No.	Outer dimensions			Lead screw nut dimensions						DynamicpermissiblethrustF^*1	Nut mass
	Outer diameter		LengthL0-0.3	Keyway dimensions				d	r
	D	Toleranceh9	LengthL0-0.3	b	ToleranceN9	t	l	d	r
	mm	mm	mm	mm	mm	mm	mm	mm	mm	N	g
DC12	22	0-0.052	22	4	0-0.030	2	16	1	1.5	2840	40
DC14	22		22	4		2	16	1	1.5	3630	45
DC16	28		26	5		2.5	18	1	1.5	4900	75
DC18	32	0-0.062	31	7	0-0.036	2.5	22	1	2	6860	120
DC20	32		31	7		2.5	22	1	2	7650	110
DC22	36		40	7		2.5	26	1	2.5	9900	180
DC25	36		40	7		2.5	26	1	2.5	11400	155
DC28	44		45	10		4	32	1.5	2.5	14400	280
DC32	44		45	10		4	32	1.5	2.5	17100	230
DC36	52	0-0.074	49	12	0-0.043	4.5	40	1.5	3	21200	380
DC40	58		57	15		5	42	1.5	3	27500	520
DC45	64		62	15		5	48	1.5	4	34900	730
DC50	68		67	15		5	52	1.5	4	42100	810
