Fixed Side-Square Type
(Inner Diameter: 4 - 20 mm)
The Support Unit is compactly designed to accommodate the space in the installation site. As the bearing is provided with an appropriately adjusted preload, the Support Unit can be assembled with a Ball Screw unit with no further machining.
Hide Filters Show Filters
Shopping Options
Days to Ship Clear
For Shaft O.D. (mm) Clear
  1. see 3 more see less
In stock
Loading...
*Please contact THK if you need more than available quantity or out of stock items
Attributes Part Number Unit Price Quantity Days to Ship Item Total
For Shaft O.D. (mm): 4
EK4
Days to Ship: 2 - 3 weeks*
For Shaft O.D. (mm): 5
EK5
Days to Ship: 2 - 3 weeks*
For Shaft O.D. (mm): 6
EK6
Days to Ship: 2 - 3 weeks*
For Shaft O.D. (mm): 8
EK8
Days to Ship: 1 - 3 days
For Shaft O.D. (mm): 10
EK10
Days to Ship: 1 - 3 days
For Shaft O.D. (mm): 12
EK12
Days to Ship: 1 - 3 days
For Shaft O.D. (mm): 15
EK15
Days to Ship: 2 - 3 weeks*
For Shaft O.D. (mm): 20
EK20
Days to Ship: 2 - 3 weeks*
Included items EK4-EK8
Item No. Item name Qty
Housing 1
Bearing 1 set
Set nut 1
Collar 2
Seal 1
Lock Nut 1
Hexagonal socket head set screw(with set piece) 1

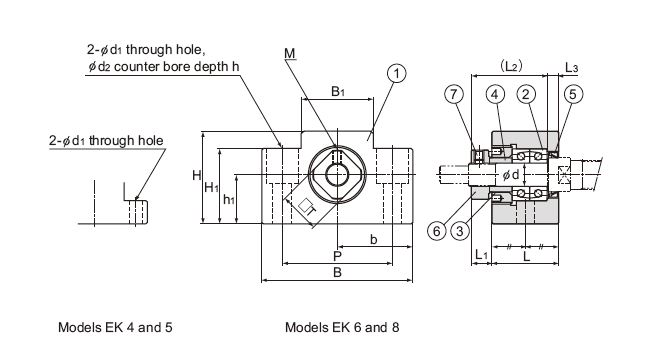

Model No. Bearingjournaldiameterd L L1 L2 L3 B H b±0.02 h1±0.02 B1 H1 P d1 d2 h M T Bearingused Basic load rating Mass
