    FBL27S

    Light Load
    (Stroke 135 - 317 mm)

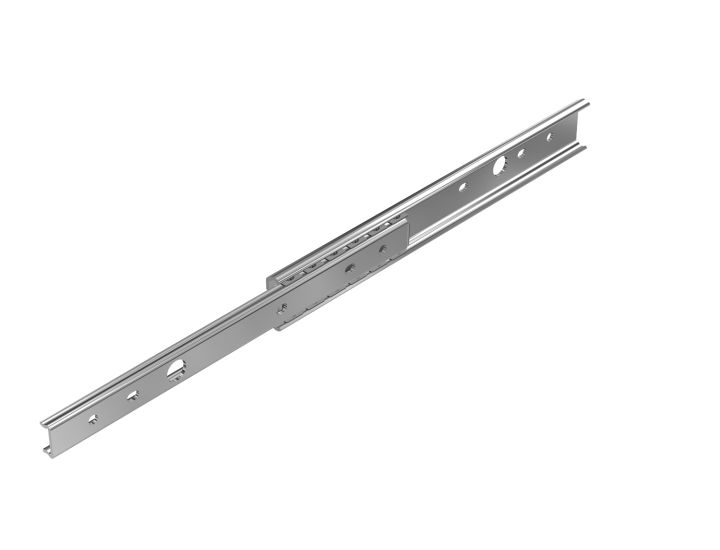

    main product photo
    The most compact slide rail

    Downloads - Log In required

    Hide Filters Show Filters
    Shopping Options
    Stroke (mm) Clear
    8. show 2 more show less
    Permissible Load per Pair (N) Clear
    7. show 1 more show less
    Don't have an account? Sign up here.
    In stock
    Loading...
    *Please contact THK if you need more than available quantity or out of stock items
    Attributes Part Number CAD Online Store
    Unit Price (USD)    		 Quantity Days to Ship Item Total
    Stroke (mm): 135
    Permissible Load per Pair (N): 260
    		FBL27S+200L –
    		Days to Ship: 3 - 4 weeks
    Stroke (mm): 185
    Permissible Load per Pair (N): 240
    		FBL27S+250L –
    		Back Order ?
    Contact us to get an ETA on shipping
    Contact Us
    Stroke (mm): 222
    Permissible Load per Pair (N): 240
    		FBL27S+300L –
    		Back Order ?
    Contact us to get an ETA on shipping
    Contact Us
    Stroke (mm): 260
    Permissible Load per Pair (N): 230
    		FBL27S+350L –
    		Days to Ship: 3 - 4 weeks
    Stroke (mm): 297
    Permissible Load per Pair (N): 210
    		FBL27S+400L –
    		Days to Ship: 3 - 4 weeks
    Stroke (mm): 334
    Permissible Load per Pair (N): 200
    		FBL27S+450L –
    		Days to Ship: 3 - 4 weeks
    Stroke (mm): 371
    Permissible Load per Pair (N): 180
    		FBL27S+500L –
    		Days to Ship: 3 - 4 weeks
    Related Products
    1. FBL27D
      FBL27D

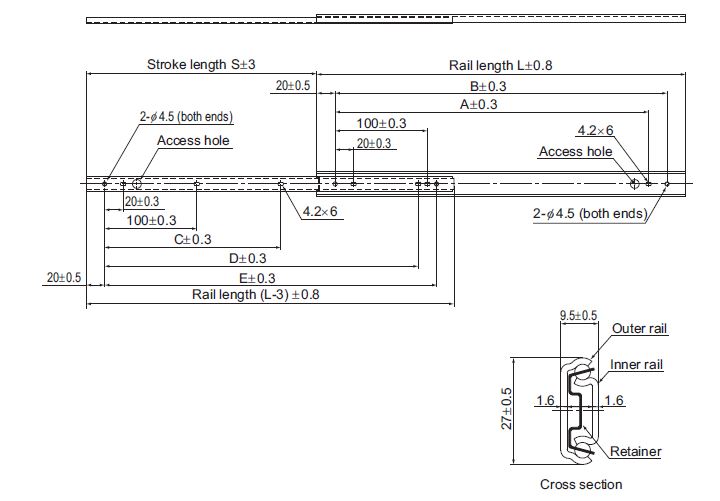

    Rail lengthL(±0.8) StrokeS(±3) Mounting hole dimensions Mounting holes Permissible
    load    		 Mass
    A B C D E Inner rail Outer rail
    mm mm mm mm mm mm mm N/pair kg/pair
    200135140.0160.0—140.0160.0552600.32
    250185190.0210.0150.0190.0210.0652400.40
    300222240.0260.0190.0240.0260.0652400.48
    350260290.0310.0225.0290.0310.0652300.56
    400297340.0360.0265.0340.0360.0652100.64
    450334390.0410.0300.0390.0410.0652000.72
    500371440.0460.0337.0440.0460.0651800.80
     Note: The Permissible Load and Mass each indicate when used as a pair of 2 units. For more detailed specifications, please download the Product Catalog with the link in the Downloads section of this product page.
    Model Size Type Length*1
    FBL 51 H + 660L
    FBL 27 S : Single slide Length in millimeters then "L"
      35 D : Double slide for 27 and 35 sizes
      51 E : Compact double slide
      56 E-P14 : E type plus inner rail lock/release spring
      G-P14 : Double slide with two S type attached front-to-front plus inner rail lock/release spring
      H : Double slide for 51 and 56 sizes
    Note 1: see the Specifications tab for standard lengths
