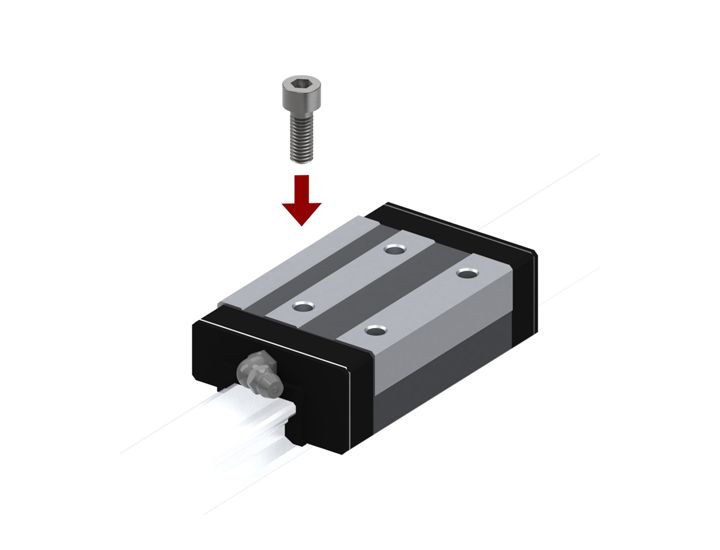

GSR-T Block

Standard Type
Product Preview

  • Interchangeable Available
  • Quick Ship ?
This model is a standard type.
View specifications and model number coding
Days to Ship
Size
Please Log In to see pricing

Don't have an account? Sign up here.

*Please contact THK if you need more than available quantity or out of stock items
Attributes Part Number Unit Price Quantity Days to Ship Include Rail Item Total
Size:15
GSR15T SS BLOCK Days to Ship:1 - 3 days
Size:20
GSR20T SS BLOCK Days to Ship:1 - 3 days
Size:25
GSR25T SS BLOCK Days to Ship:1 - 3 days
Size:30
GSR30T SS BLOCK Days to Ship:1 - 3 days
Size:35
GSR35T SS BLOCK Days to Ship:1 - 3 days
*Please contact THK if you need more than available quantity or out of stock items
Subtotal: $0.00
  • Model No. Outer dimensions Block dimensions Rail dimensions Basic load rating
    Radial
    Height
    M
    Width
    W
    Length
    L
    B1 B C S x l Grease
    nipple
    Width
    W1
    W2 W4 Height
    M1
    Pitch
    F
    d1xd2xh Dynamic
    rating
    C
    Static
    rating
    C0
    mm mm mm mm mm mm mm mm mm mm mm mm mm kN kN
    GSR15T 20 32 59.8 5 15 26 M4x7 PB107 15 25 7.5 11.5 60 4.5x7.5x5.3 6.51 6.77
    GSR20T 24 43 74 7 20 30 M5x8 B-M6F 20 33 10 13 60 6x9.5x8.5 10.5 10.6
    GSR25T 30 50 88 7 23 40 M6x10 B-M6F 23 38 11.5 16.5 60 7x11x9 15.5 15.2
    GSR30T 33 57 103 8 26 45 M8x12 B-M6F 28 44.5 14 19 80 9x14x12 27.8 29.9
    GSR35T 38 68 117 9 32 50 M8x15 B-M6F 34 54 17 22 80 11x17.5x14 37 39.1
    AFB-LF is the default grease. For more detailed specifications, please download the Product Catalog with the link in the Downloads section of this product page.
  • Model Size Block Type Seal Type*1
    GSR 20 V SS BLOCK
    GSR 15 V SS
    20 T
    25
    30
    35


    Note 1: Contamination protection seal SS is standard for Model GSR
    SS = end seals + side seals

    Note: This model number indicates a single-block, not a pair
    The above selections are Online Store standards. If you need a selection that differs from the standard, please contact us at tossales@thk.com
