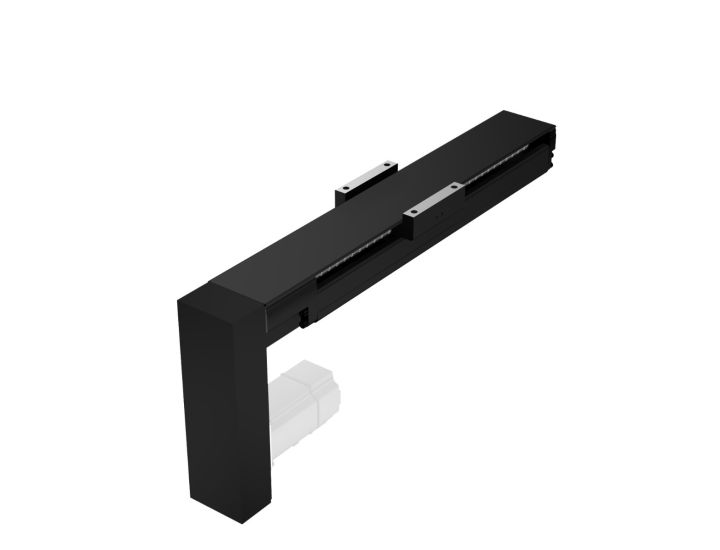

    KR26-Motor Wrap (6 o'clock)

    Ball Screw Lead: 2 or 6 mm
    Stroke: 45 - 210 mm
    main product photo







    Please use filters

    to narrow your search

    Downloads - Log In required

    Hide Filters Show Filters
    Shopping Options
    Days to Ship Clear
    Ball Screw Lead (mm) Clear
    Block Type Clear
    Stroke (mm) Clear
    8. show 2 more show less
    Cover Clear
    Intermediate Flange (Motor Adapter) Clear
    Don't have an account? Sign up here.
    In stock
    Loading...
    Page
    *Please contact THK if you need more than available quantity or out of stock items
    Attributes Part Number Online Store
    Unit Price (USD)    		 Quantity Days to Ship Item Total
    Size:
    Ball Screw Lead (mm): 2
    Block Type: A: Single Long Block
    Stroke (mm): 60
    		KR2602A-0060-R3-0-N05D-00000 –
    		Days to Ship: 4 - 5 weeks
    Size:
    Ball Screw Lead (mm): 2
    Block Type: A: Single Long Block
    Stroke (mm): 60
    		KR2602A-0060-R3-0-P08K-00000 –
    		Days to Ship: 4 - 5 weeks
    Size:
    Ball Screw Lead (mm): 2
    Block Type: A: Single Long Block
    Stroke (mm): 60
    		KR2602A-0060-R3-0-Q08D-00000 –
    		Days to Ship: 4 - 5 weeks
    Size:
    Ball Screw Lead (mm): 2
    Block Type: A: Single Long Block
    Stroke (mm): 60
    		KR2602A-0060-R3-0-Q08K-00000 –
    		Days to Ship: 4 - 5 weeks
    Size:
    Ball Screw Lead (mm): 2
    Block Type: A: Single Long Block
    Stroke (mm): 60
    		KR2602A-0060-R3-1-N05D-00000 –
    		Days to Ship: 4 - 5 weeks
    Size:
    Ball Screw Lead (mm): 2
    Block Type: A: Single Long Block
    Stroke (mm): 60
    		KR2602A-0060-R3-1-P08K-00000 –
    		Days to Ship: 4 - 5 weeks
    Size:
    Ball Screw Lead (mm): 2
    Block Type: A: Single Long Block
    Stroke (mm): 60
    		KR2602A-0060-R3-1-Q08D-00000 –
    		Days to Ship: 4 - 5 weeks
    Size:
    Ball Screw Lead (mm): 2
    Block Type: A: Single Long Block
    Stroke (mm): 60
    		KR2602A-0060-R3-1-Q08K-00000 –
    		Days to Ship: 4 - 5 weeks
    Size:
    Ball Screw Lead (mm): 2
    Block Type: A: Single Long Block
    Stroke (mm): 110
    		KR2602A-0110-R3-0-N05D-00000 –
    		Days to Ship: 4 - 5 weeks
    Size:
    Ball Screw Lead (mm): 2
    Block Type: A: Single Long Block
    Stroke (mm): 110
    		KR2602A-0110-R3-0-P08K-00000 –
    		Days to Ship: 4 - 5 weeks
    Size:
    Ball Screw Lead (mm): 2
    Block Type: A: Single Long Block
    Stroke (mm): 110
    		KR2602A-0110-R3-0-Q08D-00000 –
    		Days to Ship: 4 - 5 weeks
    Size:
    Ball Screw Lead (mm): 2
    Block Type: A: Single Long Block
    Stroke (mm): 110
    		KR2602A-0110-R3-0-Q08K-00000 –
    		Days to Ship: 4 - 5 weeks
    Size:
    Ball Screw Lead (mm): 2
    Block Type: A: Single Long Block
    Stroke (mm): 110
    		KR2602A-0110-R3-1-N05D-00000 –
    		Days to Ship: 4 - 5 weeks
    Size:
    Ball Screw Lead (mm): 2
    Block Type: A: Single Long Block
    Stroke (mm): 110
    		KR2602A-0110-R3-1-P08K-00000 –
    		Days to Ship: 4 - 5 weeks
    Size:
    Ball Screw Lead (mm): 2
    Block Type: A: Single Long Block
    Stroke (mm): 110
    		KR2602A-0110-R3-1-Q08D-00000 –
    		Days to Ship: 4 - 5 weeks
    Size:
    Ball Screw Lead (mm): 2
    Block Type: A: Single Long Block
    Stroke (mm): 110
    		KR2602A-0110-R3-1-Q08K-00000 –
    		Days to Ship: 4 - 5 weeks
    Size:
    Ball Screw Lead (mm): 2
    Block Type: A: Single Long Block
    Stroke (mm): 160
    		KR2602A-0160-R3-0-N05D-00000 –
    		Days to Ship: 4 - 5 weeks
    Size:
    Ball Screw Lead (mm): 2
    Block Type: A: Single Long Block
    Stroke (mm): 160
    		KR2602A-0160-R3-0-P08K-00000 –
    		Days to Ship: 4 - 5 weeks
    Size:
    Ball Screw Lead (mm): 2
    Block Type: A: Single Long Block
    Stroke (mm): 160
    		KR2602A-0160-R3-0-Q08D-00000 –
    		Days to Ship: 4 - 5 weeks
    Size:
    Ball Screw Lead (mm): 2
    Block Type: A: Single Long Block
    Stroke (mm): 160
    		KR2602A-0160-R3-0-Q08K-00000 –
    		Days to Ship: 4 - 5 weeks
    Page
      Specification Table (Uncovered/Covered)
      Stroke
      (stroke between mechanical stoppers)      		 Maximum speed8(mm/s) Dimensions
      (mm)      		 No. mounting
      holes      		 Mass (kg)
      Ball screw lead Outer rail length L0 D G n Uncovered Covered
      A Type B Type7 2 mm 6 mm A Type B Type A Type B Type
      mm mm mm mm mm mm mm mm kg kg kg kg
      60 (69) - 100 (200) 300 (600) 150 45 35 2 1.26 - 1.43 -
      110 (119) 45(55) 200 30 20 3 1.47 1.66 1.65 1.93
      160 (169) 95 (105) 250 55 45 3 1.69 1.88 1.87 2.15
      210 (219) 145 (155) 300 40 30 4 1.9 2.09 2.1 2.38
    Model No Ball Screw Lead Block Type
    Stroke
    		 Direct Coupling Wrapping Cover1 Motor mounting plate/ Intermediate flange Dowel Pin Holes2 Positioning Metal Bolts3 Sub-table Greasing Holes4 Surface Treatment5
    (AP-C)    		 Low Dust-generating Grease
    (AFF)
    KR26 02 A - 0060 0045 - R1 - 0 - P08K - 0 0 0 0 0
    KR26 02: 2 mm A: 1 block A: Type B:
     Type    		 R1:
     Non-standard side wrapping    		 0: Without P08K/Q08K/Q08D/N05D: (Wrapping specifications) 0: Without 0:
     Without     		0: Without 0:
     Without    		 0: Standard grease (AFA Grease)
      06: 6 mm B: 2 blocks 0060: 60 mm 0045: 45 mm R2: Standard side wrapping 1:
     With    		 D:
     With    		 M:
     With    		 G:
     With    		 L: Low dust-generating grease (AFF Grease)
    0110: 110 mm 0095: 95 mm R3: Bottom surface wrapping
    0160: 160 mm 0145: 145mm
    0210: 210 mm

    P: ①   08:②   K:â‘¢

    Note 1:
    â‘ : Motor mounting plate type
    ②: Motor shaft diameter (mm)
    â‘¢:Motor shaft securing method
    Note 2:
    K: Key
    D: Flat

    Note 3:
    Figure: Motor shaft securing method

    The above selections are Online Store standards. If you need a selection that differs from the standard, please contact us at [email protected]
