    Nozzle

    Nozzles for Grease Gun MG70
    (Not for CH-400)

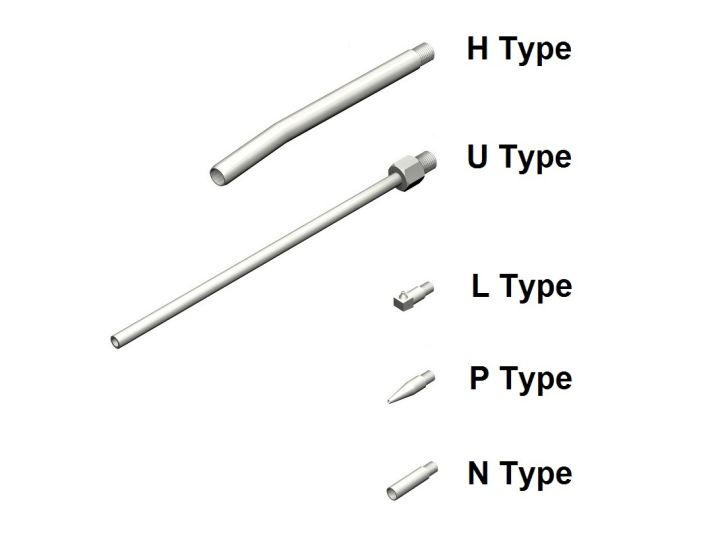

    main product photo
    Nozzles for Grease Gun MG70 (Not for CH-400)

    Downloads - Log In required

    Don't have an account? Sign up here.
    In stock
    Loading...
    *Please contact THK if you need more than available quantity or out of stock items
    Part Number CAD Online Store
    Unit Price (USD)    		 Quantity Days to Ship Item Total
    H TYPE NOZZLE –
    		Days to Ship: 1 - 3 days
    L TYPE NOZZLE –
    		Days to Ship: 1 - 3 days
    N TYPE NOZZLE –
    		Days to Ship: 1 - 3 days
    P TYPE NOZZLE –
    		Days to Ship: 1 - 3 days
    U TYPE NOZZLE –
    		Days to Ship: 1 - 3 days
    Related Products
    1. MG70
      MG70
    Model Max discharge pressure Discharge rate Weight
    MPa cc/stroke g
    MG70 19.6 0.6 480
    Type Dimensions Supported models
    Type N LM Guide SSR15, SHS15, SR15, HSR12, HSR15, CSR15 HRW17, GSR15, RSR15, HCR12, HCR15, models with grease nipple PB107 or PB1021B attached
    Cam Follower CF, CFN, CFH
    (models must have grease nipple option attached)
    Rod End PHS5 to 22, POS8 to 22
    Type P LM Guide HSR8, HSR10, HRW12, HRW14, RSR12
    Cam Follower CF-AB
    Type L LM Guide HSR8, HSR10, HRW12, HRW14, RSR12
    Type H LM Guide Models with grease nipple M6F or PT1/8 attached
    Ball screw All
    (models must have grease nipple option attached)
    Rod End PHS25, PHS30, POS25, POS30
    Dedicated nozzle type U To attach Types N, P, and L nozzles to the MG70
    Types P and L are also capable of greasing less accessible areas by dispensing grease on the raceway (ball path of LM guides, ball screws, etc.). For more detailed specifications, please download the Product Catalog with the link in the Downloads section on this page.
