    HSR-XLC Block - Stainless

    Long HSR-XC Style
    main product photo

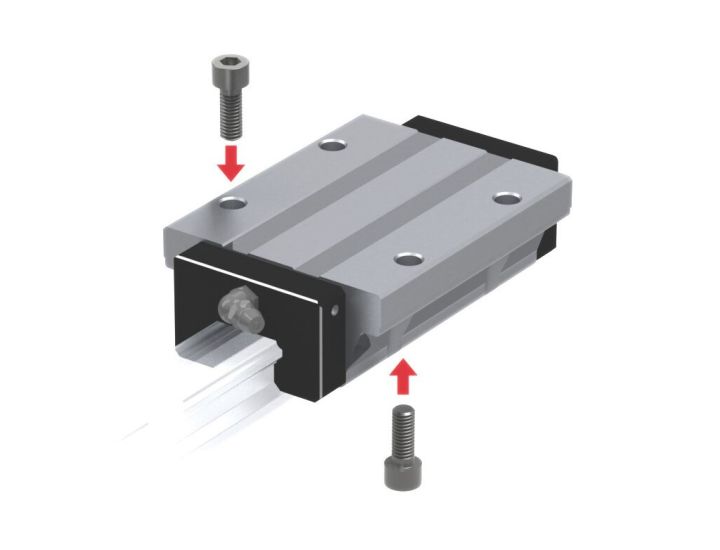

    The LM block has the same cross-sectional shape as model HSR-XC, but has a longer overall LM block length and a greater rated load.

    Downloads - Log In required

    Hide Filters Show Filters
    Shopping Options
    Size Clear
    Preload Clear
    Don't have an account? Sign up here.
    In stock
    Loading...
    *Please contact THK if you need more than available quantity or out of stock items
    Attributes Part Number CAD Online Store
    Unit Price (USD)    		 Quantity Days to Ship Include Rail Item Total
    Size: 8
    Preload: No Preload
    		HSR8XLC1UUM BLOCK –
    		Days to Ship: 1 - 3 days
    Size: 10
    Preload: No Preload
    		HSR10XLC1UUM BLOCK –
    		Days to Ship: 1 - 3 days
    Size: 12
    Preload: No Preload
    		HSR12XLC1UUM BLOCK –
    		Days to Ship: 1 - 3 days
    Related Products
    1. Miniature Rail (HSR-X)
      Miniature Rail (HSR-X)
    Model No. Outer dimensions Block dimensions H3 W2 Basic Load Rating Static Permissible Moment
    kN-M    		 Mass kg
    MA
    		 MB
    		 MC
    Height
    M    		 Width
    W    		 Length
    L    		 B C S L1 T T1 K N E Grease Hole
    d    		 Grease
    Nipple    		 C kN
    		 C0 kN 1 Block
    		Double
    Block
    		1 Block
    		Double
    Block
    		1 Block
    mm mm mm mm mm mm mm mm mm mm mm mm mm mm kN kN mm mm mm mm mm
    HSR8XLC 10 24 30.5 19 10 M2.3 21.5 4 3.5 7.9 1.6 --- 2.2 --- 2.1 8 1.5 2.8 0.00913 0.0502 0.00913 0.0502 0.00964 0.018
    HSR10XLC 12 30 40 24 12 M3 29.1 5 4.5 9.8 2.5 --- 2.2 --- 2.2 10 2.72 4.9 0.0211 0.115 0.0211 0.115 0.0213 0.038
    HSR12XLC 19 40 58 32 15 M4 43.5 6.5 6 15.9 4.2 4 -- PB107 3.1 12 6.96 12.1 0.0781 0.409 0.0781 0.409 0.0622 0.132
    AFF is the default grease. For more detailed specifications, please download the Product Catalog with the link in the Downloads section of this product page.
    Model Size Block Type Block Code*1 Seal Type*2 Block Material
    HSRX 8 LC 1 UU M BLOCK
    HSRX 8 LC 1 UU No Symbol: Standard steel
    10 M: Stainless steel
    12

    Note 1: This number is always 1 for interchangeable blocks Note 2: Contamination protection seal UU is standard for Model HSR-X. UU = end seals

    The above selections are Online Store standards. If you need a selection that differs from the standard, please contact us at [email protected]
