    HSR-XR Block - Stainless

    Narrow Tapped Holes
    main product photo

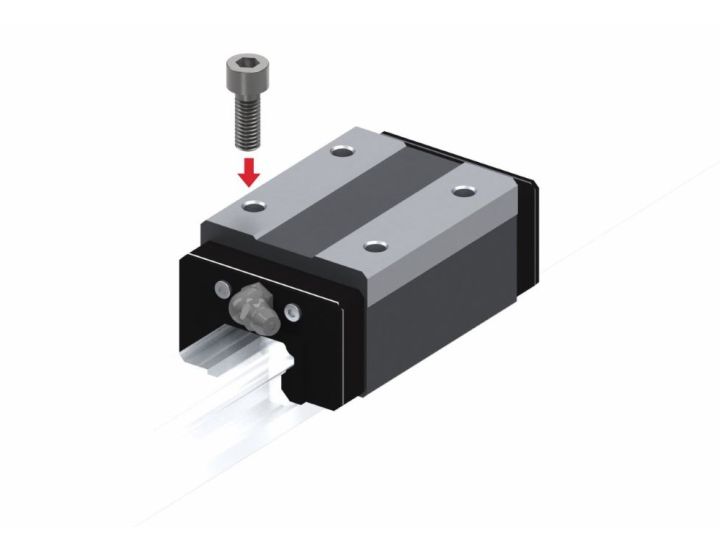

    The LM block has a smaller width and tapped holes, suitable for compact designs.

    Downloads - Log In required

    Hide Filters Show Filters
    Shopping Options
    Size Clear
    Preload Clear
    Don't have an account? Sign up here.
    In stock
    Loading...
    *Please contact THK if you need more than available quantity or out of stock items
    Attributes Part Number CAD Online Store
    Unit Price (USD)    		 Quantity Days to Ship Include Rail Item Total
    Size: 8
    Preload: No Preload
    		HSR8XR1UUM BLOCK –
    		Back Order ?
    Contact us to get an ETA on shipping
    Contact Us
    Size: 10
    Preload: No Preload
    		HSR10XR1UUM BLOCK –
    		Days to Ship: 1 - 3 days
    Size: 12
    Preload: No Preload
    		HSR12XR1UUM BLOCK –
    		Days to Ship: 1 - 3 days
    Related Products
    1. Miniature Rail (HSR-X)
      Miniature Rail (HSR-X)
    2. HSR-XR Set
      HSR-XR Set

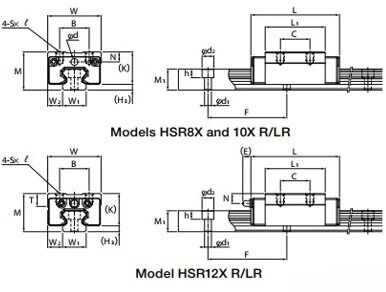

    Model No. Outer dimensions Block dimensions H3 W2 Basic Load Rating Static Permissible Moment
    kN-M    		 Mass kg
    MA
    		 MB
    		 MC
    Height
    M    		 Width
    W    		 Length
    L    		 B C S x ℓ L1 T1 K N E Grease Hole
    d    		 Grease
    Nipple    		 C kN
    		 C0 kN 1 Block
    		Double
    Block
    		1 Block
    		Double
    Block
    		1 Block
    mm mm mm mm mm mm mm mm mm mm mm mm mm kN kN mm mm mm mm mm
    HSR8XR 11 16 24 10 10 M2x2.5 15 --- 8.9 2.6 --- 2.2 -- 2.1 4 1.2 2.02 0.00457 0.0297 0.000457 0.0297 0.00698 0.01
    HSR10XR 13 20 31 13 12 M2.6x2.5 20.1 --- 10.8 3.5 --- 2.2 -- 2.2 5 2.16 3.54 0.0114 0.0659 0.0114 0.0659 0.0154 0.021
    HSR12XR 20 27 45 15 15 M4x4.5 30.5 6 16.9 5.2 4 --- PB107 3.1 7.5 5.54 8.75 0.0421 0.234 0.0421 0.234 0.0449 0.071
    AFF is the default grease. For more detailed specifications, please download the Product Catalog with the link in the Downloads section of this product page.
    Model Size Block Type Block Code*1 Seal Type*2 Block Material
    HSRX 8 R 1 UU M BLOCK
    HSRX 8 R 1 UU No Symbol: Standard steel
    10 M: Stainless steel
    12

    Note 1: This number is always 1 for interchangeable blocks Note 2: Contamination protection seal UU is standard for Model HSR-X. UU = end seals

    The above selections are Online Store standards. If you need a selection that differs from the standard, please contact us at [email protected]
