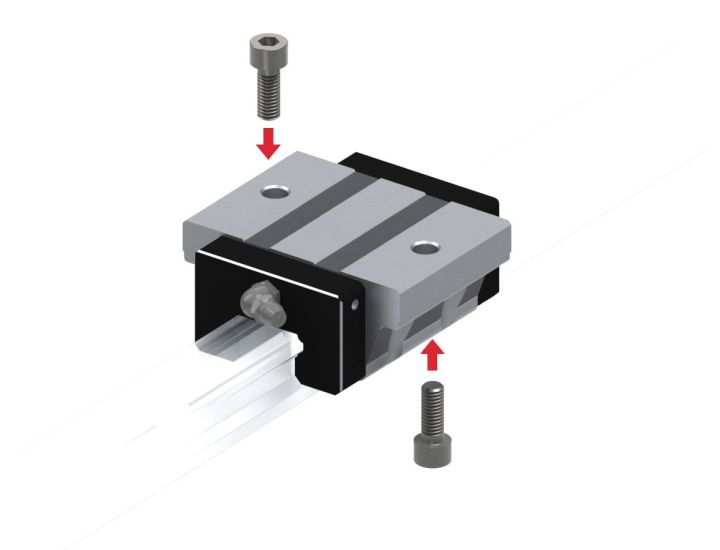

HSR-XSC Block - Stainless

Short HSR-XC Style

The LM block has the same cross-sectional shape as model HSR-XC, but has a shorter overall LM block length.

Downloads - Log In required

Don't have an account?

In stock

*Please contact THK if you need more than available quantity or out of stock items

Attributes	Part Number	CAD	Online Store Unit Price (USD)	Days to Ship	Size	Preload	Include Rail
Size: 8 Preload: No Preload	HSR8XSC1UUM BLOCK	CAD	–	Days to Ship: 1 - 3 days	Size: 8	Preload: No Preload	Include
Size: 10 Preload: No Preload	HSR10XSC1UUM BLOCK	CAD	–	Days to Ship: 1 - 3 days	Size: 10	Preload: No Preload	Include
Size: 12 Preload: No Preload	HSR12XSC1UUM BLOCK	CAD	–	Days to Ship: 1 - 3 days	Size: 12	Preload: No Preload	Include


Model No.	Outer dimensions			Block dimensions											H3	W2	Basic Load Rating		Static Permissible Moment kN-M					Mass kg
	Outer dimensions			Block dimensions													Basic Load Rating		MA		MB		MC
	Height M	Width W	Length L	B	C	S	L1	T	T1	K	N	E	Grease Hole d	Grease Nipple			C kN	C₀ kN	1 Block	Double Block	1 Block	Double Block	1 Block
	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm			kN	kN	mm	mm	mm	mm	mm
HSR8XSC	10	24	24	19	---	M2.3	9	4	3.5	7.9	1.6	---	2.2	---	2.1	8	0.85	1.24	0.00179	0.0148	0.00179	0.0148	0.0043	0.007
HSR10XSC	12	30	24	24	---	M3	13.1	5	4.5	9.8	2.5	---	2.2	---	2.2	10	1.54	2.18	0.00464	0.0336	0.00464	0.0336	0.00949	0.017
HSR12XSC	19	40	34	32	---	M4	19.5	6.5	6	15.9	4.2	4	--	PB107	3.1	12	3.95	5.39	0.0171	0.0116	0.0171	0.0116	0.0277	0.059

Note 1: This number is always 1 for interchangeable blocks Note 2: Contamination protection seal UU is standard for Model HSR-X. UU = end seals
