RSX-N Block

Long M Type

Skip to the beginning of the images gallery

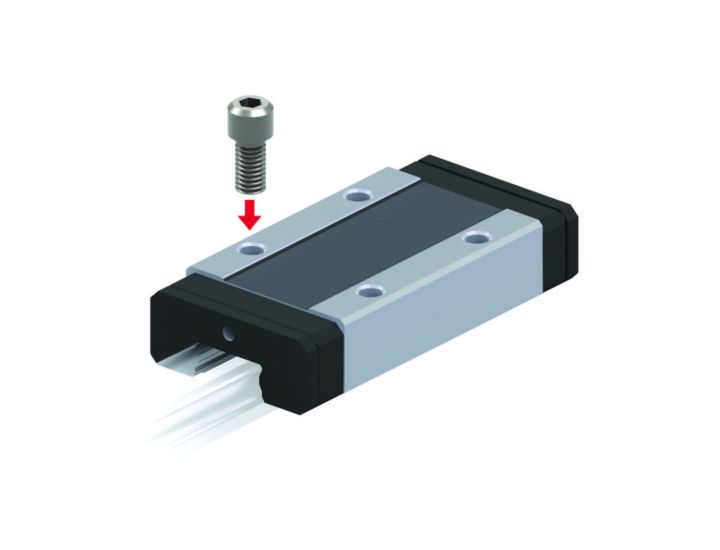

The LM block has the same cross-sectional shape as model RSX-M, but has a longer overall LM block length, greater rated load and permissible moment.

Downloads - Log In required

Don't have an account?

In stock

*Please contact THK if you need more than available quantity or out of stock items

Attributes	Part Number	CAD	Online Store Unit Price (USD)	Days to Ship	Size	Include Rail
Size: 7	RSX7NMUU BLOCK	CAD	–	Days to Ship: 1 - 3 days	Size: 7	Include
Size: 9	RSX9NMUU BLOCK	CAD	–	Days to Ship: 1 - 3 days	Size: 9	Include
Size: 12	RSX12NMUU BLOCK	CAD	–	Days to Ship: 1 - 3 days	Size: 12	Include
Size: 15	RSX15NMUU BLOCK	CAD	–	Days to Ship: 1 - 3 days	Size: 15	Include

Specifications

units: mm

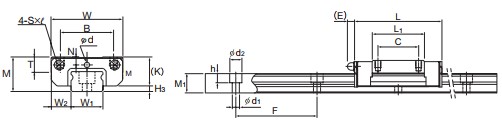

Model No.	Outer dimensions			LM Block dimensions										H3	H2	Basic load rating		Static Permissible Moment N-M					Mass kg
	Outer dimensions			LM Block dimensions												Radial		MA		MB		MC
	Height M	Width W	Length L	B	C	S x l	L1	T	K	N	E	Greasing hole d	Greasing nipple			Dynamic C	Static C₀	1 Block	Double Block	1 Block	Double Block	1 Block
	Height M	Width W	Length L	B	C	S x l	L1	T	K	N	E	Greasing hole d	Greasing nipple			kN	kN	1 Block	Double Block	1 Block	Double Block	1 Block
RSX7NM	8	17	31	12	13	M2 x 2.6	21	---	6.5	1.7	---	1.2	---	1.5	5	1.63	2.51	8.08	48.4	9.32	56	9.71	0.012
RSX9NM	10	20	40.8	15	16	M3 x 2.8	29.8	---	7.8	2.4	---	1.6	---	2.2	5.5	2.94	4.59	21.1	111	24.4	128	21.1	0.024
RSX12NM	13	27	47.7	20	20	M3 x 3.5	33.3	5.3	10	3	---	2	---	3	7.5	4.72	6.83	34.8	195	34.8	195	44.7	0.047
RSX15NM	16	32	60.7	25	25	M3 x 4	43.5	5.8	12	3	4	---	PB107	4	8.5	8.27	11.8	82.1	432	82.1	432	84.3	0.089

AFF is the default grease for the 9X to 15 size. For more detailed specifications, please download the Product Catalog with the link in the Downloads section of this product page.

Model Number Coding

Model	Size	Block Type	Seal Type^*1
RSX	12	NM	UU	BLOCK

RSX	7	NM	UU
	9
	12
	15

Note 1: Contamination protection seal UU is standard for Model SRS UU = end seals The above selections are Online Store standards. If you need a selection that differs from the standard, please contact us at [email protected]
