KS

Skip to the end of the images gallery

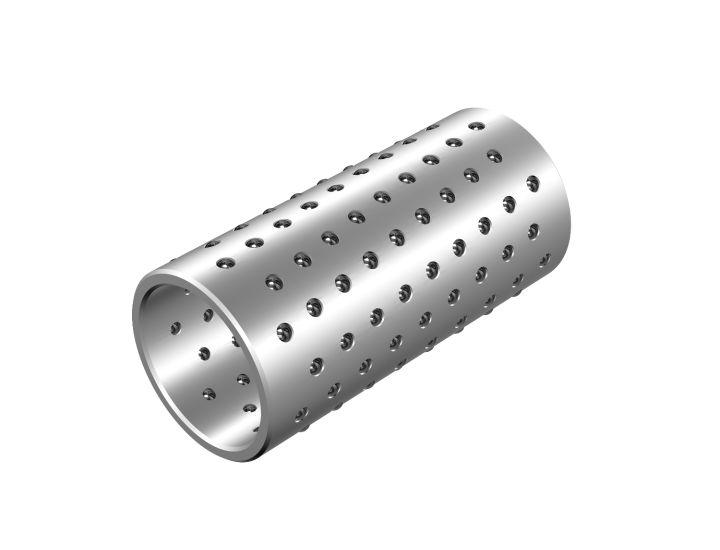

main product photo

Skip to the beginning of the images gallery

Downloads - Log In required

Don't have an account?

In stock

*Please contact THK if you need more than available quantity or out of stock items

Attributes	Part Number	CAD	Online Store Unit Price (USD)	Quantity	Days to Ship	For Shaft O.D. (mm)	Item Total
For Shaft O.D. (mm): 19	KS1955	CAD	–		Days to Ship: 3 - 4 weeks	For Shaft O.D. (mm): 19
For Shaft O.D. (mm): 22	KS2260	CAD	–		Days to Ship: 3 - 4 weeks	For Shaft O.D. (mm): 22
For Shaft O.D. (mm): 25	KS2565	CAD	–		Days to Ship: 3 - 4 weeks	For Shaft O.D. (mm): 25
For Shaft O.D. (mm): 28	KS2870	CAD	–		Days to Ship: 3 - 4 weeks	For Shaft O.D. (mm): 28
For Shaft O.D. (mm): 32	KS3275	CAD	–		Days to Ship: 3 - 4 weeks	For Shaft O.D. (mm): 32
For Shaft O.D. (mm): 38	KS3880	CAD	–		Days to Ship: 3 - 4 weeks	For Shaft O.D. (mm): 38

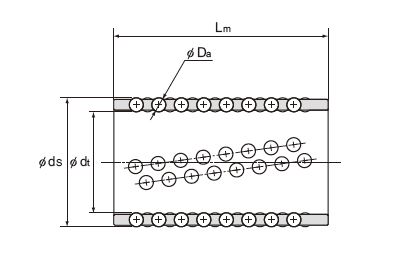

Model No.	Main dimensions				Radialclearancetolerance	Basic load rating		Mass
	d_t	D_a	d_s	L_m		Dynamic C	Static C₀
	d_t	D_a	d_s	L_m		Dynamic C	Static C₀
	mm	mm	mm	mm	µm	kN	kN	g
KS1955	19	3	25	55	–7	10.3	3.82	31.7
KS2260	22	3	28	60	–7	10.7	4.22	37.6
KS2565	25	3	31	65	–7	11.7	5	45.4
KS2870	28	4	36	70	–9	18	7.65	80.4
KS3275	32	4	40	75	–9	19.7	9.12	96.5
KS3880	38	5	48	80	–10	25	12	156

Model Number Coding

Note 1: see the Specifications tab for standard sizes
Model	Applicable shaft size¹	Length¹
KS	19	55

KS	19 ~ 38	55 ~ 80
