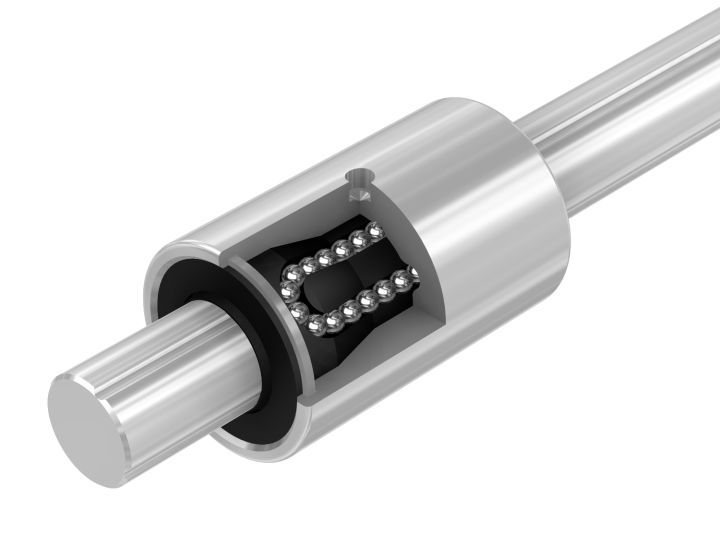

Since model LG has 4 rows of circular arc grooves (raceways), it achieves a load rating more than twice that of point-contact Linear Bushing model LM with the same size.
Hide Filters Show Filters
Shopping Options
Days to Ship Clear
Size Clear
Shaft Length (mm) Clear
In stock
Loading...
*Please contact THK if you need more than available quantity or out of stock items
Attributes Part Number Online Store
Unit Price (USD)
Quantity Days to Ship Item Total
Size: 4
Product Type Name: Short Nut
Shaft Length (mm):
LG4S NUT
Size: 4
Product Type Name: Long Nut
Shaft Length (mm):
LG4L NUT
Days to Ship: 3 - 4 weeks
Size: 4
Product Type Name: Shaft
Shaft Length (mm): 150
LG4-150L SHAFT
Days to Ship: 3 - 4 weeks
Size: 6
Product Type Name: Long Nut
Shaft Length (mm):
LG6S NUT
Size: 6
Product Type Name: Long Nut
Shaft Length (mm):
LG6L NUT
Days to Ship: 3 - 4 weeks
Size: 6
Product Type Name: Shaft
Shaft Length (mm): 150
LG6-150L SHAFT
Days to Ship: 3 - 4 weeks
Size: 6
Product Type Name: Shaft
Shaft Length (mm): 200
LG6-200L SHAFT
Days to Ship: 3 - 4 weeks
Size: 8
Product Type Name: Short Nut
Shaft Length (mm):
LG8S NUT
Days to Ship: 3 - 4 weeks
Size: 8
Product Type Name: Long Nut
Shaft Length (mm):
LG8L NUT
Days to Ship: 3 - 4 weeks
Size: 8
Product Type Name: Shaft
Shaft Length (mm): 150
LG8-150L SHAFT
Days to Ship: 3 - 4 weeks
Size: 8
Product Type Name: Shaft
Shaft Length (mm): 250
LG8-250L SHAFT
Days to Ship: 3 - 4 weeks

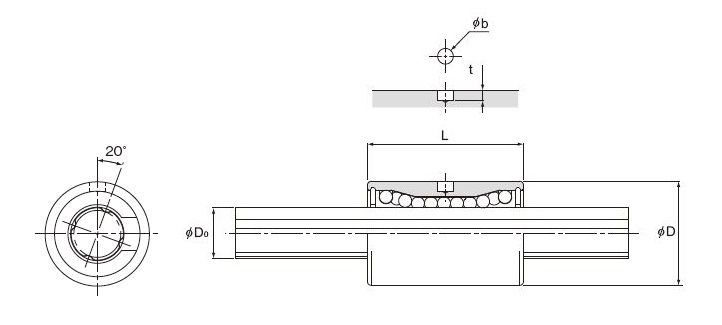

Model No. Shaft diameter Nut dimensions Basic load rating Permissible
torque
Permissible
moment
Mass
Outer diameter Length Pin hole Radial
D0h7 D Tolerance L Tolerance b+0.050 t+0.08-0.02 DynamicC StaticC0 C0T MA
mm mm mm mm mm mm mm N N N-m N-m g
LG4S480-0.009120-0.121.20.83354730.0660.332.5
LG4L8191.20.84667570.1050.714.0
LG6S6120-0.011190-0.21.51.24946810.2410.7410.5
LG6L12191.51.286014990.5301.7114.0
LG8S8152421.579610650.8381.4616.5
LG8L153021.5120319161.5092.6622.0
Note) The basic load ratings each indicate the value when one row of balls receiving a load are directly under the load. The permissible torques each represent a reference value when the radial clearance is maximum (+10µm). The permissible moments each indicate a reference value when the radial clearance is the maximum (+10µm) with one row of balls receiving a load being directly under the load. For more detailed specifications, please download the Product Catalog with the link in the Downloads section of this product page.
LG nut only
Model Size Type
LG 4 S NUT
LG 4 S : Short nut
  6 L : Long nut
  8
LG shaft only
Model Size Length
LG 4 - 150L SHAFT
LG 4 150L
  6 200L
  8
