VR

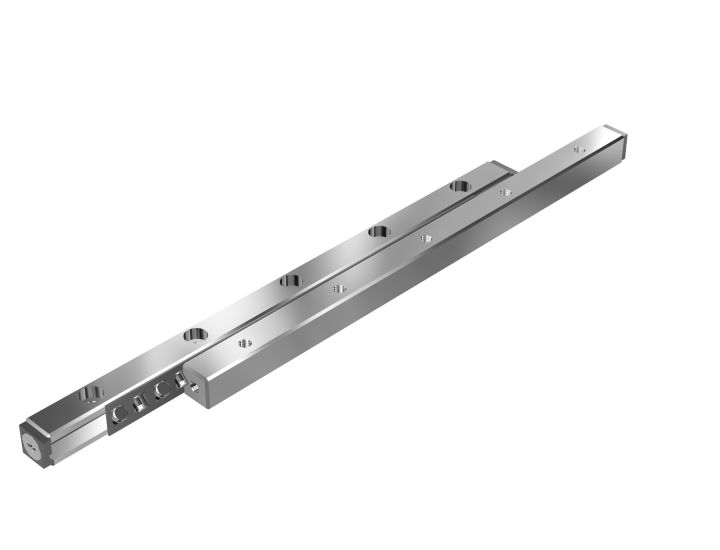

A compact, highly rigid LM system whose roller cage holding precision rollers orthogonally aligned one after another travels by half the stroke on a V-shaped groove formed on a rail.
Hide Filters Show Filters
Shopping Options
Days to Ship Clear
Max Stroke Range (mm) Clear
  1. see 1 more see less
Width (mm) Clear
Height (mm) Clear
In stock
Loading...
Page
*Please contact THK if you need more than available quantity or out of stock items
Attributes Part Number Unit Price Quantity Days to Ship Item Total
Width (mm): 8.5
Height (mm): 4
Max Stroke (mm): 12
VR1-20HX5Z
Days to Ship: 2 - 3 weeks*
Width (mm): 8.5
Height (mm): 4
Max Stroke (mm): 22
VR1-30HX7Z
Days to Ship: 2 - 3 weeks*
Width (mm): 8.5
Height (mm): 4
Max Stroke (mm): 27
VR1-40HX10Z
Days to Ship: 2 - 3 weeks*
Width (mm): 8.5
Height (mm): 4
Max Stroke (mm): 32
VR1-50HX13Z
Days to Ship: 2 - 3 weeks*
Width (mm): 8.5
Height (mm): 4
Max Stroke (mm): 37
VR1-60HX16Z
Days to Ship: 2 - 3 weeks*
Width (mm): 8.5
Height (mm): 4
Max Stroke (mm): 42
VR1-70HX19Z
Days to Ship: 2 - 3 weeks*
VR1-80HX21Z
Out of stock
Out of stock ? Contact us to place an order
Width (mm): 12
Height (mm): 6
Max Stroke (mm): 18
VR2-30HX5Z
Days to Ship: 2 - 3 weeks*
Width (mm): 12
Height (mm): 6
Max Stroke (mm): 24
VR2-45HX8Z
Days to Ship: 2 - 3 weeks*
Width (mm): 12
Height (mm): 6
Max Stroke (mm): 30
VR2-60HX11Z
Days to Ship: 2 - 3 weeks*
Width (mm): 12
Height (mm): 6
Max Stroke (mm): 44
VR2-75HX13Z
Days to Ship: 2 - 3 weeks*
Width (mm): 12
Height (mm): 6
Max Stroke (mm): 50
VR2-90HX16Z
Days to Ship: 2 - 3 weeks*
Width (mm): 12
Height (mm): 6
Max Stroke (mm): 64
VR2-105HX18Z
Days to Ship: 2 - 3 weeks*
VR2-120HX21Z
Out of stock
Out of stock ? Contact us to place an order
VR2-135HX23Z
Out of stock
Out of stock ? Contact us to place an order
Width (mm): 12
Height (mm): 6
Max Stroke (mm): 90
VR2-150HX26Z
Days to Ship: 2 - 3 weeks*
Width (mm): 12
Height (mm): 6
Max Stroke (mm): 96
VR2-165HX29Z
Days to Ship: 2 - 3 weeks*
Width (mm): 12
Height (mm): 6
Max Stroke (mm): 102
VR2-180HX32Z
Days to Ship: 2 - 3 weeks*
Width (mm): 18
Height (mm): 8
Max Stroke (mm): 28
VR3-50HX7Z
Days to Ship: 2 - 3 weeks*
Width (mm): 18
Height (mm): 8
Max Stroke (mm): 48
VR3-75HX10Z
Days to Ship: 2 - 3 weeks*
Page
Model No. Maxstroke Main dimensions No.ofrollersZ Per-missiblepreloadδ Basic load rating(per roller) Rail mass
Combined dimensions Mounting dimensions
M A L0 n×F G B C S d D h T Da R g P CZ CZ0
mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm μm kN kN kg/m
VR1‑20H×5Z128.54201×1053.91.8M21.6531.41.61.51422.55–20.1520.1530.11
VR1‑30H×7Z22 302×10197
VR1‑40H×10Z27403×1026.510
VR1‑50H×13Z32504×103413
VR1‑60H×16Z37605×1041.516
VR1‑70H×19Z42706×104919
VR1‑80H×21Z52807×105421
VR2‑30H×5Z18126301×157.55.62.5M32.554.421.52212.545–30.2760.2710.23
VR2‑45H×8Z24452×15338
VR2‑60H×11Z30603×154511
VR2‑75H×13Z44754×155313
VR2‑90H×16Z50905×156516
VR2‑105H×18Z641056×157318
VR2‑120H×21Z701207×158521
VR2‑135H×23Z841358×159323
VR2‑150H×26Z901509×1510526
VR2‑165H×29Z9616510×1511729
VR2‑180H×32Z10218011×1512932
VR3‑50H×7Z28 18 8501×25 12.5 8.3 3.5 M4 3.3 6 3.1 2 336 3 57 –4 0.639 0.611 0.45
VR3‑75H×10Z48752×255110
VR3‑100H×14Z581003×257114
VR3‑125H×17Z781254×258617
VR3‑150H×21Z881505×2510621
VR3‑175H×24Z1081756×2512124
VR3‑200H×28Z1182007×2514128
VR3‑225H×31Z1382258×2515631
VR3‑250H×35Z1482509×2517635
VR3‑275H×38Z16827510×2519138
VR3‑300H×42Z17830011×2521142
VR4‑80H×7Z582211801×402010.24.5M54.384.224514.577–51.381.350.8
VR4‑120H×11Z821202×407911
VR4‑160H×15Z1061603×4010715
VR4‑200H×19Z1302004×4013519
VR4‑240H×23Z1542405×4016323
VR4‑280H×27Z1782806×4019127
VR4‑320H×31Z2023207×4021931
VR4‑360H×35Z2263608×4024735
VR4‑400H×39Z2504009×4027539
VR4‑440H×43Z27444010×4030343
VR4‑480H×47Z29848011×4033147
VR6‑100H×7Z5630151001×502514.46M65.29.55.23.26726107–73.783.781.5
VR6‑150H×10Z961502×5010210
VR6‑200H×13Z1362003×5013213
VR6‑250H×17Z1562504×5017217
VR6‑300H×20Z1963005×5020220
VR6‑350H×24Z2163506×5024224
VR6‑400H×27Z2564007×5027227
VR6‑450H×31Z2764508×5031231
VR6‑500H×34Z3165009×5034234
VR6‑550H×38Z33655010×5038238
VR6‑600H×41Z37660011×5041241
Note: "One set" in the model No. above indicates a combination of four rails and two cages. For more detailed specifications, please download the Product Catalog with the link in the Downloads section of this product page.
Model Size Rail length*1 Accuracy symbol*2 Number of rollers
VR 2 - 105 H × 18Z
VR 1 Various H : High accuracy Number of rollers then "Z"
  2
  3
  4
  5
  6
Note 1: see the Specifications tab for standard lengthsNote 2: High accuracy is the default selection for THK online store The above selections are Online Store standards. If you need a selection that differs from the standard, please contact us at tossales@thk.com
