FBL27D
Light Load(Stroke 229 - 524 mm)
A double-slide type that combines two units of model FBL 27S back-to-back.
Hide Filters
Show Filters
Shopping Options
Please Log-in to see pricing, CAD Models and Catalogs
Don't have an account? Sign up here.
In stock
Related Products

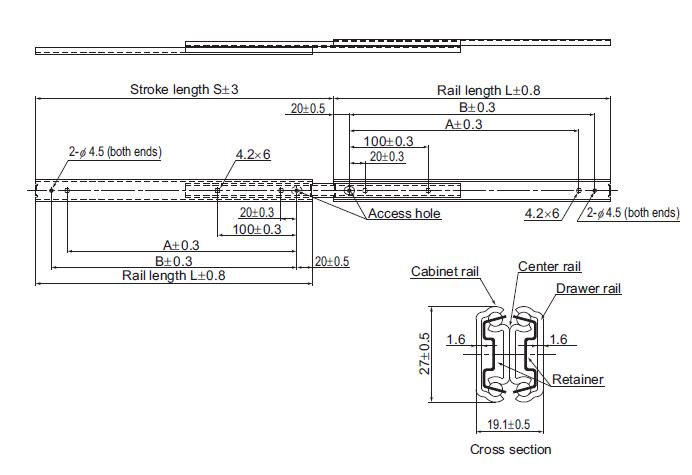

| Rail lengthL(±0.8) | StrokeS(±3) | Mounting hole dimensions | Mounting holes | Permissible load |
Mass | ||
| A | B | Drawer rail | Cabinet rail | ||||
| mm | mm | mm | mm | N/pair | kg/pair | ||
| 200 | 229 | 140.0 | 160.0 | 5 | 5 | 370 | 0.64 |
| 250 | 276 | 190.0 | 210.0 | 5 | 5 | 360 | 0.8 |
| 300 | 327 | 240.0 | 260.0 | 5 | 5 | 350 | 0.96 |
| 350 | 376 | 290.0 | 310.0 | 5 | 5 | 330 | 1.12 |
| 400 | 426 | 340.0 | 360.0 | 5 | 5 | 310 | 1.28 |
| 450 | 475 | 390.0 | 410.0 | 5 | 5 | 290 | 1.46 |
| 500 | 524 | 440.0 | 460.0 | 5 | 5 | 280 | 1.6 |
| Model | Size | Type | Length*1 | ||
| FBL | 51 | H | + | 660L | |
| FBL | 27 | S : Single slide | Length in millimeters then "L" | ||
| 35 | D : Double slide for 27 and 35 sizes | ||||
| 51 | E : Compact double slide | ||||
| 56 | E-P14 : E type plus inner rail lock/release spring | ||||
| G-P14 : Double slide with two S type attached front-to-front plus inner rail lock/release spring | |||||
| H : Double slide for 51 and 56 sizes |
