FBL35G-P14

Medium Load-Inner Rail Detachable
(Stroke 327 - 734 mm)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

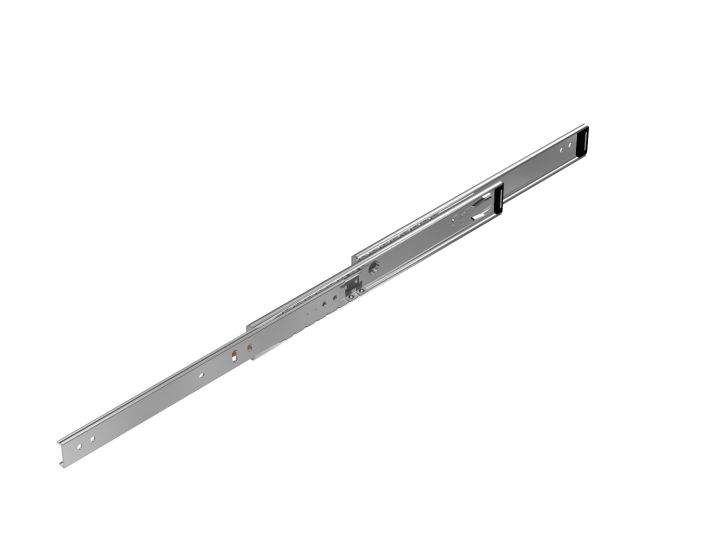

A double-slide type that combines two units of model FBL 35S front-to-front. Releasing the automatic free disconnection spring attached on the inner rail allows the inner rail to be pulled out. When folded, the locked state with the disconnect spring can automatically be released with force above a certain level in the folding direction. It is also equipped with a pull-lock mechanism that functions when the slide rail is fully extended.

Downloads - Log In required

Don't have an account?

In stock

*Please contact THK if you need more than available quantity or out of stock items

Attributes	Part Number	CAD	Online Store Unit Price (USD)	Days to Ship	Stroke (mm)	Permissible Load per Pair (N)
Stroke (mm): 327 Permissible Load per Pair (N): 623	FBL35G-P14+305L	CAD	–	Days to Ship: 3 - 4 weeks	Stroke (mm): 327	Permissible Load per Pair (N): 623
Stroke (mm): 378 Permissible Load per Pair (N): 586	FBL35G-P14+356L	CAD	–	Days to Ship: 3 - 4 weeks	Stroke (mm): 378	Permissible Load per Pair (N): 586
Stroke (mm): 429 Permissible Load per Pair (N): 555	FBL35G-P14+406L	CAD	–	Days to Ship: 3 - 4 weeks	Stroke (mm): 429	Permissible Load per Pair (N): 555
Stroke (mm): 480 Permissible Load per Pair (N): 516	FBL35G-P14+457L	CAD	–	Days to Ship: 3 - 4 weeks	Stroke (mm): 480	Permissible Load per Pair (N): 516
Stroke (mm): 530 Permissible Load per Pair (N): 475	FBL35G-P14+508L	CAD	–	Days to Ship: 3 - 4 weeks	Stroke (mm): 530	Permissible Load per Pair (N): 475
Stroke (mm): 581 Permissible Load per Pair (N): 444	FBL35G-P14+559L	CAD	–	Days to Ship: 3 - 4 weeks	Stroke (mm): 581	Permissible Load per Pair (N): 444
Stroke (mm): 532 Permissible Load per Pair (N): 413	FBL35G-P14+610L	CAD	–	Days to Ship: 3 - 4 weeks	Stroke (mm): 532	Permissible Load per Pair (N): 413
Stroke (mm): 683 Permissible Load per Pair (N): 382	FBL35G-P14+660L	CAD	–	Days to Ship: 3 - 4 weeks	Stroke (mm): 683	Permissible Load per Pair (N): 382
Stroke (mm): 734 Permissible Load per Pair (N): 355	FBL35G-P14+711L	CAD	–	Days to Ship: 3 - 4 weeks	Stroke (mm): 734	Permissible Load per Pair (N): 355

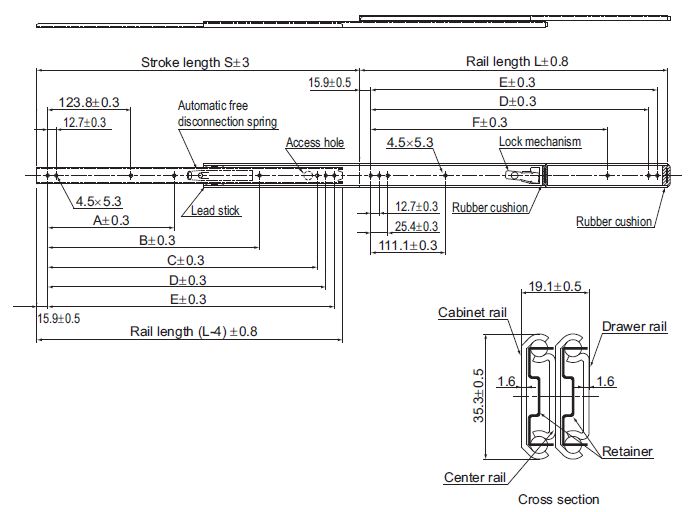

Specifications


Rail lengthL(±0.8)	StrokeS(±3)	Mounting hole dimensions						Mounting holes		Permissible load	Mass
		Mounting hole dimensions						Mounting holes
		A	B	C	D	E	F	Drawer rail	Cabinet rail
mm	mm	mm	mm	mm	mm	mm	mm	Drawer rail	Cabinet rail	N/pair	kg/pair
305	327	—	—	—	260.3	273.0	—	5	6	623	1.2
356	378	—	—	298.4	311.1	323.8	—	6	6	586	1.4
406	429	—	—	349.2	361.9	374.6	250.8	6	7	555	1.6
457	480	212.7	—	400.0	412.7	425.4	301.6	7	7	516	1.8
508	530	238.1	365.1	450.8	463.5	476.2	352.4	8	7	475	2
559	581	263.5	415.9	501.6	514.3	527.0	403.2	8	7	444	2.2
610	632	288.9	466.7	552.4	565.1	577.8	454.0	8	7	413	2.4
660	683	314.3	517.5	603.2	615.9	628.6	504.8	8	7	382	2.6
711	734	339.7	568.3	654.0	666.7	679.4	555.6	8	7	355	2.8

Model Number Coding

Note 1: see the Specifications tab for standard lengths
Model	Size	Type		Length^*1
FBL	51	H	+	660L

FBL	27	S : Single slide		Length in millimeters then "L"
	35	D : Double slide for 27 and 35 sizes
	51	E : Compact double slide
	56	E-P14 : E type plus inner rail lock/release spring
		G-P14 : Double slide with two S type attached front-to-front plus inner rail lock/release spring
		H : Double slide for 51 and 56 sizes
