    FBL35S

    Light Load
    (Stroke 229 - 508 mm)

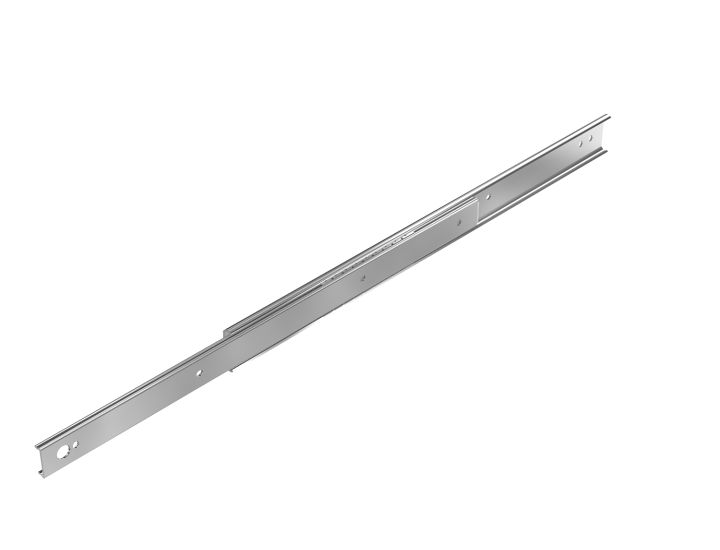

    main product photo
    Basic type of single slide

    Downloads - Log In required

    Hide Filters Show Filters
    Shopping Options
    Stroke (mm) Clear
    10. show 4 more show less
    Permissible Load per Pair (N) Clear
    10. show 4 more show less
    Don't have an account? Sign up here.
    In stock
    Loading...
    *Please contact THK if you need more than available quantity or out of stock items
    Attributes Part Number CAD Online Store
    Unit Price (USD)    		 Quantity Days to Ship Item Total
    Stroke (mm): 229
    Permissible Load per Pair (N): 490
    		FBL35S+305L –
    		Days to Ship: 3 - 4 weeks
    Stroke (mm): 279
    Permissible Load per Pair (N): 400
    		FBL35S+356L –
    		Days to Ship: 3 - 4 weeks
    Stroke (mm): 305
    Permissible Load per Pair (N): 390
    		FBL35S+406L –
    		Days to Ship: 3 - 4 weeks
    Stroke (mm): 330
    Permissible Load per Pair (N): 380
    		FBL35S+457L –
    		Days to Ship: 3 - 4 weeks
    Stroke (mm): 381
    Permissible Load per Pair (N): 330
    		FBL35S+508L –
    		Days to Ship: 3 - 4 weeks
    Stroke (mm): 406
    Permissible Load per Pair (N): 320
    		FBL35S+559L –
    		Days to Ship: 3 - 4 weeks
    Stroke (mm): 432
    Permissible Load per Pair (N): 310
    		FBL35S+610L –
    		Days to Ship: 3 - 4 weeks
    Stroke (mm): 483
    Permissible Load per Pair (N): 280
    		FBL35S+660L –
    		Days to Ship: 3 - 4 weeks
    Stroke (mm): 508
    Permissible Load per Pair (N): 270
    		FBL35S+711L –
    		Days to Ship: 3 - 4 weeks
    Related Products
    1. FBL35D
      FBL35D
    2. FBL35G-P14
      FBL35G-P14
    Rail lengthL(±0.8) StrokeS(±3) Mounting hole dimensions Mounting holes Permissible
    load    		 Mass
    A B C D E F G Inner rail Outer rail
    mm mm mm mm mm mm mm mm mm N/pair kg/pair
    305229—152.4254.0—149.2260.3273.0474900.6
    356279—203.2304.8—200.0311.1323.8474000.7
    406305—254.0355.6—250.8361.9374.6473900.8
    457330203.2304.8406.4212.7301.6412.7425.4583800.9
    508381228.6355.6457.2238.1352.4463.5476.2583301.0
    559406254.0406.4508.0263.5403.2514.3527.0583201.1
    610432279.4457.2558.8288.9454.0565.1577.8583101.2
    660483304.8508.0609.6314.3504.8615.9628.6582801.3
    711508330.2558.8660.4339.7555.6666.7679.4582701.4
     Note: The Permissible Load and Mass each indicate when used as a pair of 2 units. For more detailed specifications, please download the Product Catalog with the link in the Downloads section of this product page.
    Model Size Type Length*1
    FBL 51 H + 660L
    FBL 27 S : Single slide Length in millimeters then "L"
      35 D : Double slide for 27 and 35 sizes
      51 E : Compact double slide
      56 E-P14 : E type plus inner rail lock/release spring
      G-P14 : Double slide with two S type attached front-to-front plus inner rail lock/release spring
      H : Double slide for 51 and 56 sizes
    Note 1: see the Specifications tab for standard lengths
