    LSP

    With Rack & Pinion

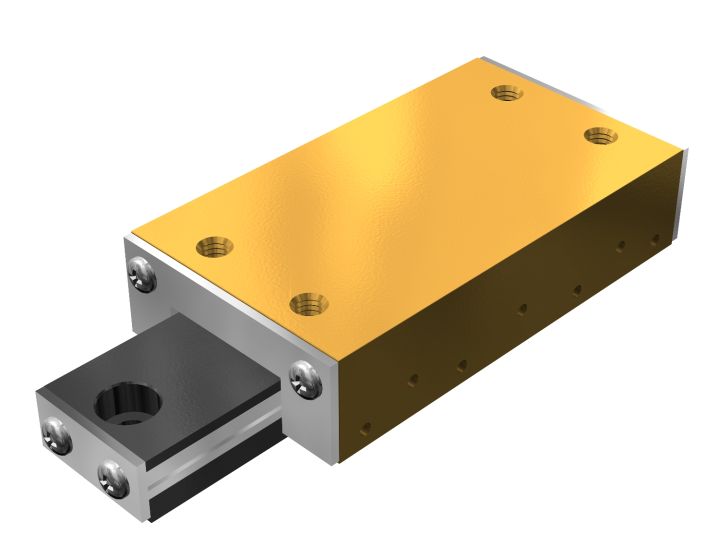

    main product photo
    Its cage, based on that of model LS, has a rack and pinion mechanism, thereby preventing the cage from slipping.

    Downloads - Log In required

    Hide Filters Show Filters
    Shopping Options
    Days to Ship Clear
    Width (mm) Clear
    Height (mm) Clear
    Don't have an account? Sign up here.
    In stock
    Loading...
    *Please contact THK if you need more than available quantity or out of stock items
    Attributes Part Number Online Store
    Unit Price (USD)    		 Quantity Days to Ship Item Total
    Width (mm): 25
    Height (mm): 13
    Max Stroke (mm): 15
    		LSP1340 –
    		Days to Ship: 3 - 4 weeks
    Width (mm): 25
    Height (mm): 13
    Max Stroke (mm): 25
    		LSP1365 –
    		Days to Ship: 3 - 4 weeks
    Width (mm): 25
    Height (mm): 13
    Max Stroke (mm): 50
    		LSP1390 –
    		Days to Ship: 3 - 4 weeks
    Width (mm): 44
    Height (mm): 20
    Max Stroke (mm): 25
    		LSP2050 –
    		Days to Ship: 3 - 4 weeks
    Width (mm): 44
    Height (mm): 20
    Max Stroke (mm): 50
    		LSP2080 –
    		Days to Ship: 3 - 4 weeks
    Width (mm): 44
    Height (mm): 20
    Max Stroke (mm): 75
    		LSP20100 –
    		Days to Ship: 3 - 4 weeks
    Width (mm): 66
    Height (mm): 25
    Max Stroke (mm): 50
    		LSP25100 –
    		Days to Ship: 3 - 4 weeks
    Width (mm): 66
    Height (mm): 25
    Max Stroke (mm): 75
    		LSP25125 –
    		Days to Ship: 3 - 4 weeks
    Width (mm): 66
    Height (mm): 25
    Max Stroke (mm): 100
    		LSP25150 –
    		Days to Ship: 3 - 4 weeks

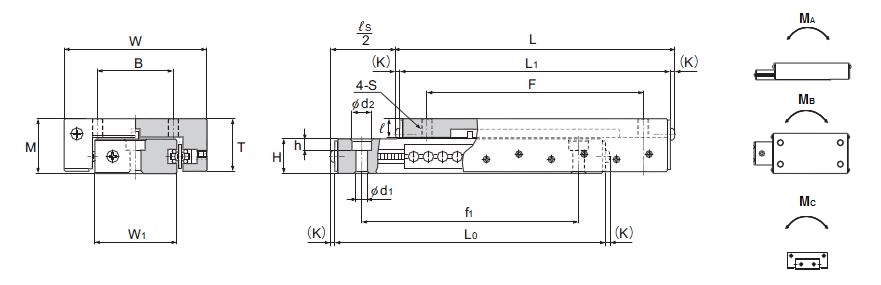

    Model No. Slide dimensions Base dimensions Static permissible moment Basic loadrating Mass
    Maxstrokels WidthW±0.25 HeightM±0.25 LengthL T L1 (K) B F S×l WidthW1 HeightH d1×d2×h LengthL0 f1
    MA , MB MC C C0
    mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm N-m N-m N N g
    LSP13401513254212.54011130M3×512.27.73.3×6×3.340300.880.4968.611837
    LSP13652513256712.56511155M3×512.27.73.3×6×3.365551.760.9811820660
    LSP13905013259212.59011180M3×512.27.73.3×6×3.390803.041.2715727585
    LSP20502520445318.3501.52035M5×8.222.3115.3×9×5.350351.372.25157284114
    LSP20805020448318.3801.52065M5×8.222.3115.3×9×5.380653.534.51304559184
    LSP2010075204410318.31001.52085M5×8.222.3115.3×9×5.31008555.69392706231
    LSP25100502566103.8241001.93575M5×8.53815.85.3×9×5.3100759.2214.55881069433
    LSP25125752566128.8241251.935100M5×8.53815.85.3×9×5.312510012.918.17351333547
     For more detailed specifications, please download the Product Catalog with the link in the Downloads section of this product page.
    Model Size: Height Size: Length
    LSP 13 40
    LSP 13 40
      20 50
      25 65
      80
      100
      125
      150
