SCB-OP

Open Type

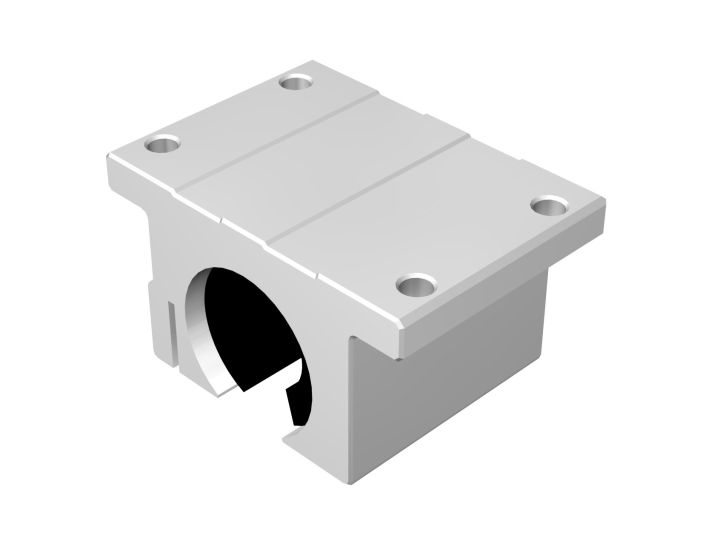

Open Type of Pillow Block/Case Unit

Downloads - Log In required

Hide Filters Show Filters
Shopping Options
Days to Ship Clear
Dust Protection Seal Clear
For Shaft O.D. (Inch) Clear
  1. show 2 more show less
In stock
Loading...
*Please contact THK if you need more than available quantity or out of stock items
Attributes Part Number Online Store
Unit Price (USD)
Quantity Days to Ship Item Total
For Shaft O.D. (Inch): 1/2
Dust Protection Seal: With Seal
SCB8UU-OP
Days to Ship: 1 - 3 days
For Shaft O.D. (Inch): 5/8
Dust Protection Seal: With Seal
SCB10UU-OP
Days to Ship: 1 - 3 days
For Shaft O.D. (Inch): 3/4
Dust Protection Seal: With Seal
SCB12UU-OP
Days to Ship: 1 - 3 days
For Shaft O.D. (Inch): 1
Dust Protection Seal: With Seal
SCB16UU-OP
Days to Ship: 1 - 3 days
For Shaft O.D. (Inch): 1 1/4
Dust Protection Seal: With Seal
SCB20UU-OP
Days to Ship: 1 - 3 days
For Shaft O.D. (Inch): 1 1/2
Dust Protection Seal: With Seal
SCB24UU-OP
Days to Ship: 1 - 3 days
For Shaft O.D. (Inch): 2
Dust Protection Seal: With Seal
SCB32UU-OP
Days to Ship: 1 - 3 days
Model No. Outer diameter Casing dimensions Inscribed bore
diameter
Basicload rating Weight
Height
M
Width
W
Length
L
Mounting hole position J±0.0012 W1±0.0012 T W2 W3 M1 L1 E Dynamic
rating
C
Static
rating
C0
B C S
in in in in in in in in in in in in in in in lbf lbf lbs
SCB8UUOP1.1002.001.501.6881.0000.160.68701.00000.250.690.750.440.990.271/22101900.185
SCB10UUOP1.4052.501.752.1251.1250.190.87501.25000.280.880.940.471.080.335/82903400.361
SCB12UUOP1.5352.751.882.3751.2500.190.93701.37500.310.941.000.511.150.393/45004300.450
SCB16UUOP1.9753.252.622.8751.7500.221.18701.62500.381.191.250.731.750.5218207801.005
SCB20UUOP2.4854.003.383.5002.0000.221.50002.00000.441.501.630.802.180.581 1/4124012701.975
SCB24UUOP2.9104.753.734.1252.5000.281.75002.37500.501.751.870.912.490.401 1/2151015402.945
SCB32UUOP3.6606.004.755.2503.2500.412.12503.00000.632.252.441.103.160.962223025805.830
For more detailed specifications, please download the Product Catalog with the link in the Downloads section of this product page.
Model Size1 Seals Type
SCB 24 UU -OP
SCB : standard case 4 : for 1/4" dia. shaft UU No symbol : standard
SLB : long case 6 : for 3/8" dia. shaft   -OP : open
  8 : for 1/2" dia. shaft
  10 : for 5/8" dia. shaft
  12 : for 3/4" dia. shaft
  16 : for 1" dia. shaft
  20 : for 1 1/4" dia. shaft
  24 : for 1 1/2" dia. shaft
  32 : for 2" dia. shaft
Note 1: Size 4 and 6 not available for open typeNote 2: Size 32 not available for model SLB
