LM-GA

Metal Retainer

Downloads - Log In required

Hide Filters Show Filters
Shopping Options
Days to Ship Clear
For Shaft O.D. (mm) Clear
  1. show 11 more show less
Dust Protection Seal Clear
In stock
Loading...
Page
*Please contact THK if you need more than available quantity or out of stock items
Attributes Part Number Online Store
Unit Price (USD)
Quantity Days to Ship Include Shaft Item Total
For Shaft O.D. (mm): 6
Dust Protection Seal: No Seal
LM6GA
Days to Ship: 3 - 4 weeks
For Shaft O.D. (mm): 6
Dust Protection Seal: With Seal
LM6GAUU
Days to Ship: 3 - 4 weeks
For Shaft O.D. (mm): 8
Dust Protection Seal: No Seal
LM8GA
Days to Ship: 3 - 4 weeks
For Shaft O.D. (mm): 8
Dust Protection Seal: With Seal
LM8GAUU
Days to Ship: 3 - 4 weeks
For Shaft O.D. (mm): 8
Dust Protection Seal: No Seal
LM8SGA
Days to Ship: 3 - 4 weeks
For Shaft O.D. (mm): 8
Dust Protection Seal: With Seal
LM8SGAUU
Days to Ship: 3 - 4 weeks
For Shaft O.D. (mm): 10
Dust Protection Seal: No Seal
LM10GA
Days to Ship: 3 - 4 weeks
For Shaft O.D. (mm): 10
Dust Protection Seal: With Seal
LM10GAUU
Days to Ship: 3 - 4 weeks
For Shaft O.D. (mm): 12
Dust Protection Seal: No Seal
LM12GA
Days to Ship: 3 - 4 weeks
For Shaft O.D. (mm): 12
Dust Protection Seal: With Seal
LM12GAUU
Days to Ship: 3 - 4 weeks
For Shaft O.D. (mm): 13
Dust Protection Seal: No Seal
LM13GA
Days to Ship: 3 - 4 weeks
For Shaft O.D. (mm): 13
Dust Protection Seal: With Seal
LM13GAUU
Days to Ship: 3 - 4 weeks
For Shaft O.D. (mm): 16
Dust Protection Seal: No Seal
LM16GA
For Shaft O.D. (mm): 16
Dust Protection Seal: With Seal
LM16GAUU
Days to Ship: 3 - 4 weeks
For Shaft O.D. (mm): 20
Dust Protection Seal: No Seal
LM20GA
Days to Ship: 3 - 4 weeks
For Shaft O.D. (mm): 20
Dust Protection Seal: With Seal
LM20GAUU
Days to Ship: 3 - 4 weeks
For Shaft O.D. (mm): 25
Dust Protection Seal: No Seal
LM25GA
Days to Ship: 3 - 4 weeks
For Shaft O.D. (mm): 25
Dust Protection Seal: With Seal
LM25GAUU
Days to Ship: 3 - 4 weeks
For Shaft O.D. (mm): 30
Dust Protection Seal: No Seal
LM30GA
Days to Ship: 3 - 4 weeks
For Shaft O.D. (mm): 30
Dust Protection Seal: With Seal
LM30GAUU
Days to Ship: 3 - 4 weeks
Page

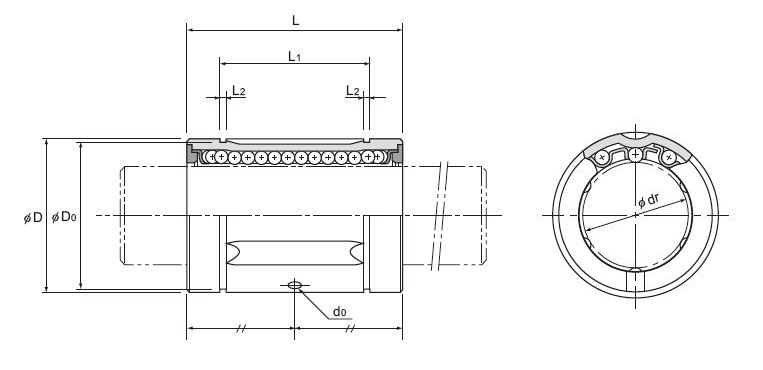

Model No. Ball rows Main dimensions Greasing hole
d0
Eccentricity
(max)
Radial clearance
tolerance
Basic load rating Mass
Inscribed bore diameter Outer diameter Length L1 Tolerance L2 D0 Dynamic
rating
C
Static
rating
C0
dr Tolerance D Tolerance L Tolerance
mm mm mm mm mm mm mm mm mm mm mm µm µm N N g
LM6GA 3 6 0-0.009 12 0-0.011 19 0-0.2 13.5 0-0.2 1.1 11.5 — 12 -5 206 265 8
LM8SGA 3 8 15 17 11.5 1.1 14.3 — 12 -5 176 225 11
LM8GA 3 8 15 24 17.5 1.1 14.3 — 12 -5 265 402 16
LM10GA 4 10 19 0-0.013 29 22 1.3 18 2 12 -5 373 549 30
LM12GA 4 12 21 30 23 1.3 20 2 12 -5 412 598 31.5
LM13GA 4 13 23 32 23 1.3 22 2 12 -7 510 775 43
LM16GA 4 16 28 37 26.5 1.6 27 2.3 12 -7 775 1180 69
LM20GA 5 20 0-0.010 32 0-0.016 42 30.5 1.6 30.5 2.3 15 -9 863 1370 87
LM25GA 5 25 40 59 0-0.3 41 0-0.3 1.85 38 3 15 -9 980 1570 220
LM30GA 6 30 45 64 44.5 1.85 43 3 15 -9 1570 2750 250
LM35GA 6 35 0-0.012 52 0-0.019 70 49.5 2.1 49 3 20 -13 1670 3140 390
LM38GA 6 38 57 76 58.5 2.1 54.5 3 20 -13 2160 4020 565
LM40GA 6 40 60 80 60.5 2.1 57 3 20 -13 2160 4020 585
LM50GA 6 50 80 0-0.022 100 74 2.6 76.5 4 20 -13 3820 7940 1580
LM60GA 6 60 0-0.015 90 110 85 3.15 86.5 4 25 -16 4710 10000 2000
LM80GA 6 80 120 140 0-0.4 105.5 0-0.4 4.15 116 4 25 -16 7350 16000 4520
LM100GA 6 100 0-0.020 150 0-0.025 175 125.5 4.15 145 4 30 -20 14100 34800 8600
LM120A 8 120 180 200 158.6 4.15 175 5 30 -25 16400 40000 15000
For more detailed specifications, please download the Product Catalog with the link in the Downloads section of this product page.
Model Nominal shaft diameter (mm) Case material Retainer material Seals
LM 12   GA
LM : metric Japan series 3~60 No symbol : Standard steel No symbol : Resin No symbol: No seals
LME : metric Eupore series   M(G) : Stainless steel GA : Metal UU : Ends seals

Model LM-GA has an oil hole as a standard feature. The above selections are Online Store standards. If you need a selection that differs from the standard, please contact us at [email protected]
