SEB

Mounting Bracket-One End Open

Skip to the end of the images gallery

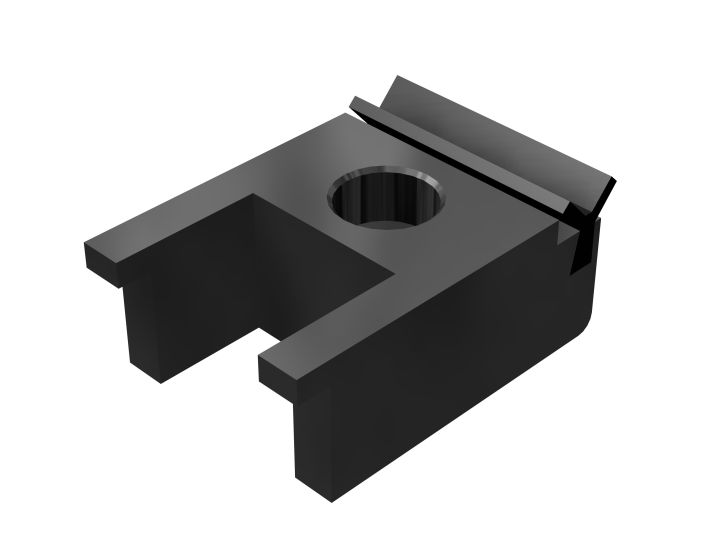

main product photo

Skip to the beginning of the images gallery

For Model LRB/LRB-Z

Downloads - Log In required

Don't have an account?

In stock

*Please contact THK if you need more than available quantity or out of stock items

Attributes	Part Number	CAD	Online Store Unit Price (USD)	Quantity	Days to Ship	Applicable Model	Item Total
Applicable Model: LRB1547Z	SEB15	CAD	–		Days to Ship: 3 - 4 weeks	Applicable Model: LRB1547Z
Applicable Model: LRB2055Z	SEB20	CAD	–		Days to Ship: 1 - 3 days	Applicable Model: LRB2055Z
Applicable Model: LRB2565Z	SEB25	CAD	–		Days to Ship: 3 - 4 weeks	Applicable Model: LRB2565Z
Applicable Model: LRB3275Z	SEB32	CAD	–		Days to Ship: 3 - 4 weeks	Applicable Model: LRB3275Z
Applicable Model: LRB4095	SEB40	CAD	–		Days to Ship: 1 - 3 days	Applicable Model: LRB4095
Applicable Model: LRB50130	SEB50	CAD	–		Days to Ship: 3 - 4 weeks	Applicable Model: LRB50130


Model No.	Main dimensions															Mass
	W	B	L₁	L₂	E	F	F₁	C	H	G	t	t₁	d	d₁	h
	W	B	L₁	L₂	E	F	F₁	C	H	G	t	t₁	d	d₁	h
	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	g
SEB15	15	22.2	26.5	22.5	19	40.5	32.5	16	15	12	3	1	5.5	9.5	5.4	64
SEB20	20.2	30	26.5	22.5	20	41.5	32.5	18	16	13	3	1	6.6	11	6.5	105
SEB25	25.5	38.1	32.5	27.5	23	49	39	23	19	15	4	1	9	14	8.6	175
SEB32	32.5	45	32.5	27.5	23	49	38	23	20	16	4	1	9	14	8.6	220
SEB40	40.5	55	40.5	35.5	25	60.5	47.5	28	29	23	6	1	11	17.5	10.8	415
SEB50	50.5	76.2	51	46	30	76	63	38	41	32	9	1	14	20	13	1245

Model Number Coding

Model	Size
SEB	15

SEB	15
	20
	25
	32
	40
	50
