    FBL35D

    Medium Load
    (Stroke 327 - 734 mm)
    main product photo
    A double-slide type that combines two units of model FBL 35S back-to-back. It is extensively used regardless of the industry.

    Downloads - Log In required

    Hide Filters Show Filters
    Shopping Options
    Stroke (mm) Clear
    10. show 4 more show less
    Permissible Load per Pair (N) Clear
    9. show 3 more show less
    Don't have an account? Sign up here.
    In stock
    Loading...
    *Please contact THK if you need more than available quantity or out of stock items
    Attributes Part Number CAD Online Store
    Unit Price (USD)    		 Quantity Days to Ship Item Total
    Stroke (mm): 327
    Permissible Load per Pair (N): 588
    		FBL35D+305L –
    		Days to Ship: 3 - 4 weeks
    Stroke (mm): 378
    Permissible Load per Pair (N): 578
    		FBL35D+356L –
    		Days to Ship: 3 - 4 weeks
    Stroke (mm): 429
    Permissible Load per Pair (N): 559
    		FBL35D+406L –
    		Days to Ship: 3 - 4 weeks
    Stroke (mm): 480
    Permissible Load per Pair (N): 549
    		FBL35D+457L –
    		Days to Ship: 3 - 4 weeks
    Stroke (mm): 530
    Permissible Load per Pair (N): 529
    		FBL35D+508L –
    		Back Order ?
    Contact us to get an ETA on shipping
    Contact Us
    Stroke (mm): 581
    Permissible Load per Pair (N): 500
    		FBL35D+559L –
    		Days to Ship: 3 - 4 weeks
    Stroke (mm): 632
    Permissible Load per Pair (N): 480
    		FBL35D+610L –
    		Days to Ship: 3 - 4 weeks
    Stroke (mm): 683
    Permissible Load per Pair (N): 461
    		FBL35D+660L –
    		Days to Ship: 3 - 4 weeks
    Stroke (mm): 734
    Permissible Load per Pair (N): 461
    		FBL35D+711L –
    		Days to Ship: 3 - 4 weeks
    Related Products
    1. FBL35S
      FBL35S
    2. FBL35G-P14
      FBL35G-P14

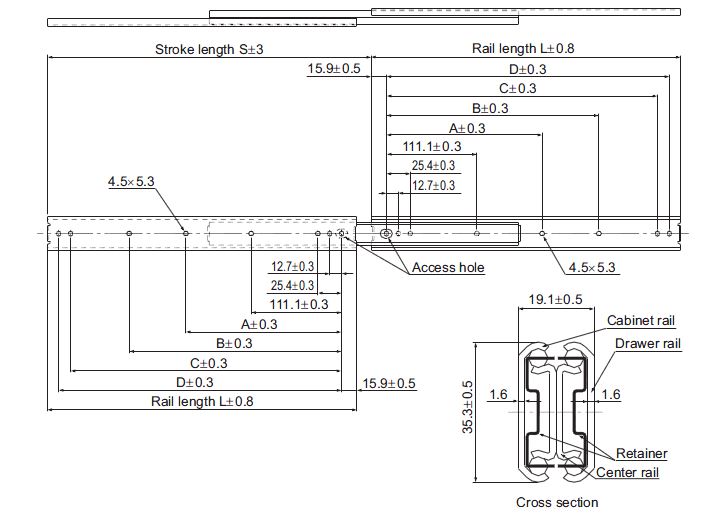

    Rail lengthL(±0.8) StrokeS(±3) Mounting hole dimensions Mounting holes Permissible
    load    		 Mass
    A B C D Drawer rail Cabinet rail
    mm mm mm mm mm mm N/pair kg/pair
    305327—149.2260.3273.0775881.28
    356378—200.0311.1323.8775781.48
    406429—250.8361.9374.6775591.72
    457480212.7301.6412.7425.4885491.96
    508530238.1352.4463.5476.2885292.12
    559581263.5403.2514.3527.0885002.4
    610632288.9454.0565.1577.8884802.56
    660683314.3504.8615.9628.6884612.8
    711734339.7555.6666.7679.4884413
     Note: The Permissible Load and Mass each indicate when used as a pair of 2 units. For more detailed specifications, please download the Product Catalog with the link in the Downloads section of this product page.
    Model Size Type Length*1
    FBL 51 H + 660L
    FBL 27 S : Single slide Length in millimeters then "L"
      35 D : Double slide for 27 and 35 sizes
      51 E : Compact double slide
      56 E-P14 : E type plus inner rail lock/release spring
      G-P14 : Double slide with two S type attached front-to-front plus inner rail lock/release spring
      H : Double slide for 51 and 56 sizes
    Note 1: see the Specifications tab for standard lengths
