    LM-GA-AJ

    Metal Retainer

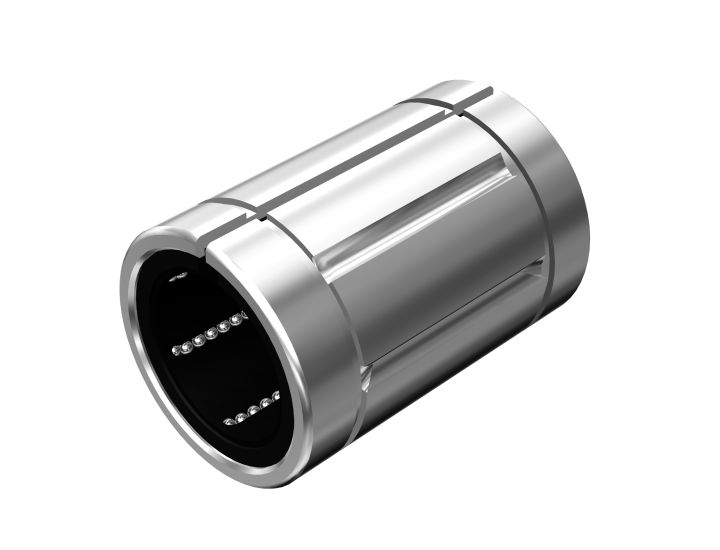

    main product photo
    This type has the same dimensions as the standard type, but the nut has a slit in the direction of the LM shaft. This allows the linear bushing to be installed in a housing whose inner diameter is adjustable, and enables the clearance between the LM shaft and the housing to easily be adjusted.

    Downloads - Log In required

    Hide Filters Show Filters
    Shopping Options
    For Shaft O.D. (mm) Clear
    14. show 8 more show less
    Dust Protection Seal Clear
    Don't have an account? Sign up here.
    In stock
    Loading...
    Page
    *Please contact THK if you need more than available quantity or out of stock items
    Attributes Part Number CAD Online Store
    Unit Price (USD)    		 Quantity Days to Ship Item Total
    For Shaft O.D. (mm): 10
    Dust Protection Seal: No Seal
    		LM10GA-AJ –
    		Days to Ship: 3 - 4 weeks
    For Shaft O.D. (mm): 12
    Dust Protection Seal: No Seal
    		LM12GA-AJ –
    		Days to Ship: 3 - 4 weeks
    For Shaft O.D. (mm): 13
    Dust Protection Seal: No Seal
    		LM13GA-AJ –
    		Days to Ship: 3 - 4 weeks
    For Shaft O.D. (mm): 13
    Dust Protection Seal: With Seal
    		LM13GAUU-AJ –
    		Days to Ship: 3 - 4 weeks
    For Shaft O.D. (mm): 16
    Dust Protection Seal: No Seal
    		LM16GA-AJ –
    		Days to Ship: 3 - 4 weeks
    For Shaft O.D. (mm): 16
    Dust Protection Seal: With Seal
    		LM16GAUU-AJ –
    		Days to Ship: 3 - 4 weeks
    For Shaft O.D. (mm): 20
    Dust Protection Seal: No Seal
    		LM20GA-AJ –
    		Days to Ship: 3 - 4 weeks
    For Shaft O.D. (mm): 20
    Dust Protection Seal: With Seal
    		LM20GAUU-AJ –
    		Days to Ship: 3 - 4 weeks
    For Shaft O.D. (mm): 25
    Dust Protection Seal: No Seal
    		LM25GA-AJ –
    		Days to Ship: 3 - 4 weeks
    For Shaft O.D. (mm): 25
    Dust Protection Seal: With Seal
    		LM25GAUU-AJ –
    		Days to Ship: 3 - 4 weeks
    For Shaft O.D. (mm): 30
    Dust Protection Seal: No Seal
    		LM30GA-AJ –
    		Days to Ship: 3 - 4 weeks
    For Shaft O.D. (mm): 35
    Dust Protection Seal: With Seal
    		LM35GAUU-AJ –
    		Days to Ship: 3 - 4 weeks
    For Shaft O.D. (mm): 38
    Dust Protection Seal: No Seal
    		LM38GA-AJ –
    		Days to Ship: 3 - 4 weeks
    For Shaft O.D. (mm): 38
    Dust Protection Seal: With Seal
    		LM38GAUU-AJ –
    		Days to Ship: 3 - 4 weeks
    For Shaft O.D. (mm): 40
    Dust Protection Seal: No Seal
    		LM40GA-AJ –
    		Days to Ship: 3 - 4 weeks
    For Shaft O.D. (mm): 40
    Dust Protection Seal: With Seal
    		LM40GAUU-AJ –
    		Days to Ship: 3 - 4 weeks
    For Shaft O.D. (mm): 50
    Dust Protection Seal: No Seal
    		LM50GA-AJ –
    		Days to Ship: 3 - 4 weeks
    For Shaft O.D. (mm): 50
    Dust Protection Seal: With Seal
    		LM50GAUU-AJ –
    		Days to Ship: 3 - 4 weeks
    For Shaft O.D. (mm): 60
    Dust Protection Seal: No Seal
    		LM60GA-AJ –
    		Days to Ship: 3 - 4 weeks
    For Shaft O.D. (mm): 60
    Dust Protection Seal: With Seal
    		LM60GAUU-AJ –
    		Days to Ship: 3 - 4 weeks
    Page

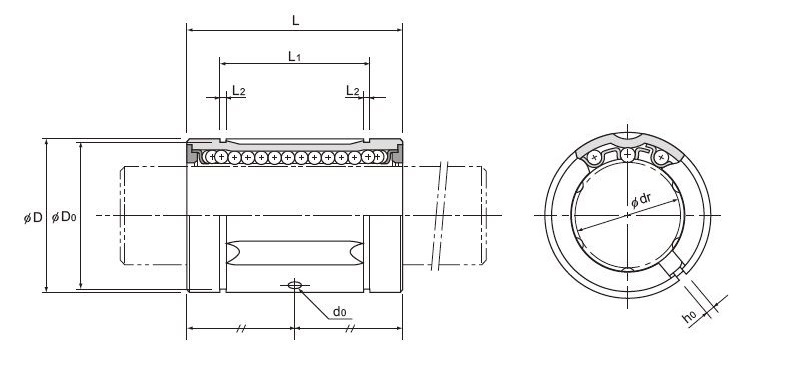

    Model No. Ball rows Main dimensions Greasing
    hole d0    		 Eccentricity
    (max)    		 Radial
    clearance
    tolerance    		 Basic load rating Mass
    Inscribed bore diameter Outer diameter Length L1 Tolerance L2 D0 h0 Dynamic
    rating
    C    		 Static
    rating
    C0
    dr Tolerance D Tolerance L Tolerance
    mm mm mm mm mm mm mm mm mm mm mm mm µm µm N N g
    LM12GA‑AJ 4 12 0-0.009 21 0-0.013 30 0-0.2 23 0-0.2 1.3 20 1.5 2 12 -5 412 598 31.5
    LM13GA‑AJ 4 13 23 32 23 1.3 22 1.5 2 12 -7 510 775 43
    LM16GA‑AJ 4 16 28 37 26.5 1.6 27 1.5 2.3 12 -7 775 1180 69
    LM20GA‑AJ 5 20 0-0.010 32 0-0.016 42 30.5 1.6 30.5 2 2.3 15 -9 863 1370 87
    LM25GA‑AJ 5 25 40 59 0-0.3 41 0-0.3 1.85 38 2 3 15 -9 980 1570 220
    LM30GA‑AJ 6 30 45 64 44.5 1.85 43 2.5 3 15 -9 1570 2750 250
    LM35GA‑AJ 6 35 0-0.012 52 0-0.019 70 49.5 2.1 49 2.5 3 20 -13 1670 3140 390
    LM38GA‑AJ 6 38 57 76 58.5 2.1 54.5 3 3 20 -13 2160 4020 565
    LM40GA‑AJ 6 40 60 80 60.5 2.1 57 3 3 20 -13 2160 4020 585
    LM50GA‑AJ 6 50 80 0-0.022 100 74 2.6 76.5 3 4 20 -13 3820 7940 1580
    LM60GA‑AJ 6 60 0-0.015 90 110 85 3.15 86.5 3 4 25 -16 4710 10000 2000
    LM80GA‑AJ 6 80 120 140 0-0.4 105.5 0-0.4 4.15 116 3 4 25 -16 7350 16000 4520
    LM100GA‑AJ 6 100 0-0.020 150 0-0.025 175 125.5 4.15 145 3 4 30 -20 14100 34800 8600
    LM120A‑AJ 8 120 180 200 158.6 4.15 175 4 5 30 -25 16400 40000 15000
    For more detailed specifications, please download the Product Catalog with the link in the Downloads section of this product page.
    Model Nominal shaft diameter (mm) Retainer material Seals Type
    LM 12 GA UU - AJ
    LM 12~120 GA (A for size 120) : Metal No symbol : No seals AJ: Clearance adjustable type
      UU : End seals
    Model LM-GA has an hole oil as a standard feature. The above selections are Online Store standards. If you need a selection that differs from the standard, please contact us at [email protected]
