    LME

    Standard Size in Europe

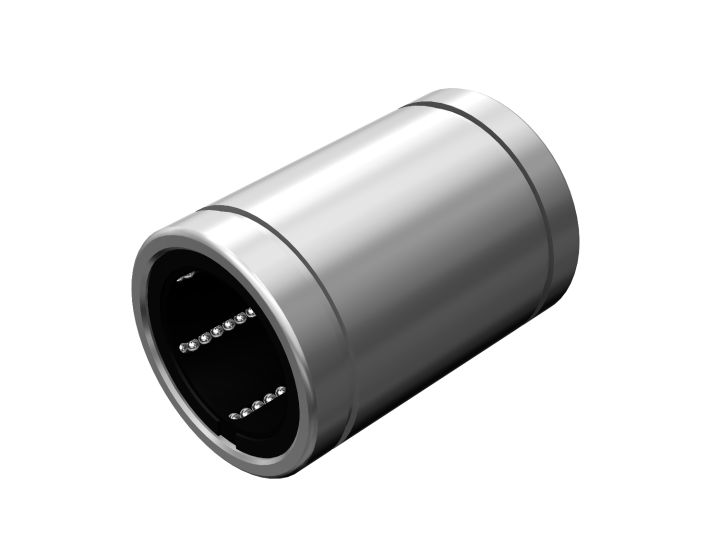

    main product photo
    Metric units series commonly used in Europe

    Downloads - Log In required

    Hide Filters Show Filters
    Shopping Options
    For Shaft O.D. (mm) Clear
    11. show 5 more show less
    Dust Protection Seal Clear
    Don't have an account? Sign up here.
    In stock
    Loading...
    *Please contact THK if you need more than available quantity or out of stock items
    Attributes Part Number CAD Online Store
    Unit Price (USD)    		 Quantity Days to Ship Item Total
    For Shaft O.D. (mm): 5
    Dust Protection Seal: No Seal
    		LME5 –
    		Days to Ship: 3 - 4 weeks
    For Shaft O.D. (mm): 5
    Dust Protection Seal: With Seal
    		LME5UU –
    		Days to Ship: 1 - 3 days
    For Shaft O.D. (mm): 8
    Dust Protection Seal: No Seal
    		LME8 –
    		Days to Ship: 3 - 4 weeks
    For Shaft O.D. (mm): 8
    Dust Protection Seal: With Seal
    		LME8UU –
    		Days to Ship: 1 - 3 days
    For Shaft O.D. (mm): 12
    Dust Protection Seal: No Seal
    		LME12 –
    		Days to Ship: 3 - 4 weeks
    For Shaft O.D. (mm): 12
    Dust Protection Seal: With Seal
    		LME12UU –
    		Days to Ship: 1 - 3 days
    For Shaft O.D. (mm): 16
    Dust Protection Seal: No Seal
    		LME16 –
    		Days to Ship: 3 - 4 weeks
    For Shaft O.D. (mm): 16
    Dust Protection Seal: With Seal
    		LME16UU –
    		Days to Ship: 1 - 3 days
    For Shaft O.D. (mm): 20
    Dust Protection Seal: No Seal
    		LME20 –
    		Days to Ship: 3 - 4 weeks
    For Shaft O.D. (mm): 20
    Dust Protection Seal: With Seal
    		LME20UU –
    		Days to Ship: 1 - 3 days
    For Shaft O.D. (mm): 25
    Dust Protection Seal: No Seal
    		LME25 –
    		Days to Ship: 3 - 4 weeks
    For Shaft O.D. (mm): 25
    Dust Protection Seal: With Seal
    		LME25UU –
    		Days to Ship: 1 - 3 days
    For Shaft O.D. (mm): 30
    Dust Protection Seal: No Seal
    		LME30 –
    		Days to Ship: 3 - 4 weeks
    For Shaft O.D. (mm): 30
    Dust Protection Seal: With Seal
    		LME30UU –
    		Days to Ship: 1 - 3 days
    For Shaft O.D. (mm): 40
    Dust Protection Seal: No Seal
    		LME40 –
    		Back Order ?
    Contact us to get an ETA on shipping
    Contact Us
    For Shaft O.D. (mm): 40
    Dust Protection Seal: With Seal
    		LME40UU –
    		Days to Ship: 1 - 3 days
    For Shaft O.D. (mm): 50
    Dust Protection Seal: No Seal
    		LME50 –
    		Days to Ship: 3 - 4 weeks
    For Shaft O.D. (mm): 50
    Dust Protection Seal: With Seal
    		LME50UU –
    		Days to Ship: 1 - 3 days
    For Shaft O.D. (mm): 60
    Dust Protection Seal: No Seal
    		LME60 –
    		Days to Ship: 3 - 4 weeks
    For Shaft O.D. (mm): 60
    Dust Protection Seal: With Seal
    		LME60UU –
    		Back Order ?
    Contact us to get an ETA on shipping
    Contact Us
    Related Products
    1. LME-GA
      LME-GA
    Model No. Ball rows Main dimensions Eccentricity
    (max)    		 Radial clearance
    tolerance    		 Basic load rating Mass
    Inscribed bore diameter Outer diameter Length L1 Tolerance L2 D0 Dynamic
    rating
    C    		 Static
    rating
    C0
    dr Tolerance D Tolerance L Tolerance
    mm mm mm mm mm mm mm mm mm mm µm µm N N g
    LME5 4 5 +0.0080 12 0-0.008 22 0-0.008 14.5 0-0.2 1.1 11.5 12 -5 206 265 11
    LME8 4 8 16 25 16.5 1.1 15.2 12 -5 265 402 20
    LME12 4 12 22 0-0.009 32 22.9 1.3 21 12 -7 510 775 41
    LME16 5 16 +0.009-0.001 26 36 24.9 1.3 24.9 12 -7 775 1180 57
    LME20 5 20 32 0-0.011 45 31.5 1.6 30.3 15 -9 863 1370 91
    LME25 6 25 +0.011-0.001 40 58 0-0.3 44.1 0-0.3 1.85 37.5 15 -9 980 1570 215
    LME30 6 30 47 68 52.1 1.85 44.5 15 -9 1570 2750 325
    LME40 6 40 +0.013-0.002 62 0-0.013 80 60.6 2.15 59 17 -13 2160 4020 705
    LME50 6 50 75 100 77.6 2.65 72 17 -13 3820 7940 1130
    LME60 6 60 90 0-0.015 125 0-0.4 101.7 0-0.4 3.15 86.5 20 -16 4710 10000 2220
    For more detailed specifications, please download the Product Catalog with the link in the Downloads section of this product page.
    Model Nominal shaft diameter (mm) Case material Retainer material Seals
    LME 60
    LM : metric Japan series 3~60 No symbol : Standard steel No symbol : Resin*1 No symbol: No seals
    LME : metric Eupore series   M(G) : Stainless steel GA : Metal UU : Ends seals

    Note 1: Since this model contains a synthetic resin retainer, do not use in environments exceeding 80°C. If ambient temperature is to exceed 80°C, use the type equipped with a metal retainer (model LM-GA, LME-GA, or LM-MGA). The above selections are Online Store standards. If you need a selection that differs from the standard, please contact us at [email protected]
