    LMH-M

    Stainless Steel LMH Type
    main product photo

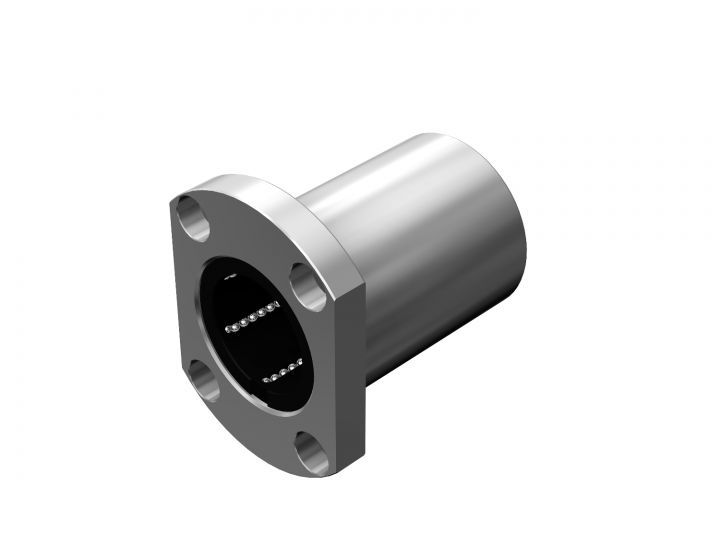

    The nut is integrated with a cut flange. Since the height is lower than square flange type, compact design is allowed.

    Downloads - Log In required

    Hide Filters Show Filters
    Shopping Options
    For Shaft O.D. (mm) Clear
    10. show 4 more show less
    Dust Protection Seal Clear
    Don't have an account? Sign up here.
    In stock
    Loading...
    *Please contact THK if you need more than available quantity or out of stock items
    Attributes Part Number CAD Online Store
    Unit Price (USD)    		 Quantity Days to Ship Item Total
    For Shaft O.D. (mm): 6
    Dust Protection Seal: No Seal
    		LMH6M –
    		Days to Ship: 3 - 4 weeks
    For Shaft O.D. (mm): 6
    Dust Protection Seal: With Seal
    		LMH6MUU –
    		Days to Ship: 1 - 3 days
    For Shaft O.D. (mm): 8
    Dust Protection Seal: No Seal
    		LMH8M –
    		Days to Ship: 3 - 4 weeks
    For Shaft O.D. (mm): 8
    Dust Protection Seal: With Seal
    		LMH8MUU –
    		Days to Ship: 1 - 3 days
    For Shaft O.D. (mm): 8
    Dust Protection Seal: No Seal
    		LMH8SM –
    		Days to Ship: 3 - 4 weeks
    For Shaft O.D. (mm): 8
    Dust Protection Seal: With Seal
    		LMH8SMUU –
    		Days to Ship: 1 - 3 days
    For Shaft O.D. (mm): 10
    Dust Protection Seal: No Seal
    		LMH10M –
    		Days to Ship: 3 - 4 weeks
    For Shaft O.D. (mm): 10
    Dust Protection Seal: With Seal
    		LMH10MUU –
    		Days to Ship: 1 - 3 days
    For Shaft O.D. (mm): 12
    Dust Protection Seal: No Seal
    		LMH12M –
    		Days to Ship: 3 - 4 weeks
    For Shaft O.D. (mm): 12
    Dust Protection Seal: With Seal
    		LMH12MUU –
    		Days to Ship: 1 - 3 days
    For Shaft O.D. (mm): 13
    Dust Protection Seal: No Seal
    		LMH13M –
    		Days to Ship: 3 - 4 weeks
    For Shaft O.D. (mm): 13
    Dust Protection Seal: With Seal
    		LMH13MUU –
    		Days to Ship: 1 - 3 days
    For Shaft O.D. (mm): 16
    Dust Protection Seal: No Seal
    		LMH16M –
    		Days to Ship: 3 - 4 weeks
    For Shaft O.D. (mm): 16
    Dust Protection Seal: With Seal
    		LMH16MUU –
    		Days to Ship: 1 - 3 days
    For Shaft O.D. (mm): 20
    Dust Protection Seal: No Seal
    		LMH20M –
    		Days to Ship: 3 - 4 weeks
    For Shaft O.D. (mm): 20
    Dust Protection Seal: With Seal
    		LMH20MUU –
    		Days to Ship: 1 - 3 days
    For Shaft O.D. (mm): 25
    Dust Protection Seal: No Seal
    		LMH25M –
    		Days to Ship: 3 - 4 weeks
    For Shaft O.D. (mm): 25
    Dust Protection Seal: With Seal
    		LMH25MUU –
    		Days to Ship: 1 - 3 days
    For Shaft O.D. (mm): 30
    Dust Protection Seal: No Seal
    		LMH30M –
    		Days to Ship: 3 - 4 weeks
    For Shaft O.D. (mm): 30
    Dust Protection Seal: With Seal
    		LMH30MUU –
    		Days to Ship: 1 - 3 days
    Model No. Ball rows Main dimensions Flange
    perpen-dicularity    		 Eccentricity
    (max)    		 Radial clearance
    tolerance    		 Basic load rating Mass
    Inscribed bore diameter Outer diameter Overall length Flange diameter K H B C Mounting holed1×d2×h Dynamic
    C    		 Static
    C0
    dr Tolerance D Tolerance L Tolerance D1 Tolerance
    mm mm mm mm mm mm mm mm µm µm µm N N g
    LMH6M 4 6 0-0.009 12 0-0.011 19 0-0.2 28 0-0.2 18 5 20 — 3.4×6.5×3.3 12 12 -5 206 265 20
    LMH8SM 4 8 15 17 32 21 5 24 — 3.4×6.5×3.3 12 12 -5 176 225 24
    LMH8M 4 8 15 24 32 21 5 24 — 3.4×6.5×3.3 12 12 -5 265 402 28
    LMH10M 4 10 19 0-0.013 29 39 25 6 29 — 4.5×8×4.4 12 12 -5 373 549 50
    LMH12M 4 12 21 30 42 27 6 32 — 4.5×8×4.4 12 12 -5 412 598 56
    LMH13M 4 13 23 32 43 29 6 33 — 4.5×8×4.4 12 12 -7 510 775 69
    LMH16M 5 16 28 37 48 34 6 31 22 4.5×8×4.4 12 12 -7 775 1180 111
    LMH20M 5 20 0-0.010 32 0-0.016 42 54 38 8 36 24 5.5×9.2×5.4 15 15 -9 863 1370 140
    LMH25M 6 25 40 59 0-0.3 62 46 8 40 32 5.5×9.2×5.4 15 15 -9 980 1570 279
    LMH30M 6 30 45 64 74 51 10 49 35 6.6×11×6.5 15 15 -9 1570 2750 351
    For more detailed specifications, please download the Product Catalog with the link in the Downloads section of this product page.
    Model Size Material Type Seals
    LMH 13     UU
    LMF : Round flange 6 No symbol : Carbon steel case with resin retainers No symbol : Normal length No symbol : No seals
    LMIF : Round reversed flange 8 M : Stainless steel case with resin retainers L : Long length UU : With seals
    LMCF : Round center flange 10
    LMK : Square flange 12
    LMIK : Square reversed flange 13
    LMCK : Square center flange 16
    LMH : Cut flange 20
    LMIH : Cut reversed flange 25
    LMCH : Cut center flange 30
