AFG

Low Heat Generation (For Ball Screw)

Skip to the beginning of the images gallery

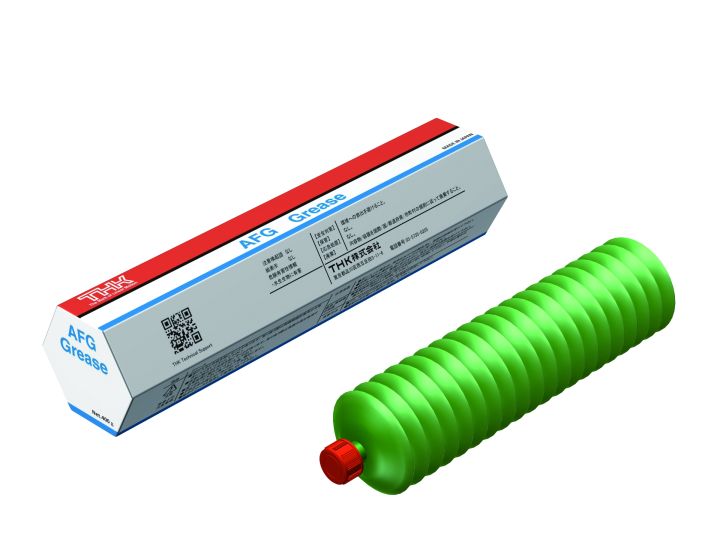

AFG Grease is a high-grade grease for Ball Screws that uses a high-grade synthetic oil as the base oil and a urea-based consistency enhancer. It excels in low heat generation and supports a wide temperature range from low to high temperature.

Downloads - Log In required

Don't have an account?

In stock

*Please contact THK if you need more than available quantity or out of stock items

Attributes	Part Number	CAD	Online Store Unit Price (USD)	Quantity	Days to Ship	Volume	Include Grease Gun	Item Total
Volume: 70 Gram	GREASE OIL AFG GRS (70G)		–		Days to Ship: 1 - 3 days	Volume: 70 Gram	Include
Volume: 400 Gram	GREASE OIL AFG GRS (400G)		–		Days to Ship: 1 - 3 days	Volume: 400 Gram	Include

Specifications

For more detailed specifications, please download the Product Catalog with the link in the Downloads section of this product page.
Property		Representative value	Test method
Consistency enhancer		Urea-based
Base oil		high-grade synthetic oil
Base oil kinematic viscosity: mm2/s (40°C)		25	ISO 2137 ISO 2176 ISO 6743 ISO 11009 ISO 12924
Worked penetration(25°C, 60 strokes)		285
NLGI Number		2
Mixing stability (100,000 strokes)		329
Dropping point °C		261
Evaporation amount: mass% (99°C, 22h)		0.2
Oil separation rate: mass% (100°C, 24h)		0.5
Copper plate corrosion (B method, 100°C, 24h)		Accepted
Low temperature torque: N-m (–20°C)	Start	170
Low temperature torque: N-m (–20°C)	revolutions	70
4-ball testing (burn-in load): N		3089	ASTM D2596
Service Temperature Range	°C	-45 to 160
Service Temperature Range	°F	-49 to 320
Color		Brown
