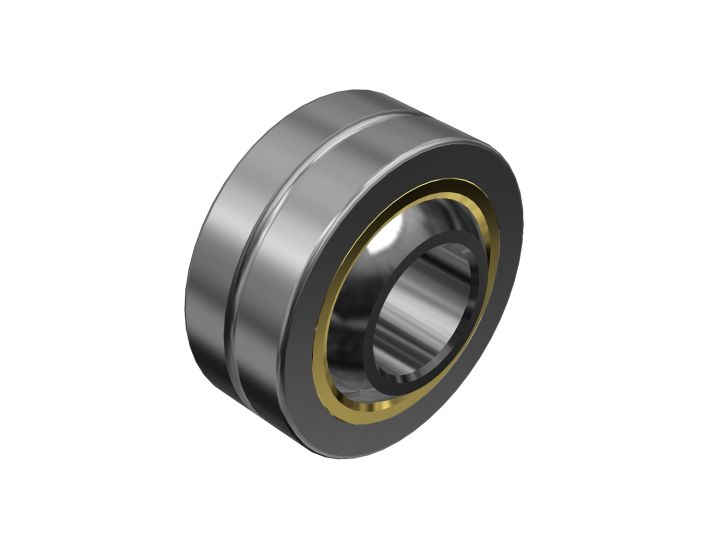

Inner Ring Diameter (mm)
Clear
Please
Log-in to see pricing, CAD Models and Catalogs
Model No. |
Main dimensions |
Permissible tilt angles |
Applied static loadRadialCs |
Mass |
Innerdiadh7 |
Outerdiadh7 |
OuterringwidthB±0.1 |
InnerringwidthB10-0.1 |
d1 |
H |
C, r |
Ball diameter Da |
α1° |
α2° |
α3° |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm (inch) |
degree |
degree |
degree |
N |
g |
PB5 | 5 | 16 | 6 | 8 | 7.7 | 1 | 0.3 | 11.112 (7/16) | 8 | 13 | 30 | 7840 | 8.5 |
PB6 | 6 | 18 | 6.75 | 9 | 9 | 1 | 0.3 | 12.7 (1/2) | 8 | 13 | 30 | 9800 | 13 |
PB8 | 8 | 22 | 9 | 12 | 10.4 | 1 | 0.5 | 15.875 (5/8) | 8 | 14 | 25 | 16700 | 24 |
PB10 | 10 | 26 | 10.5 | 14 | 12.9 | 1.2 | 0.5 | 19.05 (3/4) | 8 | 14 | 25 | 23500 | 39 |
PB12 | 12 | 30 | 12 | 16 | 15.4 | 1.5 | 0.5 | 22.225 (7/8) | 8 | 13 | 25 | 31400 | 58 |
PB14 | 14 | 34 | 13.5 | 19 | 16.9 | 1.5 | 0.7 | 25.4 (1) | 10 | 16 | 24 | 40200 | 84 |
PB16 | 16 | 38 | 15 | 21 | 19.4 | 2.5 | 0.7 | 28.575 (1 1/8) | 9 | 15 | 24 | 50000 | 111 |
PB18 | 18 | 42 | 16.5 | 23 | 21.9 | 2.5 | 0.7 | 31.75 (1 1/4) | 9 | 15 | 24 | 61800 | 160 |
PB20 | 20 | 46 | 18 | 25 | 24.4 | 2.5 | 0.7 | 34.925 (1 3/8) | 9 | 15 | 24 | 73500 | 210 |
PB22 | 22 | 50 | 20 | 28 | 25.8 | 2.5 | 0.7 | 38.1 (1 1/2) | 10 | 15 | 23 | 88200 | 265 |
PB25 | 25 | 56 | 22 | 31 | 29.6 | 3 | 0.8 | 42.862 (1 11/16) | 9 | 15 | 23 | 111000 | 390 |
PB30 | 30 | 66 | 25 | 37 | 34.8 | 3 | 0.8 | 50.8 (2) | 10 | 17 | 23 | 148000 | 610 |
For more detailed specifications, please download the Product Catalog with the link in the Downloads section of this product page.
Model |
Size |
PB |
10 |
|
|
PB |
5 |
 |
6 |
 |
8 |
 |
10 |
 |
12 |
 |
14 |
 |
16 |
 |
18 |
 |
20 |
 |
22 |
 |
25 |
 |
30 |
