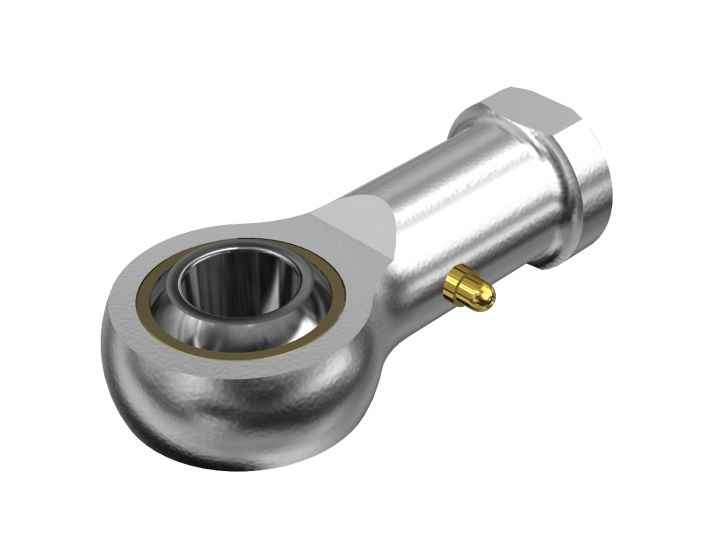

THK Store-PHS

Attributes	Part Number	CAD	Online Store Unit Price (USD)	Days to Ship	Inner Ring Diameter (mm)	Thread Direction	Thread Size (mm)
Inner Ring Diameter (mm): 5 Thread Direction: Right-Hand Thread Size (mm): M5 x 0.8	PHS5	CAD	–	Days to Ship: 3 - 4 weeks	Inner Ring Diameter (mm): 5	Thread Direction: Right-Hand	Thread Size (mm): M5 x 0.8
Inner Ring Diameter (mm): 5 Thread Direction: Left-Hand Thread Size (mm): M5 x 0.8	PHS5L	CAD	–	Days to Ship: 3 - 4 weeks	Inner Ring Diameter (mm): 5	Thread Direction: Left-Hand	Thread Size (mm): M5 x 0.8
Inner Ring Diameter (mm): 6 Thread Direction: Right-Hand Thread Size (mm): M6 x 1	PHS6	CAD	–	Days to Ship: 3 - 4 weeks	Inner Ring Diameter (mm): 6	Thread Direction: Right-Hand	Thread Size (mm): M6 x 1
Inner Ring Diameter (mm): 6 Thread Direction: Left-Hand Thread Size (mm): M6 x 1	PHS6L	CAD	–	Days to Ship: 3 - 4 weeks	Inner Ring Diameter (mm): 6	Thread Direction: Left-Hand	Thread Size (mm): M6 x 1
Inner Ring Diameter (mm): 8 Thread Direction: Right-Hand Thread Size (mm): M8 x 1.25	PHS8	CAD	–	Days to Ship: 3 - 4 weeks	Inner Ring Diameter (mm): 8	Thread Direction: Right-Hand	Thread Size (mm): M8 x 1.25
Inner Ring Diameter (mm): 8 Thread Direction: Left-Hand Thread Size (mm): M8 x 1.25	PHS8L	CAD	–	Days to Ship: 3 - 4 weeks	Inner Ring Diameter (mm): 8	Thread Direction: Left-Hand	Thread Size (mm): M8 x 1.25
Inner Ring Diameter (mm): 10 Thread Direction: Right-Hand Thread Size (mm): M10 x 1.5	PHS10	CAD	–	Days to Ship: 3 - 4 weeks	Inner Ring Diameter (mm): 10	Thread Direction: Right-Hand	Thread Size (mm): M10 x 1.5
Inner Ring Diameter (mm): 10 Thread Direction: Left-Hand Thread Size (mm): M10 x 1.5	PHS10L	CAD	–	Days to Ship: 3 - 4 weeks	Inner Ring Diameter (mm): 10	Thread Direction: Left-Hand	Thread Size (mm): M10 x 1.5
Inner Ring Diameter (mm): 12 Thread Direction: Right-Hand Thread Size (mm): M12 x 1.75	PHS12	CAD	–	Days to Ship: 3 - 4 weeks	Inner Ring Diameter (mm): 12	Thread Direction: Right-Hand	Thread Size (mm): M12 x 1.75
Inner Ring Diameter (mm): 12 Thread Direction: Left-Hand Thread Size (mm): M12 x 1.75	PHS12L	CAD	–	Days to Ship: 3 - 4 weeks	Inner Ring Diameter (mm): 12	Thread Direction: Left-Hand	Thread Size (mm): M12 x 1.75
Inner Ring Diameter (mm): 14 Thread Direction: Right-Hand Thread Size (mm): M14 x 2	PHS14	CAD	–	Days to Ship: 3 - 4 weeks	Inner Ring Diameter (mm): 14	Thread Direction: Right-Hand	Thread Size (mm): M14 x 2
Inner Ring Diameter (mm): 14 Thread Direction: Left-Hand Thread Size (mm): M14 x 2	PHS14L	CAD	–	Days to Ship: 3 - 4 weeks	Inner Ring Diameter (mm): 14	Thread Direction: Left-Hand	Thread Size (mm): M14 x 2
Inner Ring Diameter (mm): 16 Thread Direction: Right-Hand Thread Size (mm): M16 x 2	PHS16	CAD	–	Days to Ship: 3 - 4 weeks	Inner Ring Diameter (mm): 16	Thread Direction: Right-Hand	Thread Size (mm): M16 x 2
Inner Ring Diameter (mm): 16 Thread Direction: Left-Hand Thread Size (mm): M16 x 2	PHS16L	CAD	–	Days to Ship: 3 - 4 weeks	Inner Ring Diameter (mm): 16	Thread Direction: Left-Hand	Thread Size (mm): M16 x 2
Inner Ring Diameter (mm): 18 Thread Direction: Right-Hand Thread Size (mm): M18 x 1.5	PHS18	CAD	–	Days to Ship: 3 - 4 weeks	Inner Ring Diameter (mm): 18	Thread Direction: Right-Hand	Thread Size (mm): M18 x 1.5
Inner Ring Diameter (mm): 18 Thread Direction: Left-Hand Thread Size (mm): M18 x 1.5	PHS18L	CAD	–	Days to Ship: 3 - 4 weeks	Inner Ring Diameter (mm): 18	Thread Direction: Left-Hand	Thread Size (mm): M18 x 1.5
Inner Ring Diameter (mm): 20 Thread Direction: Right-Hand Thread Size (mm): M20 x 1.5	PHS20	CAD	–	Days to Ship: 3 - 4 weeks	Inner Ring Diameter (mm): 20	Thread Direction: Right-Hand	Thread Size (mm): M20 x 1.5
Inner Ring Diameter (mm): 20 Thread Direction: Left-Hand Thread Size (mm): M20 x 1.5	PHS20L	CAD	–	Days to Ship: 3 - 4 weeks	Inner Ring Diameter (mm): 20	Thread Direction: Left-Hand	Thread Size (mm): M20 x 1.5
Inner Ring Diameter (mm): 22 Thread Direction: Right-Hand Thread Size (mm): M22 x 1.5	PHS22	CAD	–	Days to Ship: 3 - 4 weeks	Inner Ring Diameter (mm): 22	Thread Direction: Right-Hand	Thread Size (mm): M22 x 1.5
Inner Ring Diameter (mm): 22 Thread Direction: Left-Hand Thread Size (mm): M22 x 1.5	PHS22L	CAD	–	Days to Ship: 3 - 4 weeks	Inner Ring Diameter (mm): 22	Thread Direction: Left-Hand	Thread Size (mm): M22 x 1.5


Model No.	Outer dimensions			ThreadedS₁JIS Class 2	Holder dimensions							Greasenipple	Spherical inner ring dimensions				Permissible tilt angles			Applied static loadRadialC_s	Mass
	LengthL	DiameterD	WidthB₁0-0.1		W0-0.2	D₁	D₂	B±0.1	L₁	L₂	l		dH7	Ball diameter Da	d₁	C	α₁°	α₂°	α₃°
	LengthL	DiameterD	WidthB₁0-0.1		W0-0.2	D₁	D₂	B±0.1	L₁	L₂	l		dH7	Ball diameter Da	d₁	C	α₁°	α₂°	α₃°
	mm	mm	mm		mm	mm	mm	mm	mm	mm	mm		mm	mm (inch)	mm	mm	degree	degree	degree	N	g
PHS5	35	16	8	M5×0.8	9	9	11	6	27	4	14	PB107	5	11.112(7/16)	7.7	0.3	8	13	30	5590	16.5
PHS6	39	18	9	M6×1	11	10	13	6.75	30	5	14		6	12.7(1/2)	9	0.3	8	13	30	6860	25
PHS8	47	22	12	M8×1.25	14	12.5	16	9	36	5	17		8	15.875(5/8)	10.4	0.5	8	14	25	9800	43
PHS10	56	26	14	M10×1.5	17	15	19	10.5	43	6.5	21		10	19.05(3/4)	12.9	0.5	8	14	25	13200	72
PHS12	65	30	16	M12×1.75	19	17.5	22	12	50	6.5	24		12	22.225(7/8)	15.4	0.5	8	13	25	16700	107
PHS14	74	34	19	M14×2	22	20	25	13.5	57	8	27		14	25.4(1)	16.9	0.7	10	16	24	20600	160
PHS16	83	38	21	M16×2	22	22	27	15	64	8	33		16	28.575(1 1/8)	19.4	0.7	9	15	24	25000	210
PHS18	92	42	23	M18×1.5	27	25	31	16.5	71	10	36		18	31.75(1 1/4)	21.9	0.7	9	15	24	29400	295
PHS20	100	46	25	M20×1.5	30	27.5	34	18	77	10	40		20	34.925(1 3/8)	24.4	0.7	9	15	24	34300	380
PHS22	109	50	28	M22×1.5	32	30	37	20	84	12	43		22	38.1(1 1/2)	25.8	0.7	10	15	23	41200	490
PHS25	124	60	31	M24×2	36	33.5	42	22	94	12	48	A-M6F	25	42.862(1 11/16)	29.6	0.8	9	15	23	72500	750
PHS30	145	70	37	M30×2	41	40	50	25	110	15	56		30	50.8(2)	34.8	0.8	10	17	23	92200	1130

Model	Size	Thread
PHS	10	L

POS : Male thread type	5	No symbol : Right-hand thread
PHS : Female thread type	6	L : Left-hand thread
	8
	10
	12
	14
	16
	18
	20
	22
	25
	30
