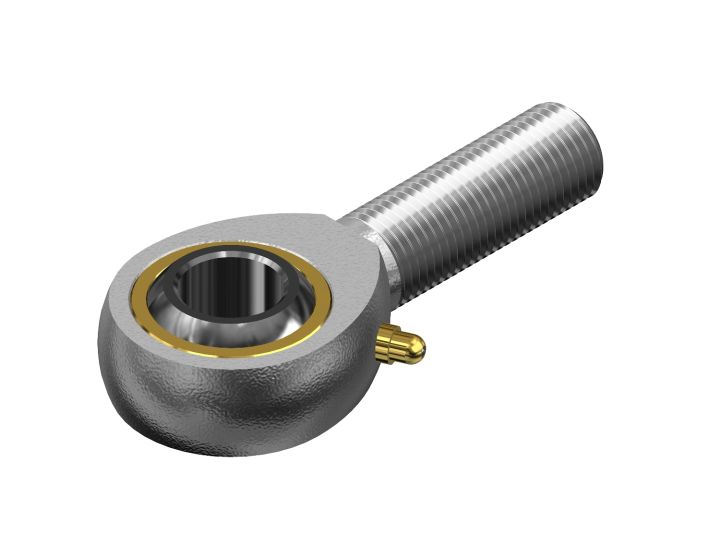

THK Store-POS

Attributes	Part Number	CAD	Online Store Unit Price (USD)	Days to Ship	Inner Ring Diameter (mm)	Thread Direction	Thread Size (mm)
Inner Ring Diameter (mm): 5 Thread Direction: Right-Hand Thread Size (mm): M5 x 0.8	POS5	CAD	–	Days to Ship: 3 - 4 weeks	Inner Ring Diameter (mm): 5	Thread Direction: Right-Hand	Thread Size (mm): M5 x 0.8
Inner Ring Diameter (mm): 5 Thread Direction: Left-Hand Thread Size (mm): M5 x 0.8	POS5L	CAD	–	Days to Ship: 3 - 4 weeks	Inner Ring Diameter (mm): 5	Thread Direction: Left-Hand	Thread Size (mm): M5 x 0.8
Inner Ring Diameter (mm): 6 Thread Direction: Right-Hand Thread Size (mm): M6 x 1	POS6	CAD	–	Days to Ship: 3 - 4 weeks	Inner Ring Diameter (mm): 6	Thread Direction: Right-Hand	Thread Size (mm): M6 x 1
Inner Ring Diameter (mm): 6 Thread Direction: Left-Hand Thread Size (mm): M6 x 1	POS6L	CAD	–	Days to Ship: 3 - 4 weeks	Inner Ring Diameter (mm): 6	Thread Direction: Left-Hand	Thread Size (mm): M6 x 1
Inner Ring Diameter (mm): 8 Thread Direction: Right-Hand Thread Size (mm): M8 x 1.25	POS8	CAD	–	Days to Ship: 3 - 4 weeks	Inner Ring Diameter (mm): 8	Thread Direction: Right-Hand	Thread Size (mm): M8 x 1.25
Inner Ring Diameter (mm): 8 Thread Direction: Left-Hand Thread Size (mm): M8 x 1.25	POS8L	CAD	–	Days to Ship: 3 - 4 weeks	Inner Ring Diameter (mm): 8	Thread Direction: Left-Hand	Thread Size (mm): M8 x 1.25
Inner Ring Diameter (mm): 10 Thread Direction: Right-Hand Thread Size (mm): M10 x 1.5	POS10	CAD	–	Days to Ship: 3 - 4 weeks	Inner Ring Diameter (mm): 10	Thread Direction: Right-Hand	Thread Size (mm): M10 x 1.5
Inner Ring Diameter (mm): 10 Thread Direction: Left-Hand Thread Size (mm): M10 x 1.5	POS10L	CAD	–	Days to Ship: 3 - 4 weeks	Inner Ring Diameter (mm): 10	Thread Direction: Left-Hand	Thread Size (mm): M10 x 1.5
Inner Ring Diameter (mm): 12 Thread Direction: Right-Hand Thread Size (mm): M12 x 1.75	POS12	CAD	–	Days to Ship: 3 - 4 weeks	Inner Ring Diameter (mm): 12	Thread Direction: Right-Hand	Thread Size (mm): M12 x 1.75
Inner Ring Diameter (mm): 12 Thread Direction: Left-Hand Thread Size (mm): M12 x 1.75	POS12L	CAD	–	Days to Ship: 3 - 4 weeks	Inner Ring Diameter (mm): 12	Thread Direction: Left-Hand	Thread Size (mm): M12 x 1.75
Inner Ring Diameter (mm): 14 Thread Direction: Right-Hand Thread Size (mm): M14 x 2	POS14	CAD	–	Days to Ship: 3 - 4 weeks	Inner Ring Diameter (mm): 14	Thread Direction: Right-Hand	Thread Size (mm): M14 x 2
Inner Ring Diameter (mm): 14 Thread Direction: Left-Hand Thread Size (mm): M14 x 2	POS14L	CAD	–	Days to Ship: 3 - 4 weeks	Inner Ring Diameter (mm): 14	Thread Direction: Left-Hand	Thread Size (mm): M14 x 2
Inner Ring Diameter (mm): 16 Thread Direction: Right-Hand Thread Size (mm): M16 x 2	POS16	CAD	–	Days to Ship: 3 - 4 weeks	Inner Ring Diameter (mm): 16	Thread Direction: Right-Hand	Thread Size (mm): M16 x 2
Inner Ring Diameter (mm): 16 Thread Direction: Left-Hand Thread Size (mm): M16 x 2	POS16L	CAD	–	Days to Ship: 3 - 4 weeks	Inner Ring Diameter (mm): 16	Thread Direction: Left-Hand	Thread Size (mm): M16 x 2
Inner Ring Diameter (mm): 18 Thread Direction: Right-Hand Thread Size (mm): M18 x 1.5	POS18	CAD	–	Days to Ship: 3 - 4 weeks	Inner Ring Diameter (mm): 18	Thread Direction: Right-Hand	Thread Size (mm): M18 x 1.5
Inner Ring Diameter (mm): 18 Thread Direction: Left-Hand Thread Size (mm): M18 x 1.5	POS18L	CAD	–	Days to Ship: 3 - 4 weeks	Inner Ring Diameter (mm): 18	Thread Direction: Left-Hand	Thread Size (mm): M18 x 1.5
Inner Ring Diameter (mm): 20 Thread Direction: Right-Hand Thread Size (mm): M20 x 1.5	POS20	CAD	–	Days to Ship: 3 - 4 weeks	Inner Ring Diameter (mm): 20	Thread Direction: Right-Hand	Thread Size (mm): M20 x 1.5
Inner Ring Diameter (mm): 20 Thread Direction: Left-Hand Thread Size (mm): M20 x 1.5	POS20L	CAD	–	Days to Ship: 3 - 4 weeks	Inner Ring Diameter (mm): 20	Thread Direction: Left-Hand	Thread Size (mm): M20 x 1.5
Inner Ring Diameter (mm): 22 Thread Direction: Right-Hand Thread Size (mm): M22 x 1.5	POS22	CAD	–	Days to Ship: 3 - 4 weeks	Inner Ring Diameter (mm): 22	Thread Direction: Right-Hand	Thread Size (mm): M22 x 1.5
Inner Ring Diameter (mm): 22 Thread Direction: Left-Hand Thread Size (mm): M22 x 1.5	POS22L	CAD	–	Days to Ship: 3 - 4 weeks	Inner Ring Diameter (mm): 22	Thread Direction: Left-Hand	Thread Size (mm): M22 x 1.5

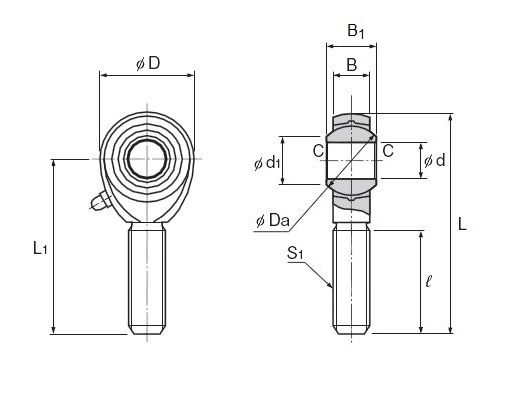

Model No.	Outer dimensions			ThreadedS₁JIS Class 2	Holder dimensions			Greasenipple(Greasinghole)	Spherical inner ring dimensions				Permissible tilt angles			Applied static loadRadialC_s	Mass
	LengthL	DiameterD	WidthB₁0-0.1		B±0.1	L₁	l		dH7	Ball diameter Da	d₁	C	α₁°	α₂°	α₃°
	LengthL	DiameterD	WidthB₁0-0.1		B±0.1	L₁	l		dH7	Ball diameter Da	d₁	C	α₁°	α₂°	α₃°
	mm	mm	mm		mm	mm	mm		mm	mm (inch)	mm	mm	degree	degree	degree	N	g
POS5	41	16	8	M5×0.8	6	33	20	(Ø1.5)	5	11.112(7/16)	7.7	0.3	8	13	30	3430	12.5
POS6	45	18	9	M6×1	6.75	36	22	(Ø1.5)	6	12.7(1/2)	9	0.3	8	13	30	4900	19
POS8	53	22	12	M8×1.25	9	42	25	PB107	8	15.875(5/8)	10.4	0.5	8	14	25	6860	32
POS10	61	26	14	M10×1.5	10.5	48	29		10	19.05(3/4)	12.9	0.5	8	14	25	10800	54
POS12	69	30	16	M12×1.75	12	54	33		12	22.225(7/8)	15.4	0.5	8	13	25	16700	85
POS14	77	34	19	M14×2	13.5	60	36		14	25.4(1)	16.9	0.7	10	16	24	20600	126
POS16	85	38	21	M16×2	15	66	40		16	28.575(1 1/8)	19.4	0.7	9	15	24	25000	185
POS18	93	42	23	M18×1.5	16.5	72	44		18	31.75(1 1/4)	21.9	0.7	9	15	24	29400	260
POS20	101	46	25	M20×1.5	18	78	47		20	34.925(1 3/8)	24.4	0.7	9	15	24	34300	340
POS22	109	50	28	M22×1.5	20	84	51		22	38.1(1 1/2)	25.8	0.7	10	15	23	41200	435
POS25	124	60	31	M24×2	22	94	57	A-M6F	25	42.862(1 11/16)	29.6	0.8	9	15	23	72500	650
POS30	145	70	37	M30×2	25	110	66	A-M6F	30	50.8(2)	34.8	0.8	10	17	23	92200	1070

Model	Size	Thread
POS	10	L

POS : Male thread type	5	No symbol : Right-hand thread
PHS : Female thread type	6	L : Left-hand thread
	8
	10
	12
	14
	16
	18
	20
	22
	25
	30
