S

Nut

Skip to the end of the images gallery

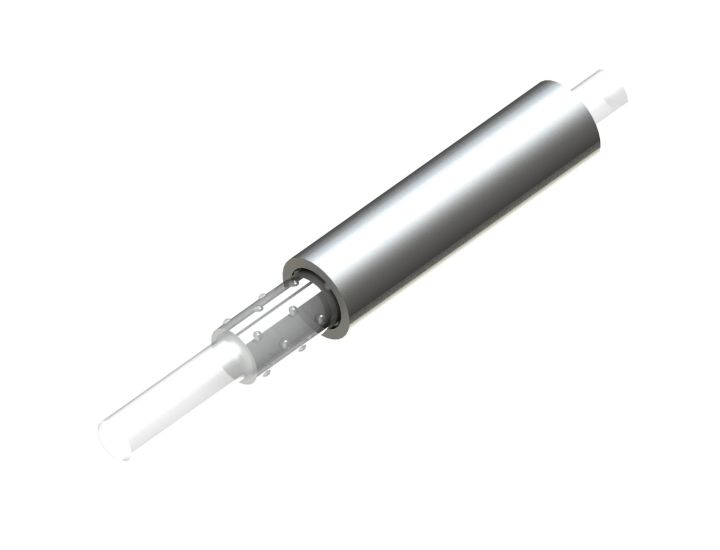

main product photo

Skip to the beginning of the images gallery

MST Assembly

Downloads - Log In required

Don't have an account?

In stock

*Please contact THK if you need more than available quantity or out of stock items

Attributes	Part Number	CAD	Online Store Unit Price (USD)	Quantity	Days to Ship	For Cage O.D. (mm)	Item Total
For Cage O.D. (mm): 5	S5710		–		Days to Ship: 3 - 4 weeks	For Cage O.D. (mm): 5
For Cage O.D. (mm): 5	S5720		–		Days to Ship: 3 - 4 weeks	For Cage O.D. (mm): 5
For Cage O.D. (mm): 5	S5730		–		Days to Ship: 3 - 4 weeks	For Cage O.D. (mm): 5
For Cage O.D. (mm): 6	S6810		–		Days to Ship: 3 - 4 weeks	For Cage O.D. (mm): 6
For Cage O.D. (mm): 6	S6820		–		Days to Ship: 3 - 4 weeks	For Cage O.D. (mm): 6
For Cage O.D. (mm): 6	S6830		–		Days to Ship: 3 - 4 weeks	For Cage O.D. (mm): 6
For Cage O.D. (mm): 7	S71010		–		Days to Ship: 3 - 4 weeks	For Cage O.D. (mm): 7
For Cage O.D. (mm): 7	S71020		–		Days to Ship: 3 - 4 weeks	For Cage O.D. (mm): 7
For Cage O.D. (mm): 7	S71030		–		Days to Ship: 3 - 4 weeks	For Cage O.D. (mm): 7
For Cage O.D. (mm): 8	S81120		–		Days to Ship: 3 - 4 weeks	For Cage O.D. (mm): 8
For Cage O.D. (mm): 8	S81130		–		Back Order ? Contact us to get an ETA on shipping Contact Us	For Cage O.D. (mm): 8
For Cage O.D. (mm): 8	S81140		–		Days to Ship: 3 - 4 weeks	For Cage O.D. (mm): 8

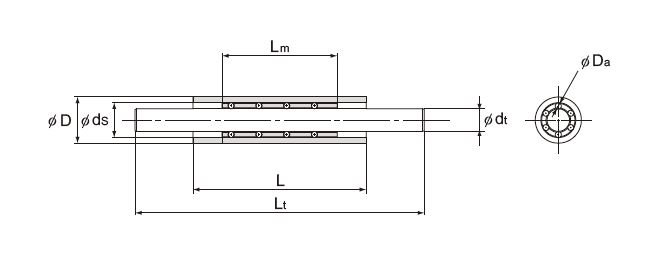

Model No.	Nut dimensions			Mass
	D	d_s	L
	D	d_s	L
	mm	mm	mm	g
S5710	7⁰_-0.006	5 ±0.002	10	1.4
S5720			20	2.9
S5730			30	4.5
S6810	8⁰_-0.006	6 ±0.002	10	1.7
S6820			20	3.6
S6830			30	5
S71010	10.0⁰_-0.006	7 ±0.002	10	2.9
S71020			20	6.3
S71030			30	10.0
S81120	11⁰_-0.006	8 ±0.002	20	7.1
S81130			30	10.0
S81140			40	12.6
