Shaft for LT-X/LF-X

Skip to the end of the images gallery

Skip to the beginning of the images gallery

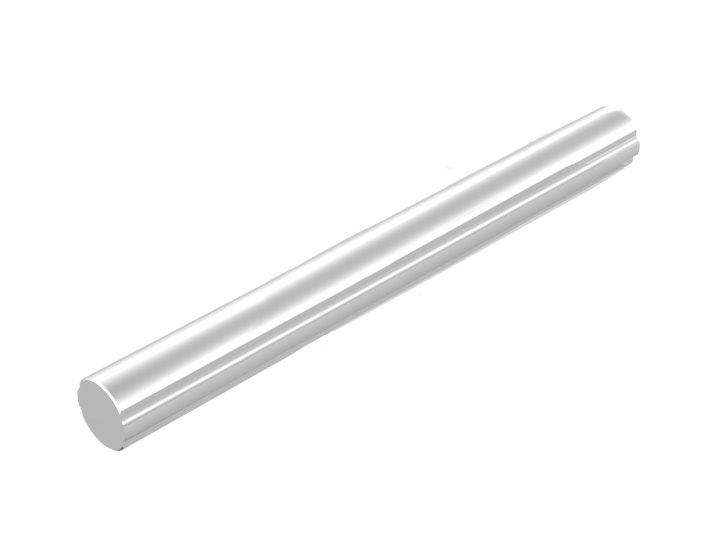

Interchangeable spline shaft for LT-X/LF-X.

Downloads - Log In required

Don't have an account?

In stock

*Please contact THK if you need more than available quantity or out of stock items

Attributes	Part Number	CAD	Online Store Unit Price (USD)	Days to Ship	Shaft O.D. (mm)	Shaft Length (mm)	Include Nut
Shaft O.D. (mm): 10 Shaft Length (mm): 500	LT10X-500L-01 SHAFT	CAD	–	Days to Ship: 1 - 3 days	Shaft O.D. (mm): 10	Shaft Length (mm): 500	Include
Shaft O.D. (mm): 10 Shaft Length (mm): 1000	LT10X-1000L-01 SHAFT	CAD	–	Days to Ship: 1 - 3 days	Shaft O.D. (mm): 10	Shaft Length (mm): 1000	Include
Shaft O.D. (mm): 13 Shaft Length (mm): 500	LT13X-500L-01 SHAFT	CAD	–	Days to Ship: 1 - 3 days	Shaft O.D. (mm): 13	Shaft Length (mm): 500	Include
Shaft O.D. (mm): 13 Shaft Length (mm): 1000	LT13X-1000L-01 SHAFT	CAD	–	Days to Ship: 1 - 3 days	Shaft O.D. (mm): 13	Shaft Length (mm): 1000	Include
Shaft O.D. (mm): 16 Shaft Length (mm): 500	LT16X-500L-01 SHAFT	CAD	–	Days to Ship: 1 - 3 days	Shaft O.D. (mm): 16	Shaft Length (mm): 500	Include
Shaft O.D. (mm): 16 Shaft Length (mm): 1000	LT16X-1000L-01 SHAFT	CAD	–	Days to Ship: 1 - 3 days	Shaft O.D. (mm): 16	Shaft Length (mm): 1000	Include
Shaft O.D. (mm): 16 Shaft Length (mm): 1500	LT16X-1500L-01 SHAFT	CAD	–	Days to Ship: 1 - 3 days	Shaft O.D. (mm): 16	Shaft Length (mm): 1500	Include
Shaft O.D. (mm): 20 Shaft Length (mm): 500	LT20X-500L-01 SHAFT	CAD	–	Days to Ship: 1 - 3 days	Shaft O.D. (mm): 20	Shaft Length (mm): 500	Include
Shaft O.D. (mm): 20 Shaft Length (mm): 1000	LT20X-1000L-01 SHAFT	CAD	–	Days to Ship: 1 - 3 days	Shaft O.D. (mm): 20	Shaft Length (mm): 1000	Include
Shaft O.D. (mm): 20 Shaft Length (mm): 1500	LT20X-1500L-01 SHAFT	CAD	–	Days to Ship: 1 - 3 days	Shaft O.D. (mm): 20	Shaft Length (mm): 1500	Include
Shaft O.D. (mm): 25 Shaft Length (mm): 1000	LT25X-1000L-01 SHAFT	CAD	–	Days to Ship: 1 - 3 days	Shaft O.D. (mm): 25	Shaft Length (mm): 1000	Include
Shaft O.D. (mm): 25 Shaft Length (mm): 2000	LT25X-2000L-01 SHAFT	CAD	–	Days to Ship: 1 - 3 days	Shaft O.D. (mm): 25	Shaft Length (mm): 2000	Include
Shaft O.D. (mm): 25 Shaft Length (mm): 3000	LT25X-3000L-01 SHAFT	CAD	–	Days to Ship: 1 - 3 days	Shaft O.D. (mm): 25	Shaft Length (mm): 3000	Include
Shaft O.D. (mm): 30 Shaft Length (mm): 1000	LT30X-1000L-01 SHAFT	CAD	–	Days to Ship: 1 - 3 days	Shaft O.D. (mm): 30	Shaft Length (mm): 1000	Include
Shaft O.D. (mm): 30 Shaft Length (mm): 2000	LT30X-2000L-01 SHAFT	CAD	–	Days to Ship: 1 - 3 days	Shaft O.D. (mm): 30	Shaft Length (mm): 2000	Include
Shaft O.D. (mm): 30 Shaft Length (mm): 3000	LT30X-3000L-01 SHAFT	CAD	–	Days to Ship: 1 - 3 days	Shaft O.D. (mm): 30	Shaft Length (mm): 3000	Include

Specifications

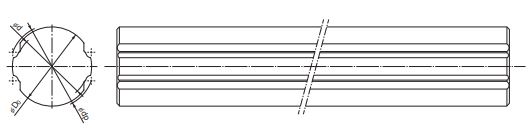

Model No.	Major diameter D⁰	Minor diameter d	Ball center-to-center diameter dp	Maximum shaft manufacturing length		Screw shaft mass
				Normal grade (No symbol)	High accuracy grade (H)
				Normal grade (No symbol)	High accuracy grade (H)
	mm	mm	mm	mm	mm	kg/m
LT10X	10	8.6	10.7	1000	500	0.59
LT13X	13	11.3	13.8	1000	500	1.01
LT16X	16	13.9	17.1	1500	750	1.52
LT20X	20	17.9	21.1	1500	750	2.41
LT25X	25	22.4	26.4	3000	1500	3.71
LT30X	30	27	31.6	3000	1500	5.37


Model No.	Basic load rating		Basic torque rating		Static permissible moment
	C	C0	CT	C0_T	MA₁**	MA₂ (With seal)**	MA₂ (Without seal)**
	C	C0	CT	C0_T	MA₁**	MA₂ (With seal)**	MA₂ (Without seal)**
	kN	kN	N-m	N-m	N-m	N-m	N-m
LT10X/LF10X	2.94	5.40	9.41	17.3	21.5	114	104
LT13X/LF13X	4.16	6.96	17.1	28.7	28.9	164	149
LT16X/LF16X	8.40	13.4	42.9	68.6	77.4	419	381
LT20X/LF20X	10.5	18.6	66.4	117	144	735	669
LT25X/LF25X	15.9	26.2	125	207	230	1183	1077
LT30X/LF30X	20.8	34.0	196	319	335	1714	1560

Model Number Coding

Model	Size	Rail Length		Shaft Machining Shape
LF-X	25	750L	+	01

LF-X	10	500L		Shape: 01
	13	1000L
	16	1500L
	20	1500L
	25	2000L
	30	3000L
