    SHS-LCM Block - Stainless

    Long C-Style Block
    main product photo

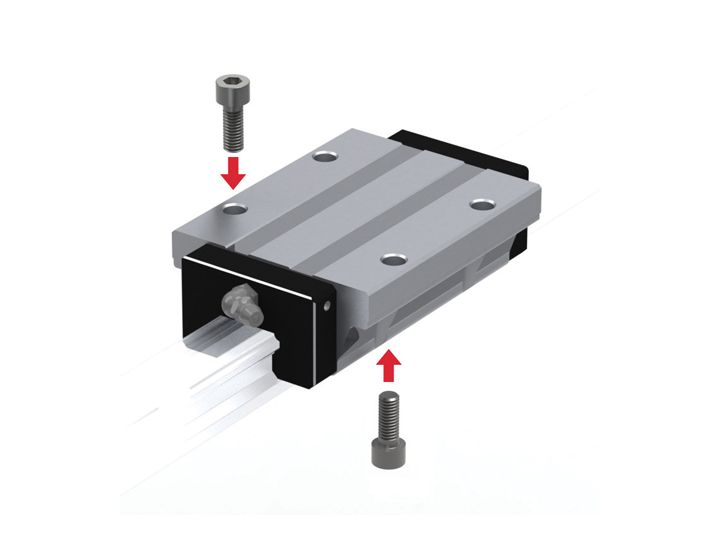

    The LM block has the same cross-sectional shape as model SHS-C, but has a longer overall LM block length (L) and a greater rated load.

    Carbon Steel version is also available

    Downloads - Log In required

    Hide Filters Show Filters
    Shopping Options
    Size Clear
    Preload Clear
    Don't have an account? Sign up here.
    In stock
    Loading...
    *Please contact THK if you need more than available quantity or out of stock items
    Attributes Part Number CAD Online Store
    Unit Price (USD)    		 Quantity Days to Ship Include Rail Item Total
    Size: 15
    Preload: No Preload
    		SHS15LC1SSM BLOCK –
    		Days to Ship: 1 - 3 days
    Size: 20
    Preload: No Preload
    		SHS20LC1SSM BLOCK –
    		Days to Ship: 1 - 3 days
    Size: 25
    Preload: No Preload
    		SHS25LC1SSM BLOCK –
    		Days to Ship: 1 - 3 days
    Related Products
    1. Stainless Rail (SHS-M)
      Stainless Rail (SHS-M)
    2. SHS-CM Block – Stainless
      SHS-CM Block – Stainless
    Model No. Outer dimensions Block dimensions Rail dimensions Basic load rating
    Radial
    Height
    M    		 Width
    W    		 Length
    L    		 B C S H Pitch
    F    		 d1xd2xh Dynamic
    rating
    C    		 Static
    rating
    C0
    mm mm mm mm mm mm mm mm kN kN
    SHS15LCM 24 47 79.4 38 30 M5 4.4 60 4.5x7.5x5.3 17.2 31.9
    SHS20LCM 30 63 98 53 40 M6 5.4 60 6x9.5x8.5 28.1 50.3
    SHS25LCM 36 70 109 57 45 M8 6.8 60 7x11x9 36.8 64.7
    AFB-LF is the default grease. For more detailed specifications, please download the Product Catalog with the link in the Downloads section of this product page.
    Model Size Block Type Block Code*1 Seal Type*2 Radial Clearance*3 Block Material
    SHS 20 C 1 SS

    _

    		 M BLOCK
    SHS 15 C 1 SS No Symbol: Normal No Symbol: Standard steel
    20 V C1: Light Preload M : Stainless steel
    25 R
    LC
    LV
    LR

    Note 1: This number is always 1 for interchangeable blocks Note 2: Contamination protection seal SS is standard for Model SHS-M. SS= end seals + side seals + inner seals

    Note 3: Radial Clearance

    units: µm
    Size Normal Light Preload
    15 -5 to 0 -12 to -5
    20 -6 to 0 -12 to -6
    25 -8 to 0 -14 to -8

    The above selections are Online Store standards. If you need a selection that differs from the standard, please contact us at [email protected]
