    SL

    Long SC Type
    main product photo

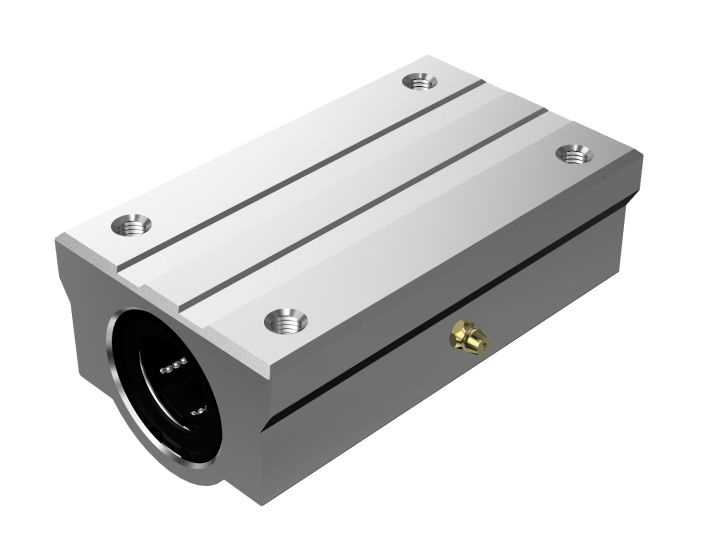

    A long version of model SC, this model contains two units of the standard type Linear Bushing in an aluminum casing.

    Downloads - Log In required

    Hide Filters Show Filters
    Shopping Options
    Days to Ship Clear
    For Shaft O.D. (mm) Clear
    10. show 4 more show less
    Don't have an account? Sign up here.
    In stock
    Loading...
    *Please contact THK if you need more than available quantity or out of stock items
    Attributes Part Number Online Store
    Unit Price (USD)    		 Quantity Days to Ship Include Shaft Item Total
    For Shaft O.D. (mm): 6
    Dust Protection Seal:
    		SL6UU –
    		Days to Ship: 3 - 4 weeks
    For Shaft O.D. (mm): 8
    Dust Protection Seal:
    		SL8UU –
    		Days to Ship: 3 - 4 weeks
    For Shaft O.D. (mm): 10
    Dust Protection Seal:
    		SL10UU –
    		Days to Ship: 3 - 4 weeks
    For Shaft O.D. (mm): 12
    Dust Protection Seal:
    		SL12UU –
    		Days to Ship: 3 - 4 weeks
    For Shaft O.D. (mm): 13
    Dust Protection Seal:
    		SL13UU –
    		Days to Ship: 3 - 4 weeks
    For Shaft O.D. (mm): 16
    Dust Protection Seal:
    		SL16UU –
    		Days to Ship: 3 - 4 weeks
    For Shaft O.D. (mm): 20
    Dust Protection Seal:
    		SL20UU –
    		Days to Ship: 3 - 4 weeks
    For Shaft O.D. (mm): 25
    Dust Protection Seal:
    		SL25UU –
    		Days to Ship: 3 - 4 weeks
    For Shaft O.D. (mm): 30
    Dust Protection Seal:
    		SL30UU –
    		Days to Ship: 1 - 3 days
    Model No. Outer dimensions LM casing dimensions Model No. of
    Linear Bushing
    to be combined    		 Basic load rating Mass
    Height
    M    		 Width
    W    		 Length
    L    		 Mounting hole position Tap
    S × l    		 Through bolt
    S2    		 Center height
    J±0.02    		 W1±0.02 K W2 T R N Inscribed bore diameter Dynamic
    rating
    C    		 Static
    rating
    C0
    B B1 C dr Tolerance
    mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm N N g
    SL6UU 18 3048 20 5 36M4×8 M3 91515286 9 7 6 0-0.009LM6UU 324 529 68
    SL8UU 22 3458 24 5 42M4×8 M3111718326 11 7 8 LM8UU 431 784 105
    SL10UU26 4068 28 6 46M5×12M4132022378 13 7 10 LM10UU 588 1100 185
    SL12UU29 4270 30.55.75 50M5×12M4152125398 14 6.5 12 LM12UU 657 1200 205
    SL13UU30 4475 33 5.5 50M5×12M4152226418 15 6.5 13 LM13UU 814 1570 242
    SL16UU38.55085 36 7 60M5×12M4192535469 19.5 6 16 LM16UU 1230 2350 403
    SL20UU42 5496 40 7 70M6×12M5212736521121 7 20 0-0.010LM20UU 1400 2750 520
    SL25UU51.576130 54 11 100M8×18M6263841681225.54 25LM25UU 1560 3140 1120
    SL30UU59.578140 58 10 110M8×18M6303949721529.55 30LM30UU 2490 5490 1440
    For more detailed specifications, please download the Product Catalog with the link in the Downloads section of this product page.
    Model Size Material Seals
    SL 13   UU
    SC : Standard case 6 No symbol : Aluminum case with resin retainers UU : With seals
    SL : Long case 8 M : Stainless steel case with resin retainers
      10
      12
      13
      16
      20
      25
      30
