SRS-GM Block

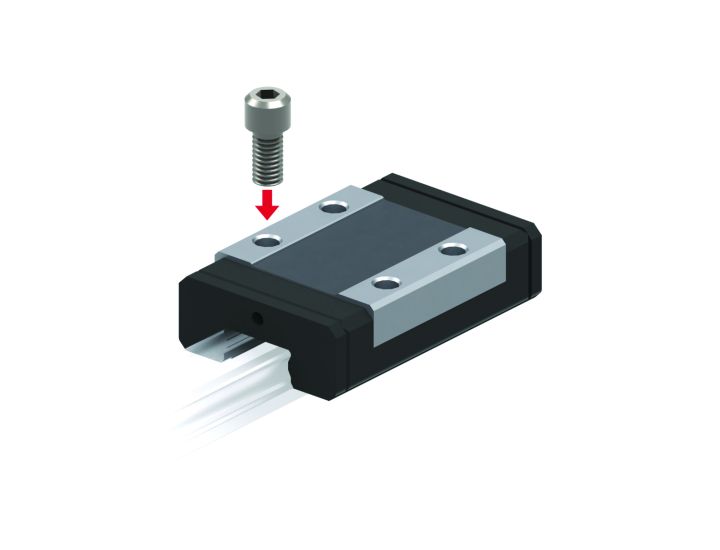

Narrow Tapped Hole

Skip to the beginning of the images gallery

A standard type of Full Ball Type Miniature LM Guide
SRS-GM Block is interchangeable with the SRS-G Rail and Not for use with the SRS-GM Set
SRS-GM Block insertion jig is used for easy insertion onto the rail, do not remove it from Block to prevent balls from dropping out until ready to transfer the Block onto the rail.

Downloads - Log In required

Don't have an account?

In stock

*Please contact THK if you need more than available quantity or out of stock items

Attributes	Part Number	CAD	Online Store Unit Price (USD)	Days to Ship	Size	Include Rail
Size: 9	SRS9XGMUU BLOCK	CAD	–	Days to Ship: 1 - 3 days	Size: 9	Include
Size: 12	SRS12GMUU BLOCK	CAD	–	Days to Ship: 1 - 3 days	Size: 12	Include
Size: 15	SRS15GMUU BLOCK	CAD	–	Days to Ship: 1 - 3 days	Size: 15	Include

Specifications

units: mm
Model No.	Outer dimensions			Block dimensions					Basic load rating
	Outer dimensions			Block dimensions					Radial
	Height M	Width W	Length L	B	C	S x l	N	Greasing hole d	Dynamic C	Static C₀
	Height M	Width W	Length L	B	C	S x l	N	Greasing hole d	kN	kN
SRS9XGM	10	20	30.8	15	10	M3 x 2.8	2.4	1.6	2.22	3.06
SRS12GM	13	27	34.4	20	15	M3 x 3.2	3	2	3.36	3.55
SRS15GM	16	32	43	25	20	M3 x 3.5	3	3	5.59	5.72

AFF is the default grease for the 9X to 15 size. For more detailed specifications, please download the Product Catalog with the link in the Downloads section of this product page.

Model Number Coding

Model	Size	Block Type	Seal Type^*1
SRS	12	GM	UU	BLOCK

SRS	9X	GM: Full complement ball standard length	UU
	12	WGM: Full complement ball standard length wide block
	15

Note 1: Contamination protection seal UU is standard for Model SRS UU = end seals The above selections are Online Store standards. If you need a selection that differs from the standard, please contact us at [email protected]
