    SRS-N Block

    Long M Type

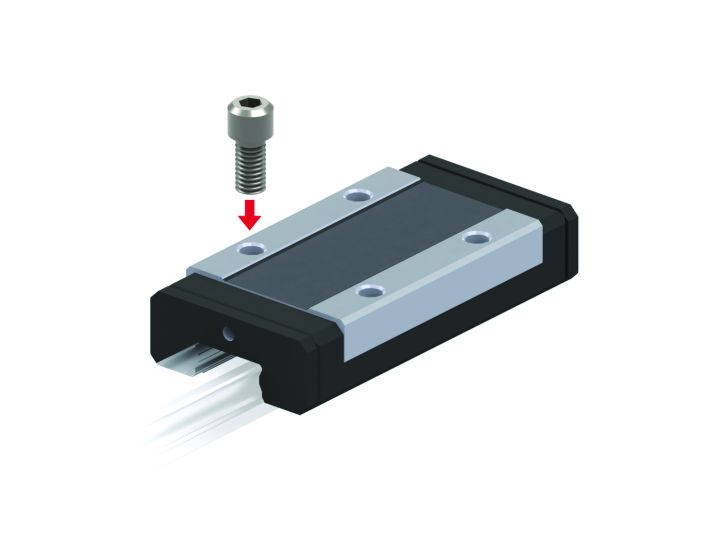

    main product photo
    The LM block has the same cross-sectional shape as model SRS-M, but has a longer overall LM block length and a greater rated load and permissible moment.
    SRS-N Block is interchangeable with the SRS-M Rail and Not for use with the SRS-M Set

    Downloads - Log In required

    Hide Filters Show Filters
    Shopping Options
    Material Clear
    Size Clear
    Don't have an account? Sign up here.
    In stock
    Loading...
    *Please contact THK if you need more than available quantity or out of stock items
    Attributes Part Number CAD Online Store
    Unit Price (USD)    		 Quantity Days to Ship Include Rail Item Total
    Size: 9
    		SRS9XNUU BLOCK –
    		Back Order ?
    Contact us to get an ETA on shipping
    Contact Us
    Size: 12
    		SRS12NUU BLOCK –
    		Days to Ship: 1 - 3 days
    Size: 15
    		SRS15NUU BLOCK –
    		Days to Ship: 1 - 3 days
    Related Products
    1. Miniature Rail (SRS-M)
      Miniature Rail (SRS-M)
    units: mm
    Model No. Outer dimensions Block dimensions Basic load rating
    Radial
    Height
    M    		 Width
    W    		 Length
    L    		 B C S x l N Greasing hole
    d    		 Dynamic
    rating
    C    		 Static
    rating
    C0
    kN kN
    SRS9XN 10 20 40.8 15 16 M3 x 2.8 2.4 1.6 3.48 3.98
    SRS12N 13 27 47.1 20 20 M3 x 3.2 3 2 5.82 5.30
    SRS15N 16 32 60.8 25 25 M3 x 3.5 3 3 9.71 8.55
    AFF is the default grease for the 9X to 15 size. For more detailed specifications, please download the Product Catalog with the link in the Downloads section of this product page.
    Model Size Block Type Seal Type*1
    SRS 12 M UU BLOCK
    SRS 9X M: Caged ball standard length UU
      12 N: Caged ball long block
      15 WM: Caged ball standard length wide block
      WN: Caged ball long wide block

    Note 1: Contamination protection seal UU is standard for Model SRS UU = end seals The above selections are Online Store standards. If you need a selection that differs from the standard, please contact us at [email protected]
