RSX-M Block

Skip to the end of the images gallery

Skip to the beginning of the images gallery

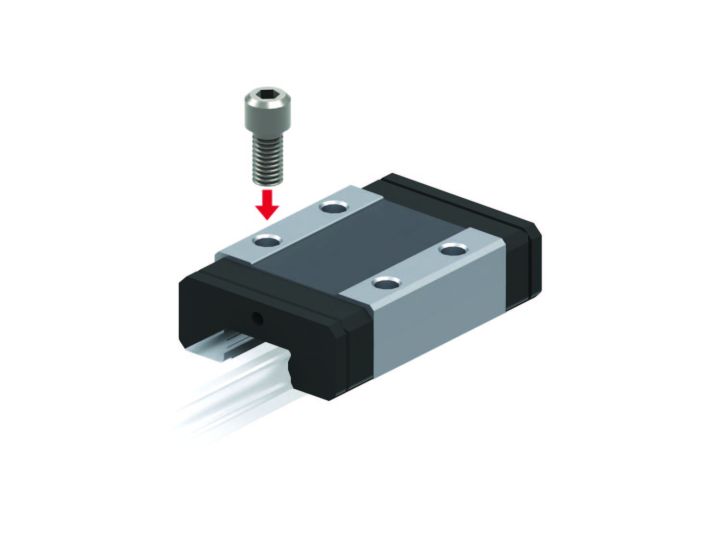

The LM block has a smaller width and tapped holes, suitable for compact designs.

Downloads - Log In required

Don't have an account?

In stock

*Please contact THK if you need more than available quantity or out of stock items

Attributes	Part Number	CAD	Online Store Unit Price (USD)	Days to Ship	Size	Include Rail
Size: 7	RSX7MUU BLOCK	CAD	–	Days to Ship: 1 - 3 days	Size: 7	Include
Size: 9	RSX9MUU BLOCK	CAD	–	Days to Ship: 1 - 3 days	Size: 9	Include
Size: 12	RSX12MUU BLOCK	CAD	–	Days to Ship: 1 - 3 days	Size: 12	Include
Size: 15	RSX15MUU BLOCK	CAD	–	Days to Ship: 1 - 3 days	Size: 15	Include

Specifications


Model No.	Outer dimensions			Block dimensions										H3	W2	Basic Load Rating		Static Permissible Moment kN-M					Mass kg
	Outer dimensions			Block dimensions												Basic Load Rating		MA		MB		MC
	Height M	Width W	Length L	B	C	S x ℓ	L1	T	K	N	E	Grease Hole d	Grease Nipple			C kN	C₀ kN	1 Block	Double Block	1 Block	Double Block	1 Block
	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm			kN	kN	mm	mm	mm	mm	mm
RSX7M	8	17	23.4	12	8	M2 x 2.6	13.4	---	6.5	1.7	---	1.2	---	1.5	5	1.16	1.54	3.27	23.1	3.77	26.7	5.96	0.008
RSX9M	10	20	30.8	15	10	M3 x 2.8	19.8	---	7.8	2.4	---	1.6	---	2.2	5.5	2.22	3.06	9.87	57.9	11.4	66.9	14.1	0.018
RSX12M	13	27	35	20	15	M3 x 3.5	20.6	5.3	10	3	---	2	---	3	7.5	3.36	4.21	14.2	92.5	14.2	92.5	27.6	0.037
RSX15M	16	32	42.9	25	20	M3 x 4	25.7	5.8	12	3	4	--	PB107	4	8.5	5.59	6.78	29	186	29	186	48.1	0.069

Model Number Coding

Model	Size	Block Type	Seal Type^*1
RSX	9	M	UU	BLOCK

RSX	7	M	UU
	9
	12
	15

Note 1: Contamination protection seal UU is standard for Model SRS UU = end seals The above selections are Online Store standards. If you need a selection that differs from the standard, please contact us at [email protected]
