SE

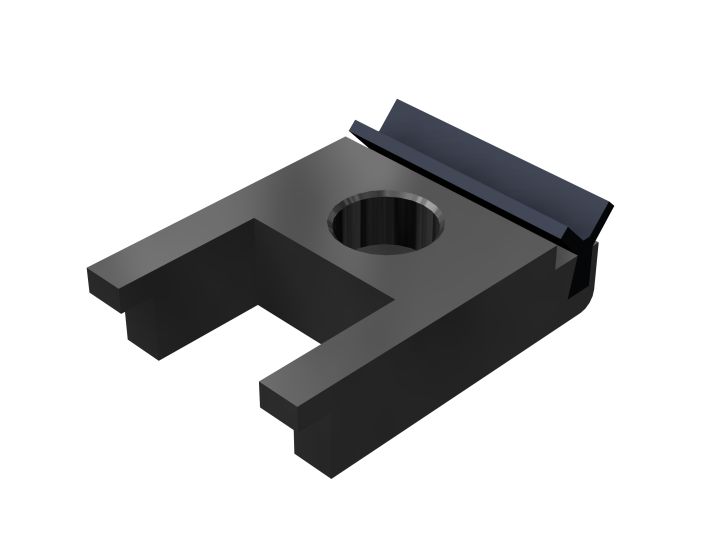

Mounting Bracket-One End Open
Low Height
For Model LRA/LRA-Z
Hide Filters Show Filters
Shopping Options
Days to Ship Clear
In stock
Loading...
*Please contact THK if you need more than available quantity or out of stock items
Attributes Part Number Unit Price Quantity Days to Ship Item Total
Applicable Model: LRA1547Z
SE15
Days to Ship: 2 - 3 weeks*
Applicable Model: LRA2055Z
SE20
Days to Ship: 2 - 3 weeks*
Applicable Model: LRA2565Z
SE25
Days to Ship: 2 - 3 weeks*
Applicable Model: LRA3275Z
SE32
Days to Ship: 2 - 3 weeks*
SE40
Out of stock
Out of stock ? Contact us to place an order
Applicable Model: LRA50130
SE50
Days to Ship: 2 - 3 weeks*
Model No. Main dimensions Mass
W B L1 L2 E F F1 C H G t t1 d d1 h
mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm g
SE151522.226.522.51940.532.51696315.59.55.435
SE2020.23026.522.52041.532.518107316.6116.560
SE2525.538.132.527.523493923128419148.6110
SE3232.54532.527.523493823139419148.6140
SE4040.55540.535.52560.547.5281913611117.510.8295
SE5050.576.2514630766338281991142013840
For more detailed specifications, please download the Product Catalog with the link in the Downloads section of this product page.
Model Size
SE 15
SE 15
  20
  25
  32
  40
  50
