SHS-LV Block

Long V-Style Block
Product Preview

  • Interchangeable Available
  • Quick Ship ?

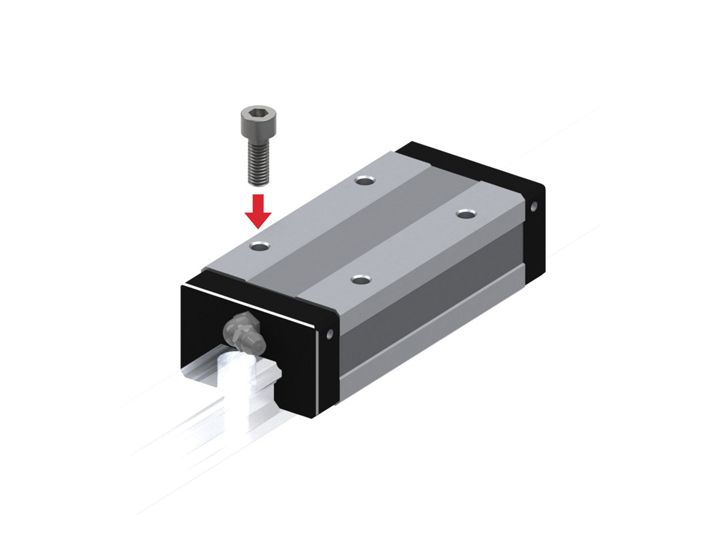

The LM block has the same cross-sectional shape as model SHS-V, but has a longer overall LM block length (L) and a greater rated load.
View specifications and model number coding
Days to Ship
Size
See more
Preload
Please Log In to see pricing

Don't have an account? Sign up here.

*Please contact THK if you need more than available quantity or out of stock items
Attributes Part Number Unit Price Quantity Days to Ship Include Rail Item Total
Size:15
Preload:No Preload
SHS15LV1SS BLOCK Days to Ship:1 - 3 days
Size:20
Preload:No Preload
SHS20LV1SS BLOCK Days to Ship:1 - 3 days
Size:25
Preload:No Preload
SHS25LV1SS BLOCK Days to Ship:2 - 3 weeks*
Size:30
Preload:No Preload
SHS30LV1SS BLOCK Days to Ship:1 - 3 days
Size:35
Preload:No Preload
SHS35LV1SS BLOCK Days to Ship:1 - 3 days
SHS45LV1SS BLOCK Out of stock ?
Size:55
Preload:No Preload
SHS55LV1SS BLOCK Days to Ship:1 - 3 days
Size:65
Preload:No Preload
SHS65LV1SS BLOCK Days to Ship:1 - 3 days
Size:15
Preload:Light Preload
SHS15LV1SSC1 BLOCK Days to Ship:1 - 3 days
Size:20
Preload:Light Preload
SHS20LV1SSC1 BLOCK Days to Ship:1 - 3 days
Size:25
Preload:Light Preload
SHS25LV1SSC1 BLOCK Days to Ship:1 - 3 days
Size:30
Preload:Light Preload
SHS30LV1SSC1 BLOCK Days to Ship:1 - 3 days
Size:35
Preload:Light Preload
SHS35LV1SSC1 BLOCK Days to Ship:1 - 3 days
Size:45
Preload:Light Preload
SHS45LV1SSC1 BLOCK Days to Ship:1 - 3 days
Size:55
Preload:Light Preload
SHS55LV1SSC1 BLOCK Days to Ship:1 - 3 days
Size:65
Preload:Light Preload
SHS65LV1SSC1 BLOCK Days to Ship:1 - 3 days
*Please contact THK if you need more than available quantity or out of stock items
Subtotal: $0.00
  • Model No. Outer dimensions Block dimensions Rail dimensions Basic load rating
    Radial
    Height
    M
    Width
    W
    Length
    L
    B C S x l Pitch
    F
    d1xd2xh Dynamic
    rating
    C
    Static
    rating
    C0
    mm mm mm mm mm mm mm mm kN kN
    SHS15LV 24 34 79.4 26 26 M4 x 4 60 4.5x7.5x5.3 17.2 31.9
    SHS20LV 30 44 98 32 50 M5 x 5 60 6x9.5x8.5 28.1 50.3
    SHS25LV 36 48 109 35 50 M6 x 6.5 60 7x11x9 36.8 64.7
    SHS30LV 42 60 131 40 60 M8 x 8 80 9x14x12 54.2 88.8
    SHS35LV 48 70 152 50 72 M8 x 10 80 9x14x12 72.9 127
    SHS45LV 60 86 174 60 80 M10 x 15 105 14x20x17 100 166
    SHS55LV 70 100 213 75 95 M12 x 15 120 16x23x20 161 259
    SHS65LV 90 126 272 76 120 M16 x 20 150 18x26x22 253 408
    AFB-LF is the default grease. For more detailed specifications, please download the Product Catalog with the link in the Downloads section of this product page.
  • Model Size Block Type Block Code*1 Seal Type*2 Radial Clearance*3
    SHS 20 C 1 SS C1 BLOCK
    SHS 15 C 1 SS No Symbol: Normal
    20 V C1: Light Preload
    25 R
    30 LC
    35 LV
    45 LR
    55
    65

    Note 1: This number is always 1 for interchangeable blocks
    Note 2: Contamination protection seal SS is standard for Model SHS
    SS = end seals + side seals + inner seals

    Note 3: Radial Clearance

    units: µm
    Size Normal Light Preload
    15 -5 to 0 -12 to -5
    20 -6 to 0 -12 to -6
    25 -8 to 0 -14 to -8
    30 -9 to 0 -17 to -9
    35 -11 to 0 -19 to -11
    45 -12 to 0 -22 to -12
    55 -15 to 0 -28 to -16
    65 -18 to 0 -34 to -22

    The above selections are Online Store standards. If you need a selection that differs from the standard, please contact us at tossales@thk.com
