To meet the needs of warehouse automation, the Utility Slide ATG combines the benefits of conventional slide rails with the technology THK cultivated with the LM Guide in order to improve the permissible load and extend the service life.

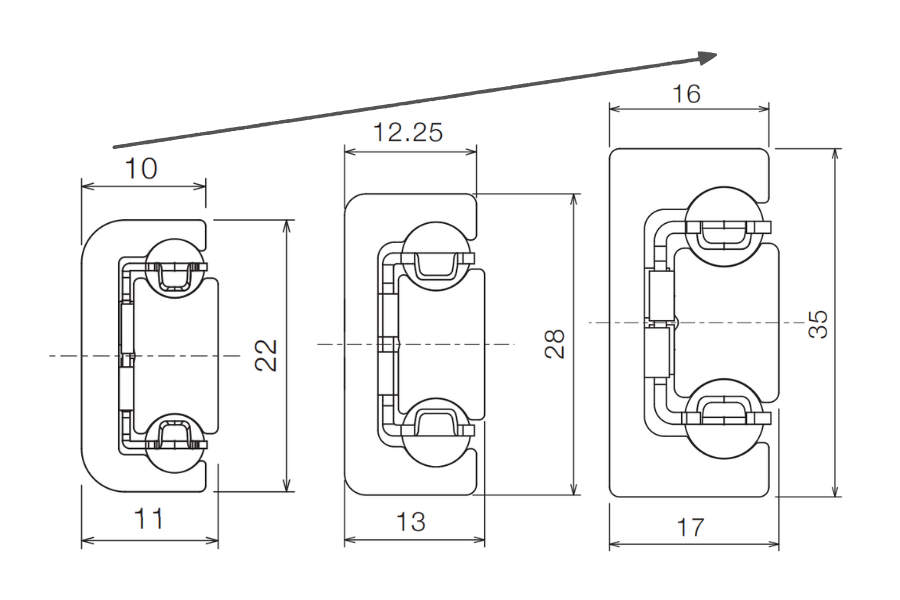

Permissible Load Per Set Increases with Size
The permissible load per set of the ATG series increases with the size of the slide rail. As the slide rail gets larger, its structural strength and load-bearing capacity improve, allowing it to support heavier loads.
ATG Features
Feature 1: Improve Permissible Load and Extended Service Life
The Model ATG distinguishes itself from conventional slide rails by heat treating the outer and inner members to
increase surface hardness and strength. The result is a high load capacity, high durability, and improved permissible
load and service life compared to conventional products.
Feature 2: Easy to Install
The circular arc grooves make the Model ATG excel at adjusting to slight inaccuracies in the mounting surface during installation.
Feature 3: Helps Prevent Locking at the Stroke End
Since the Model ATG features circular arc grooves, it experiences less differential slippage than conventional (Gothic
arch groove) products, which helps keep balls from becoming misaligned and causing the product to lock at the stroke
end. Locking cannot be entirely avoided, so this helps improve the stability of machine operations.
