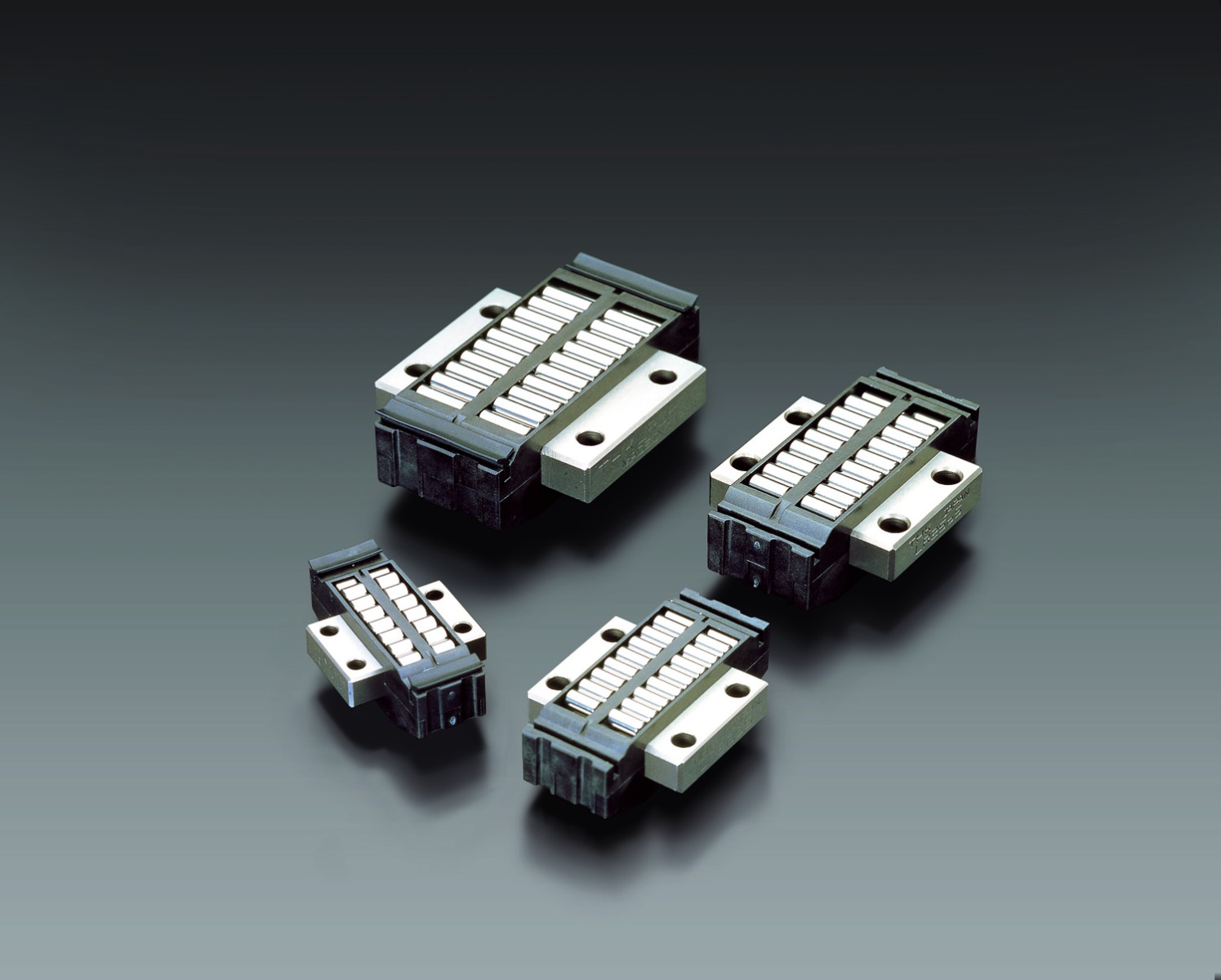

The LM Roller, a compact linear guide with high load performance and a mallet-type roller capable of infinite circular motions. Optimally designed for machines requiring high positioning accuracy, repeatability, and rigidity.
Compact LM Roller LR50130 handles 255 kN loads with minimal friction (μ= 0.005-0.01) and stick-slip free precision movement.
High Accuracy
When using multiple LM rollers on a single plane, height consistency is crucial. THK LM Rollers offer combinations with precision tolerance of just 2μm for optimal accuracy.

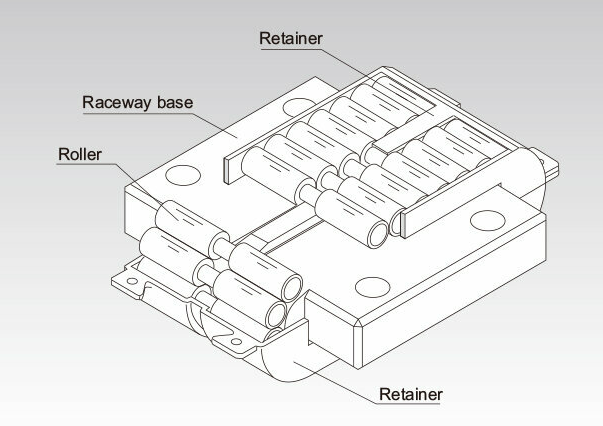

Skewing-preventing Structure
LM Roller's design prevents skewing with central roller guides on the retainer and raceway base. This self-correcting structure maintains accuracy despite mounting errors and enables versatile installation options while preserving performance.
