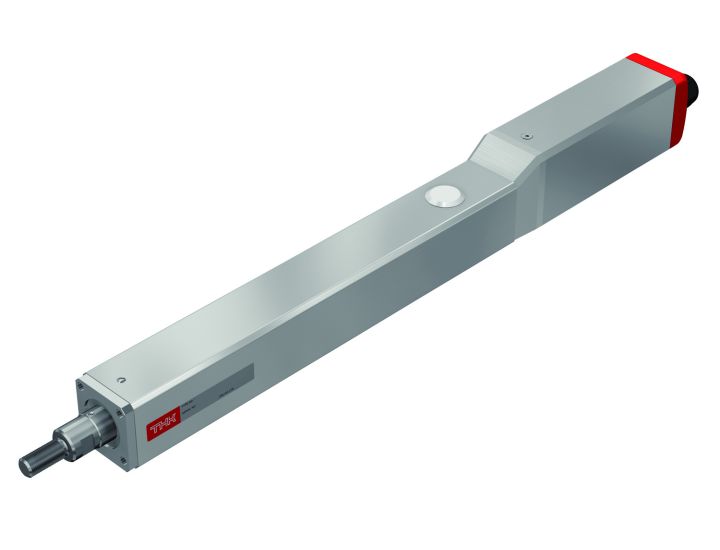

Cylinder Type of Stepper Motor Actuator
Hide Filters Show Filters
Shopping Options
Days to Ship Clear
Size Clear
Ball Screw Lead (mm) Clear
Stroke (mm) Clear
  1. show 1 more show less
In stock
Loading...
*Please contact THK if you need more than available quantity or out of stock items
Attributes Part Number Online Store
Unit Price (USD)
Quantity Days to Ship Include Driver Item Total
Size: 3
Ball Screw Lead (mm): 6
Stroke (mm): 50
EC3-06-0050B-TS/35P-D00-S3
Days to Ship: 1 - 3 days
Size: 3
Ball Screw Lead (mm): 6
Stroke (mm): 100
EC3-06-0100B-TS/35P-D00-S3
Days to Ship: 1 - 3 days
Size: 3
Ball Screw Lead (mm): 6
Stroke (mm): 150
EC3-06-0150B-TS/35P-D00-S3
Days to Ship: 1 - 3 days
Size: 3
Ball Screw Lead (mm): 6
Stroke (mm): 200
EC3-06-0200B-TS/35P-D00-S3
Days to Ship: 1 - 3 days
Size: 4
Ball Screw Lead (mm): 6
Stroke (mm): 50
EC4-06-0050B-TS/42P-D00-S3
Days to Ship: 1 - 3 days
Size: 4
Ball Screw Lead (mm): 6
Stroke (mm): 150
EC4-06-0150B-TS/42P-D00-S3
Days to Ship: 1 - 3 days
Size: 4
Ball Screw Lead (mm): 6
Stroke (mm): 250
EC4-06-0250B-TS/42P-D00-S3
Days to Ship: 1 - 3 days
Size: 4
Ball Screw Lead (mm): 12
Stroke (mm): 100
EC4-12-0100B-TS/42P-D00-S3
Days to Ship: 1 - 3 days
Size: 4
Ball Screw Lead (mm): 12
Stroke (mm): 200
EC4-12-0200B-TS/42P-D00-S3
Days to Ship: 1 - 3 days
Size: 4
Ball Screw Lead (mm): 12
Stroke (mm): 300
EC4-12-0300B-TS/42P-D00-S3
Days to Ship: 1 - 3 days
  • Control device type TSC
    Motor â–¡35
    Ball screw lead [mm] 6

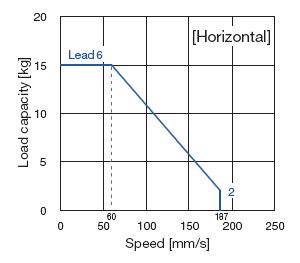

    Max load weight1 [kg] Acceleration and deceleration rate Horizontal 0.3G 15

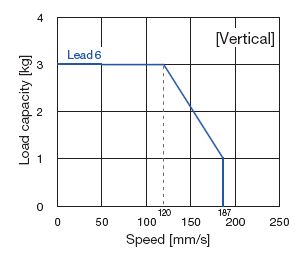

    Vertical 0.2G 3
    Running life2 [km] 5000
    Positioning repeatability [mm] ±0.020
    Lost motion [mm] 0.1
    Rod non-rotational accuracy [°] ±1.5
    1. Only axial loads permissible. Other loads may applied via LM Guide. LM Guide sliding resistance must be considered when making selection.
    2. Under the maximum load capacity (with LM guide), maximum speed, 0.3G for horizontal, 0.2G for vertical
    Stroke [mm]
    (Stroke between mechanical stoppers)
    50 (60) 100 (110) 150 (160) 200 (210)
    Maximum speed [mm/s] Ball screw lead: 6mm 187

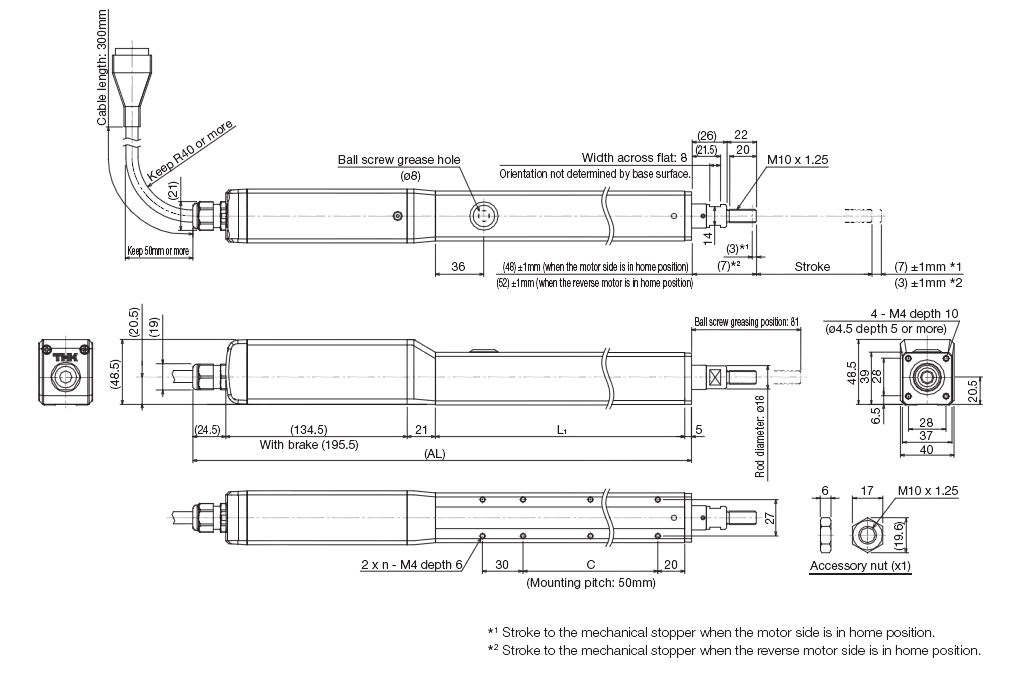

    Dimensions [mm] AL 320 370 420 470
    L1 135 185 235 285
    C 50 100 150 200
    Mounting hole count n 3 4 5 6
    Weight [kg] 1.4 1.6 1.8 2.0
    AFF is the default grease. For more detailed specifications, please download the catalog with the link at the top of the page
  • Control device type TSC
    Motor â–¡42
    Ball screw lead [mm] 6 12

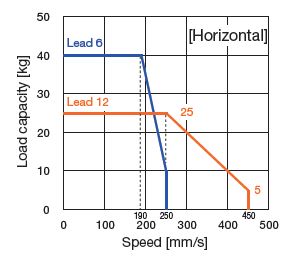

    Max load weight1 [kg] Acceleration and deceleration rate Horizontal 0.3G 40 25

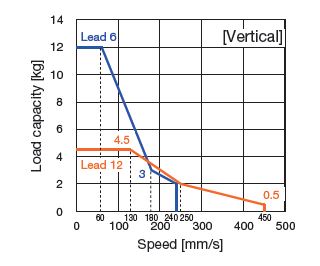

    Vertical 0.2G 12 4.5
    Running life2 [km] 5000
    Positioning repeatability [mm] ±0.020
    Lost motion [mm] 0.1
    Rod non-rotational accuracy [°] ±1.5
    1. Only axial loads permissible. Other loads may applied via LM Guide. LM Guide sliding resistance must be considered when making selection.
    2. Under the maximum load capacity (with LM guide), maximum speed, 0.3G for horizontal, 0.2G for vertical
    Stroke [mm]
    (Stroke between mechanical stoppers)
    50 (60) 100 (110) 150 (160) 200 (210) 250 (260) 300 (310)
    Maximum speed [mm/s] Ball screw lead: 6mm Horizontal: 250, Vertical: 240 230 170
    Ball screw lead: 12mm x 450 x 450 x 340
    Dimensions [mm] AL 350 400 450 500 550 600
    L1 147 197 247 297 347 397
    Weight [kg] 2.3 2.6 3.0 3.3 3.6 4.0
    AFF is the default grease. For more detailed specifications, please download the catalog with the link at the top of the page
Model Size Ball screw lead Stroke Design symbol Control device type Options Motor used Home position Cable length
EC 3 - 06 - 0050 B - TS / 28P - D00 - S3
EC 3 06: 6mm 0050: 50mm B TS: TSC No symbol: None 28P: ⬜28 D00: Motor side S3: 3m
  4 12: 12mm 0100: 100mm
0150: 150mm
0200: 200mm
0250: 250mm
0300: 300mm

The above selections are Online Store standards. If you need a selection that differs from the standard, please contact us at [email protected]
