FT

Single Row

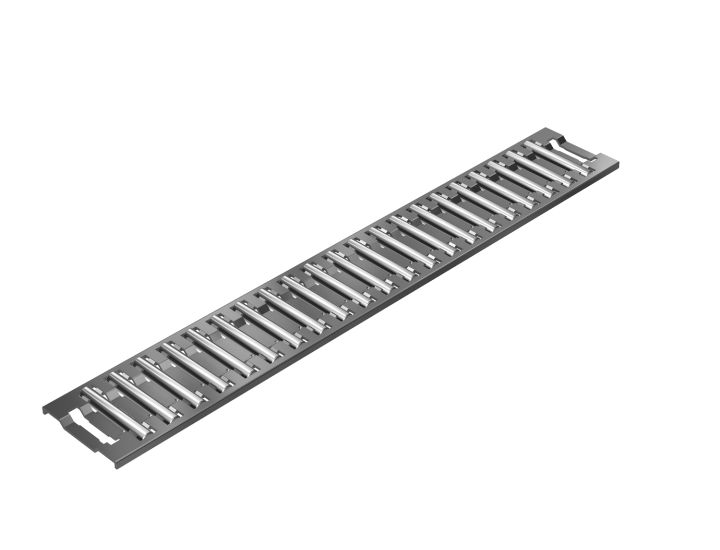

This model has a single row of rollers and are mainly used on the flat surface.
Hide Filters Show Filters
Shopping Options
Days to Ship Clear
Width (mm) Clear
  1. see 7 more see less
In stock
Loading...
*Please contact THK if you need more than available quantity or out of stock items
Attributes Part Number Unit Price Quantity Days to Ship Item Total
Width (mm): 10
FT2010-32L
Days to Ship: 2 - 3 weeks*
Width (mm): 15
FT2515-45L
Days to Ship: 2 - 3 weeks*
Width (mm): 20
FT3020-60L
Days to Ship: 2 - 3 weeks*
FT3525-75L
Out of stock
Out of stock ? Contact us to place an order
Width (mm): 26
FT4026V-150L
Days to Ship: 2 - 3 weeks*
Width (mm): 30
FT4030-150L
Days to Ship: 2 - 3 weeks*
Width (mm): 35
FT4035-150L
Days to Ship: 2 - 3 weeks*
Width (mm): 30
FT5030V-250L
Days to Ship: 2 - 3 weeks*
Width (mm): 38
FT5038-250L
Days to Ship: 2 - 3 weeks*
Width (mm): 43
FT5043-250L
Days to Ship: 2 - 3 weeks*
Width (mm): 54
FT10054-400L
Days to Ship: 2 - 3 weeks*
Width (mm): 80
FT10060V-500L
Days to Ship: 2 - 3 weeks*
Width (mm): 60
FT10080-500L
Days to Ship: 2 - 3 weeks*
Model No. Main dimensions Roller dimensions No.ofrollersZ Basic load rating Mass
Widthb Lengthl LengthB DiameterDa PitchP DynamicC StaticC0
mm mm mm mm mm kN kN g
FT2010-32L103227.8 4 7 5.210.41.9
FT2515-45L15452.511.8 4.75 7 10.925.25.6
FT3020-60L2060315.8 5.51 8 17.442.812.5
FT3525-75L25753.519.8 7 8 27.472.723
FT4030-150L30150425.8 7.3 1855.717673
FT4035-150L35150430.8 7.3 1864.221286
FT4026V-150L261502.82822.8 6 2245.115545
FT5038-250L38250532.8 11 21109387195
FT5043-250L43250537.8 11 21122449200
FT5030V-250L302503.53521.8 7 3378290103
FT10054-400L544001046 15.8 242791000870
FT10080-500L805001071.8 16 2945919001610
FT10060V-500L605007.07152.813.5 353011270870
For more detailed specifications, please download the Product Catalog with the link in the Downloads section of this product page.
Model Size*1 Length*1
FT 2010 - 32L
FT Various Length in millimeters then "L"
Note 1: see the Specifications tab for standard sizes and lengths

Example of combinations

90°V surface Flat surface
Model No. Roller diameterDa Model No. Roller diameterDa
FTW 4030V 2.828 FT 4030 4
FTW 4030V 2.828 FT 4035 4
FTW 5035V 3.535 FT 5038 5
FTW 5035V 3.535 FT 5043 5
FTW 5045 5 FT 10060V 7.071
FTW 5050 5 FT 10060V 7.071
FTW 10070V 7.071 FT 10080 10
Note) The roller diameter (Da) for model numbers containing symbol V at the end represents the value 1/√2 times that of types for the same model number with no symbol. The diameter of the roller to be combined with 90°V surface will be 1/√2 times that of the roller on the flat surface. For example, when using model FT4035 (roller diameter: Ø4) on the flat surface, use model FTW4030V (roller diameter: Ø2.828) on the V surface. Performance of the Flat Roller is significantly affected by the contact state of the upper and lower raceways. You can check the fit before installing the Flat Roller by designing the raceways as indicated in the figure above.
