Basic Type

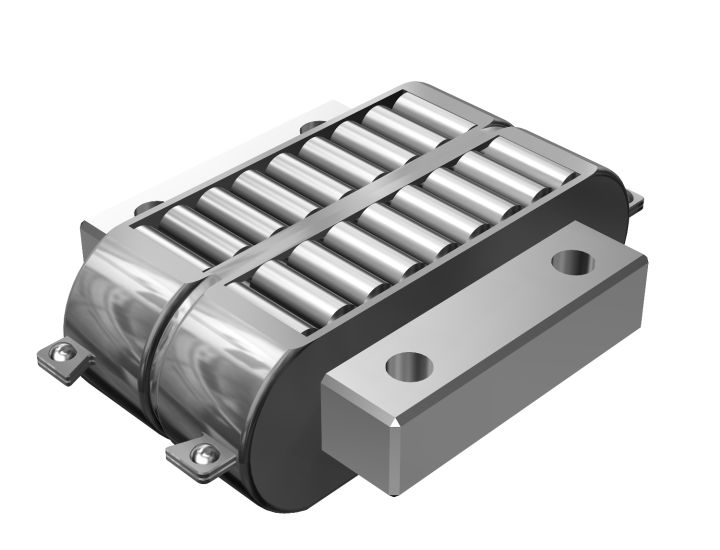

LR: This model is designed to be fit into a groove machined on the mounting surface. By screwing bolts into four holes on the raceway base, it is secured on the mounting surface. (Fixture models SM and SE are also available.)
LR-Z: A lighter type that uses a resin retainer and is designed to be mounted in the same manner as model LR. Since it has a groove for installing a seal, a special rubber seal with a high contamination protection effect can easily be attached. In addition, this model is capable of high-speed traveling at 1 m/s.
Hide Filters Show Filters
Shopping Options
Days to Ship Clear
Dust Protection Seal Clear
Width (mm) Clear
  1. show 1 more show less
In stock
Loading...
*Please contact THK if you need more than available quantity or out of stock items
Attributes Part Number Online Store
Unit Price (USD)
Quantity Days to Ship Item Total
Width (mm): 15
Dust Protection Seal: No Seal
LR1547Z
Days to Ship: 3 - 4 weeks
Width (mm): 15
Dust Protection Seal: With Seal
LR1547ZUU
Days to Ship: 3 - 4 weeks
Width (mm): 20
Dust Protection Seal: No Seal
LR2055Z
Days to Ship: 3 - 4 weeks
Width (mm): 20
Dust Protection Seal: With Seal
LR2055ZUU
Days to Ship: 3 - 4 weeks
Width (mm): 25
Dust Protection Seal: No Seal
LR2565Z
Days to Ship: 3 - 4 weeks
Width (mm): 25
Dust Protection Seal: With Seal
LR2565ZUU
Days to Ship: 3 - 4 weeks
Width (mm): 32
Dust Protection Seal: No Seal
LR3275Z
Days to Ship: 3 - 4 weeks
Width (mm): 32
Dust Protection Seal: With Seal
LR3275ZUU
Days to Ship: 3 - 4 weeks
Width (mm): 40
Dust Protection Seal: No Seal
LR4095
Days to Ship: 3 - 4 weeks
Width (mm): 50
Dust Protection Seal: No Seal
LR50130
Days to Ship: 3 - 4 weeks
Model No. Main dimensions Mass Basic load rating
W10-0.1 Length
L
Thickness
T
Width
W0
A t G l0-0.2 Mounting hole pitch H S Mounting
bolt
l1 B Dynamic
C
Static
C0
mm mm mm mm mm mm mm mm mm mm mm mm g kN kN
LR1547Z1547163011752012233.40.2M36021.639.9
LR2055Z205517.3361285.33018294.50.2M411038.984.9
LR2565Z256520.6451496.63520365.50.1M519055113
LR3275Z327521.65515106.64527445.50.1M532088208
LR409540953068211495535546.60.3M6800150326
LR5013050130428230201278506690.3M81810285577
Note: Using a hexagonal-socket-head type bolt as the mounting bolt marked with * may cause interference.Note: A type with UU seal is not available for model LRA without symbol Z. For more detailed specifications, please download the Product Catalog with the link in the Downloads section of this product page.
Model Size Model Seals
LR 2055 Z UU
LR 1547 No symbol : Metal retainer No symbol : No seals
  2055 Z : Resin retainer UU : Seals attached
  2565
  3275
  4095
  50130
Note: Resin retainer not available for 4095 and 50130 sizes. Metal retainer not available for 1547 to 3275 sizes
